Paravan SPACE DRIVE II - Fig. 18: Unlocking Bolt; Fig. 19: Locking Pin

GeneralInformationPrepareOperateHelpTechnology
Preparation of the vehicle for driving
61
5. Separate the link between steering servo-motor and steering co-
lumn. -> Press and hold the  locking pin. -> Push the unlocking
bolt  downwards. -> Release the  locking pin.

The locking pin must automatically latch!
6. Insert the locking pin into the steering servo-motor -> Keep pres-
sing the inner button of the  locking pin. -> Insert the  locking
pin. -> Release the inner button of the  locking pin.

The inner button must automatically latch!
7. Check that the locking pin has latched. -> Change the position of
the locking pin as required.

Driving without the locking pin is prohibited!

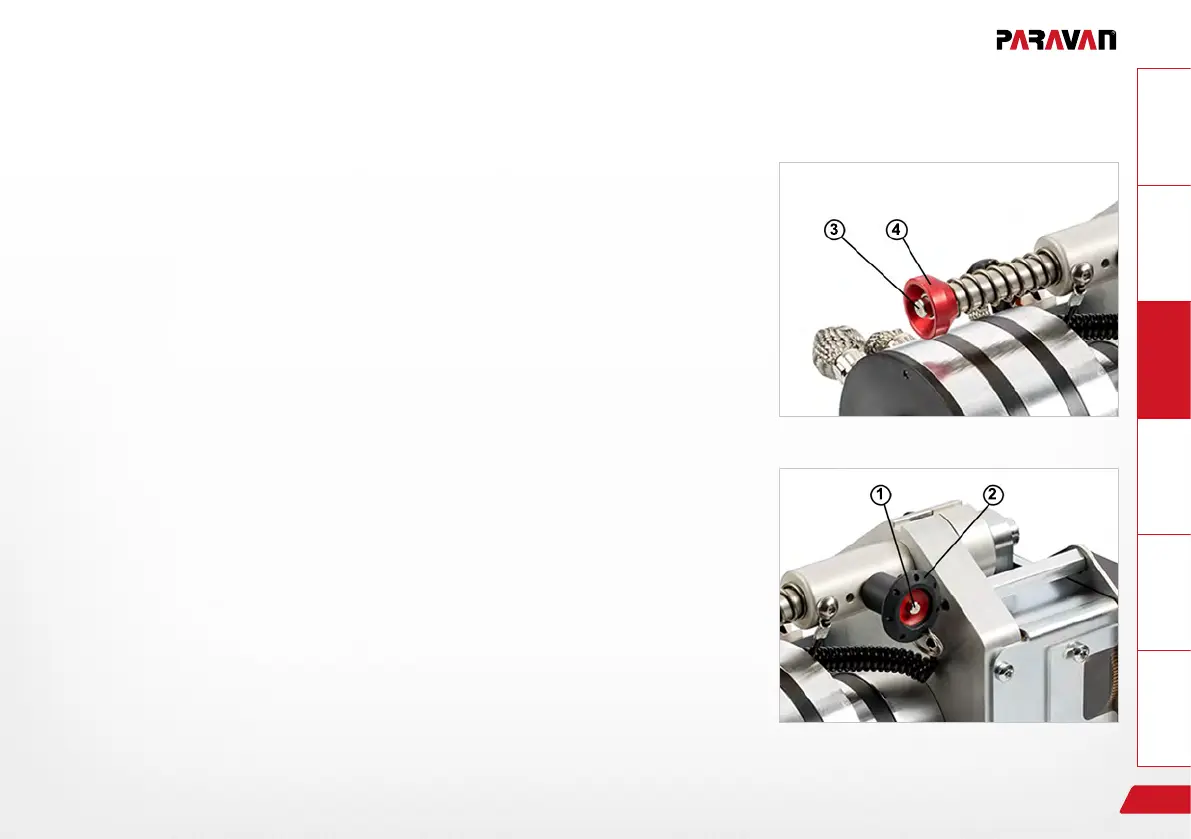

Fig. 18: Unlocking bolt
Fig. 19: Locking pin
