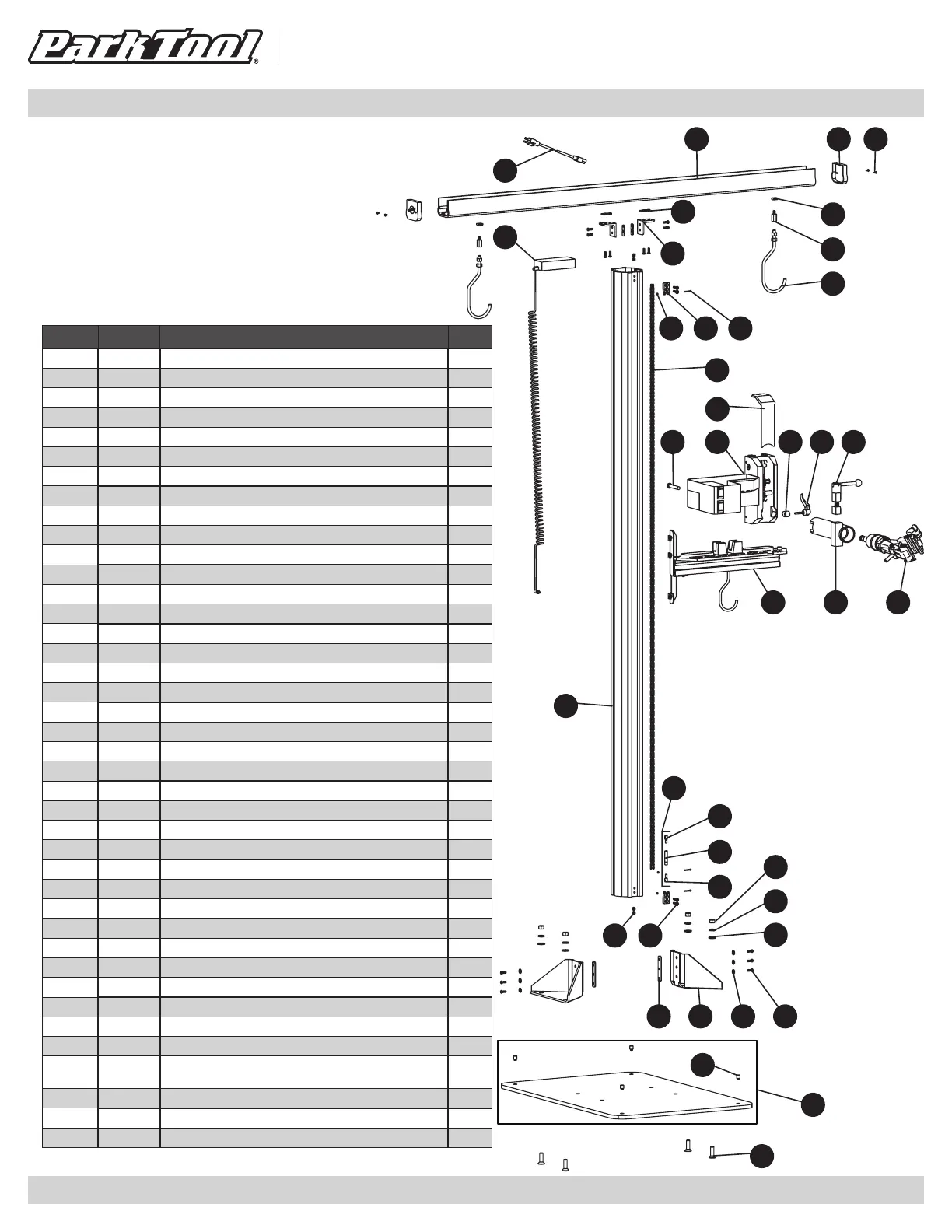

PRS-33.2 Parts / Pièces / Teile / Partes
1328
15
22
16
1
17
18
11
37
10
38
33
39
40
2
30
29
8
26
24
25
23
19
12
9
21
31
5
20
32
1436
35343
4
7
27
6
Ref. # Part # Description Qty.
1 2102-2 Upright Support 2
2 2100 Upright 1
3 2105.2 Carriage Assembly (see page 2) 1
4 2119 Carriage Cover 1
5 128B Hex Head Bolt 7/16 x 2.5” 1
6 100-3D Clamp 1
7 2127 Horizontal Tube 1
8 2103 Cross Bar 1
9 2106-2 Cross Bar Support 2
10 2107-2 End Cap 2
11 1948-2 End Cap Screw 4
12 2108-8 Offset T-Nut M6x1.0 8
13 2109 -14 Button Head Socket Cap Screw M6 x 1.0 x 18 14
14
2104-2 Chain Retainer 2
15 2111- 4 Flat Head Socket Cap Screw M12 x 1.75 x 40 4
16 2112- 4 Flat Washer M12 4
17
2113 - 4 Lock Washer M12 4
18 2114 - 4 Hex Nut M12 x 1.75 4
19 2115 - 4 Flat Head Socket Cap Screw M6 x 1.0 x 25 4
20 1157-3 Socket Head Cap Screw M3 x 25 3
21 2150 Chain 1
22 2152-2 Triple T-Nut 2
23 2153 Chain Tensioning Assembly (24,25,26) —
24 2154 Chain Tensioner, Adjusting Barrel 1
25 2155 Chain Tensioner, RH Thread 1
26 2156 Chain Tensioner, LH Thread 1
27
180 Lock Block Assembly 1
28 1556-4 Washer M6 6
29
135-33 Base (Sold Separately) 1
30 2110 - 4 Socket Head Set Screw (included with 135-33) 4
31 2147 Power Supply / Coil Cord Assembly 1
32 2148 Power Cord 1
33 290 Nylon Insert Locknut M6 x 1.0 4
34 2151 Brake Wedge 1
35 929-33 Quick Release 1
36 732-2B Nylon Insert Locknut M3 3
37
PRS-
33TT
Tool Tray Assembly 1
38 470 Machine Thread Hook 2
39 2142-2 Thread Adaptor 2
40
2143-2 Slide In T-Nut M8 2
© 2019 Park Tool Co.
PARK TOOL® and the color BLUE are registered trademarks of Park Tool Co.
09/19
PRS-33.2 PART NUMBERS
