Park Tool PRS-33.2 - Page 17

5115 Hadley Ave. N., St. Paul, MN 55128 (USA) www.parktool.com
PARK TOOL CO.

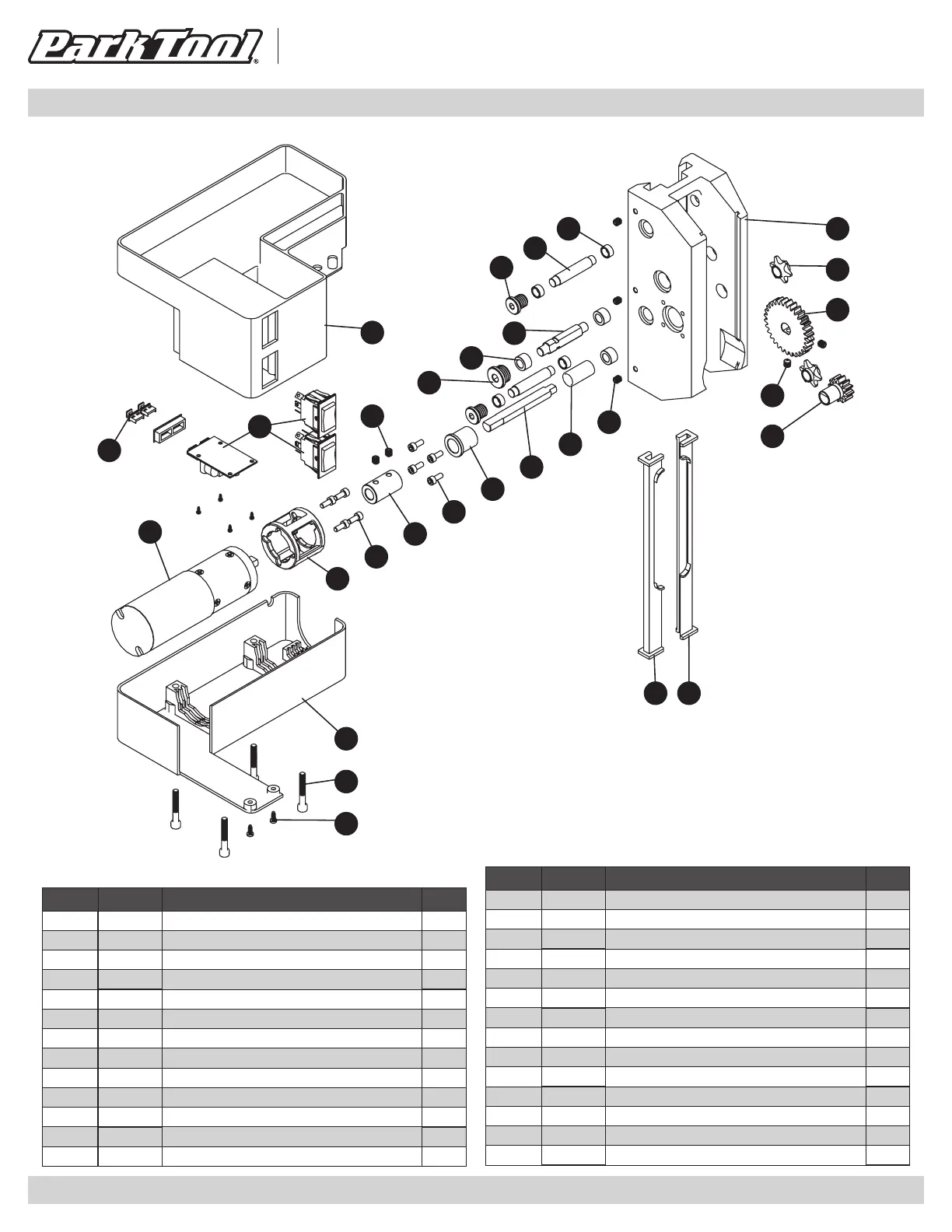

Ref. # Part # Description Qty.
41 2120 Carriage 1
42 2121-4 Idler Shaft Bearing 4
43 2122-2 Idler Sprocket Shaft 2
44 2123-2 Idler Sprocket 2
45 2126-2 Drive Shaft Bearing 3
46 2124 Drive Shaft 1
47 2129 Carriage Bearing, Right 1
48 2130 Carriage Bearing, Left 1
49 2131 Drive Gear and Sprocket 1
50 2133 Drive Gear Shaft 1
51 2132 Drive Gear 1
52 2137 Flanged Bearing 1
53 2134 Motor Mount 1
2105.2 PART NUMBERS
PRS-33.2 Parts / Pièces / Teile / Partes
4748
63
46
41
65
42
64
44
49
43
51
45
50
57
59
52
61
58
55
65
56
58
53
66
54
67
60
62
© 2019 Park Tool Co.
PARK TOOL® and the color BLUE are registered trademarks of Park Tool Co.
09/19
Ref. # Part # Description Qty.
54 2135 Motor 1
55 2136 Shaft Coupling 1
56 2139.2 Motor Enclosure 1
57 2144 Drive Plug 1
58
2141-8
Socket Head Cap Screw, M5 x 0.8 x 16
8
59 2145 Idler Plug 2
60 2138.2 Work Tray Top 1
61 541 Socket Head Cap Screw, M6 x 40 4
62 2149.2 Wiring Harness (includes wiring & both switches) 1
63 609 Set Screw, M6 x 8 mm 3
64 2146 Drive Gear Spacer 1
65 2157-2 Hex Socket Set Screw, M6 x 1.0 x 8 4
66 2125-2 Plastic Thread Forming Screw 2
67 2140D-2 USB Dust Cover 2
