Parker Hiross Hypercool Series User Manual

20 ADP004-075

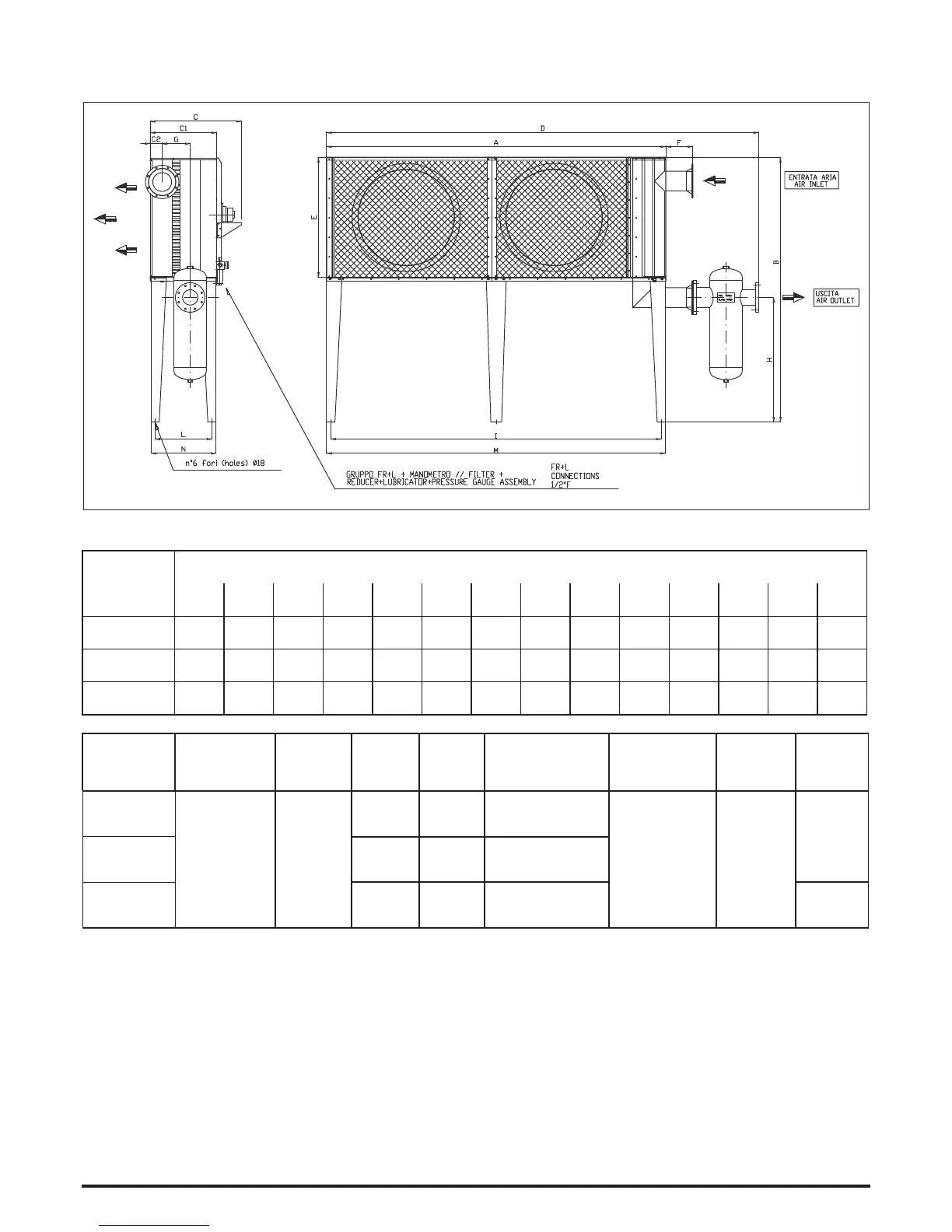

Fig. 4b - Overall dimension A ercooler + Separator SFH
ADP048 - 075
Model
dimensions (mm) - Fig. 4b
A B C D C1 C2 E F G H I L M N
ADP048 2870 2239 770 3650 569 103 1017 230 239 1051 2800 496 2866 562
ADP064 2870 2239 770 3650 569 103 1017 230 239 1051 2800 496 2866 562
ADP075 2870 2239 770 3650 569 103 1017 230 239 1051 2800 496 2866 562
Model air in/out
FR+L
connections
weight
(kg)*
volume
(dm
3
)*
nominal air  ow
m
3
/min (1)
pneumatic motor
air consumption
m
3
/min (2)
air pressure
(bar)
matching
separator
ADP048
 anged
PN16 DN150
(UNI 2278-67)
1/2" F
391 64.9 48
616
STH067
ADP064 429 73.2 64
ADP075 476 81 75 STH088
* Weight and volume are for a ercooler only; for separator see respective manual.
(1) 7 barg; 120°C inlet; air suction conditions: 0 m.a.s.l., 20°C, 50%; di erence between ambient and air outlet = 10°C.
(2) Data valid for 1400 rpm.
