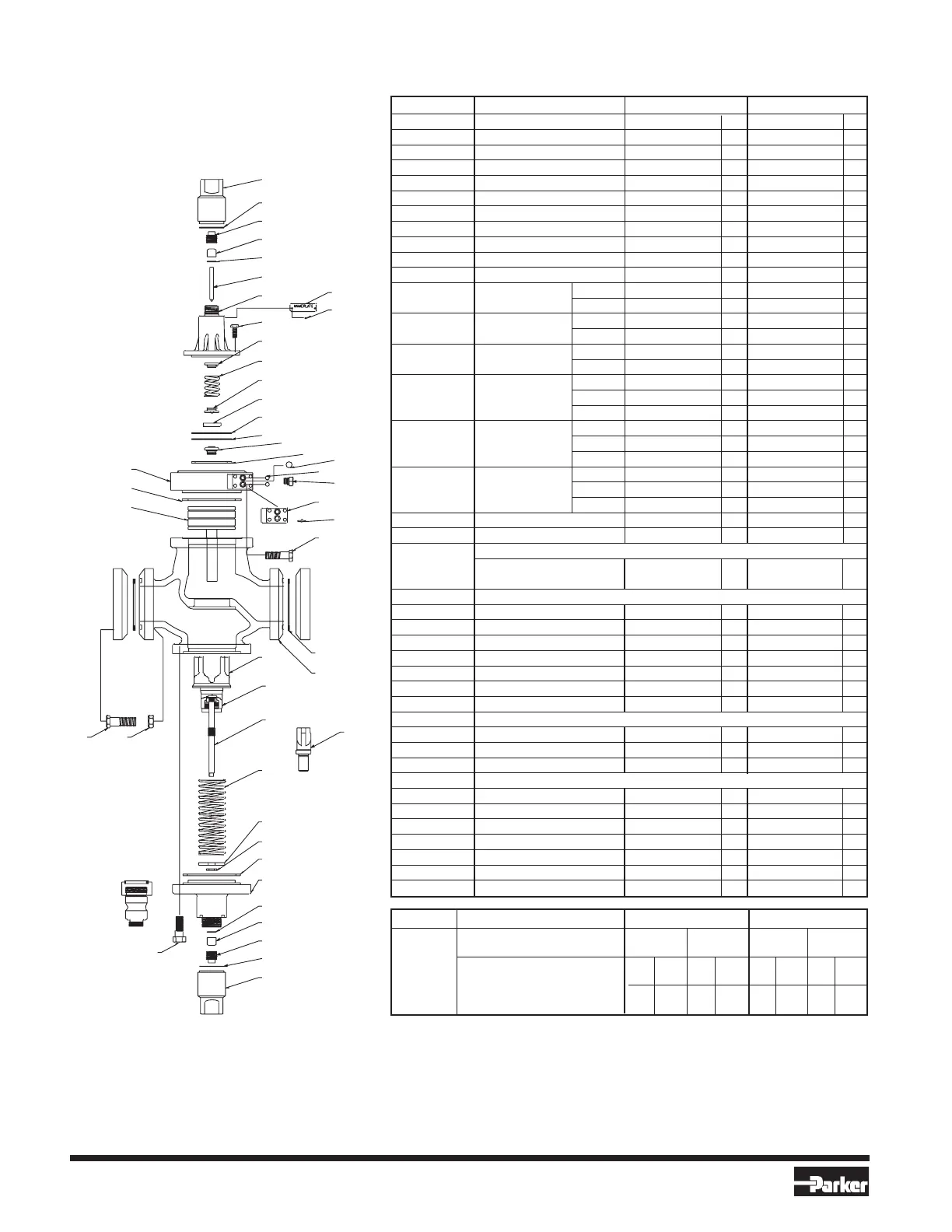

Parker ADAPTOMODE A4AS - Page 12

Refrigerating Specialties Division
12
20mm (3/4") 25mm (1")
Item No. Description Kit No. Oty Kit No. Qty
37 “O” Ring Only Avail. with Kit 1 Only Avail. with Kit 1
38 Cover, Bottom Only Avail. with Kit 1 Only Avail. with Kit 1
40 Washer, Flat Only Avail. with Kit 1 Only Avail. with Kit 1
41 Packing, Stem Only Avail. with Kit 1 Only Avail. with Kit 1
37,38,40,41 Cover Kit 200761 1 200761 1
42 Nut, Packing Only Avail. with Kit 1 Only Avail. with Kit 1
40-42 Packing Kit, Stem 202100 1 202100 1
43 Gasket Only Avail. with Kit 1 Only Avail. with Kit 1
44 Seal Cap Only Avail. with Kit 1 Only Avail. with Kit 1
43,44 Seal Cap, Kit 202110 1 202110 1
33-38, Full Cap. Bottom A4A 202010 1 202011 1
40-44 Assembly Kit A4AK 202018 1 202019 1
33-38, 50% Cap. Bottom A4A 202347 1 (*) 1
40-44 Assembly Kit A4AK 202348 1 (*) 1
33-38, 17% Cap. Bottom A4A 202346 1 (*) 1
40-44 Assembly Kit A4AK Not Available Not Available
3-6, 12-19, Full Cap. Repair Rge. A 202041 1 202044 1
29, 30, 33-37, Kit, Reg. (All Rge. V 202040 1 202043 1
40-42 except A4AK) Rge. D 202042 1 202045 1
3-6, 12-19, 50% Cap. Repair Rge. A 202352 1 (*) 1
29-30, 33-37, Kit, Reg. (All Rge, V 202354 1 (*) 1
40-42 except A4AK) Rge. D 202353 1 (*) 1
3-6, 12-19, 17% Cap. Repair Rge. A 202349 1 (*) 1
29-30, 33-37, Kit, Reg. (All Rge. V 202351 1 (*) 1
40-42 except A4AK) Rge. D 202350 1 (*) 1
112 Cover, Top Only Avail. with Kit 1 Only Avail. with Kit 1
29,112 A4AR Cover Kit 200680 1 200680 1
2,16(2),19(2), Gasket Kits (includes complete set of gaskets plus “O” Rings If applicable)
25, 26, 29, 37, Gasket Kit A4/S4 202112 202112
43,45(3)
Indv’I Gaskets, "O" Rings & Valve Pk’g sold & pkgd in qtys only as Indicated.
29 Gasket Pkg, Adapter 202406 5 202406 5
37 “O” Ring/Gasket Pkg. Bottom Cap 202384 3 202384 3
43 Gasket Pkg, Seal Cap (Bottom) 202408 12 202408 12
2 Gasket Pkg, Seal Cap (Top) 202408 12 202408 12
45 Gasket Pkg, Flange 202079 12 202079 12
4 Packing Pkg, Stem (Top) 202478 25 202478 25
41 Packing Pkg, Stem (Bottom) 202478 25 202478 25
Bolt Package Kits
11 Bolt Package, A4A Bonnet 202246 8 202246 8
31 Bolt Package, Adapter 202248 8 202249 8
39 Bolt Package, Bottom Cap Not Required Not Required
Flange Bolt Package Includes bolts and nuts; no gaskets
46 Nut 5/8"-11 2 5/8"-11 2
47 Bolt 5/8"-11x3" 2 5/8"-11x3" 2
46,47 Bolt Kit, Flange 201585 1 201585 1
50,52-54 Moduplate Kit ‘’MP” 200518 200518
52 Moduplate Only Avail. with Kit 1 Only Avail. with Kit 1
54 O-Ring, “B” Only Avail. with Kit 1 Only Avail. with Kit 1
50 O-Ring, “S”, “D” Only Avail. with Kit 2 Only Avail. with Kit 2
Repair Kits for A4AS, A4AB, A4AD and A4AZ
* All Plug Kits and Bottom Assembly Kits for 3/4” Port Size Valves can be used in the 1” Port Size Valves for reducing capacity.
Flange Kit FK-25 FK-25
Specify Flange, Style, FPT, SW, ODS FPT, SW, ODS
Connection, Size WN WN
Kit includes 2 Flanges only Std Also Std Also Std Also Std Also
Connections Available Avail. Avail. Avail. Avail.
