Parker ADAPTOMODE A4AS - Page 14

Refrigerating Specialties Division
14
Item Description Oty. Kit Number
1-2 Seal Cap Kit 1 202110
3-5 Packing Kit/Stem 1 202100
3-6, Spring/Stem Kit Rge. A/V 1 202006
12-15 Rge. D 1 202007
1-6,8 Bonnet/Spring Kit Rge. A/V 1 202008
11-16 Rge. D 1 202009
12-14, Spring Kit, Bonnet Rge. A/V 1 202481
16 Rge. D 1 202482
16,17 Diaphragm Kit Rge. A/V 1 200770
19 Rge. D 1 200771u
u Rge. D Diaphragm Kit has two (2) Diaphragms
16-19 Seat Kit, Pilot Rge. A 1 202001
Rge. V 1 202004
Rge. D 1 202003
48 Body Not available
separately
49-50 Bolt/”O” Ring Kit Bolts 4 201572
“O”Ring 2 onlyAvail.w/Kit
Note: Pressure Pilot A2D2 used on main valve sizes 3/4" to 2" port.
Pressure Pilot A2D used on main valve sizes 2-1/2" to 4" port.
Repair Kits indicated for the A2D2 and A2D are common parts used on the
integral pressure pilot mounted on the A4A Series Regulator.
Repair Parts Kits for A2D2 and A2D Modular Pressure Pilots
Spare or Additional A2D2 and A2D
Repair Kit Packages
Note: The following items are included in the above Kits in the exact
numbers as required for field repair. If additional “O” Rings, Gaskets or
Stem Packing are desired for spares or future use, order from the
following listing:
Kit Package
Item Description Oty. Number
2 Gasket Pkg./Seal Cap 12 202408
50 “O”Ring Pkg/Moduplate 12 202424
4 Stem Packing, Pkg. 25 202478

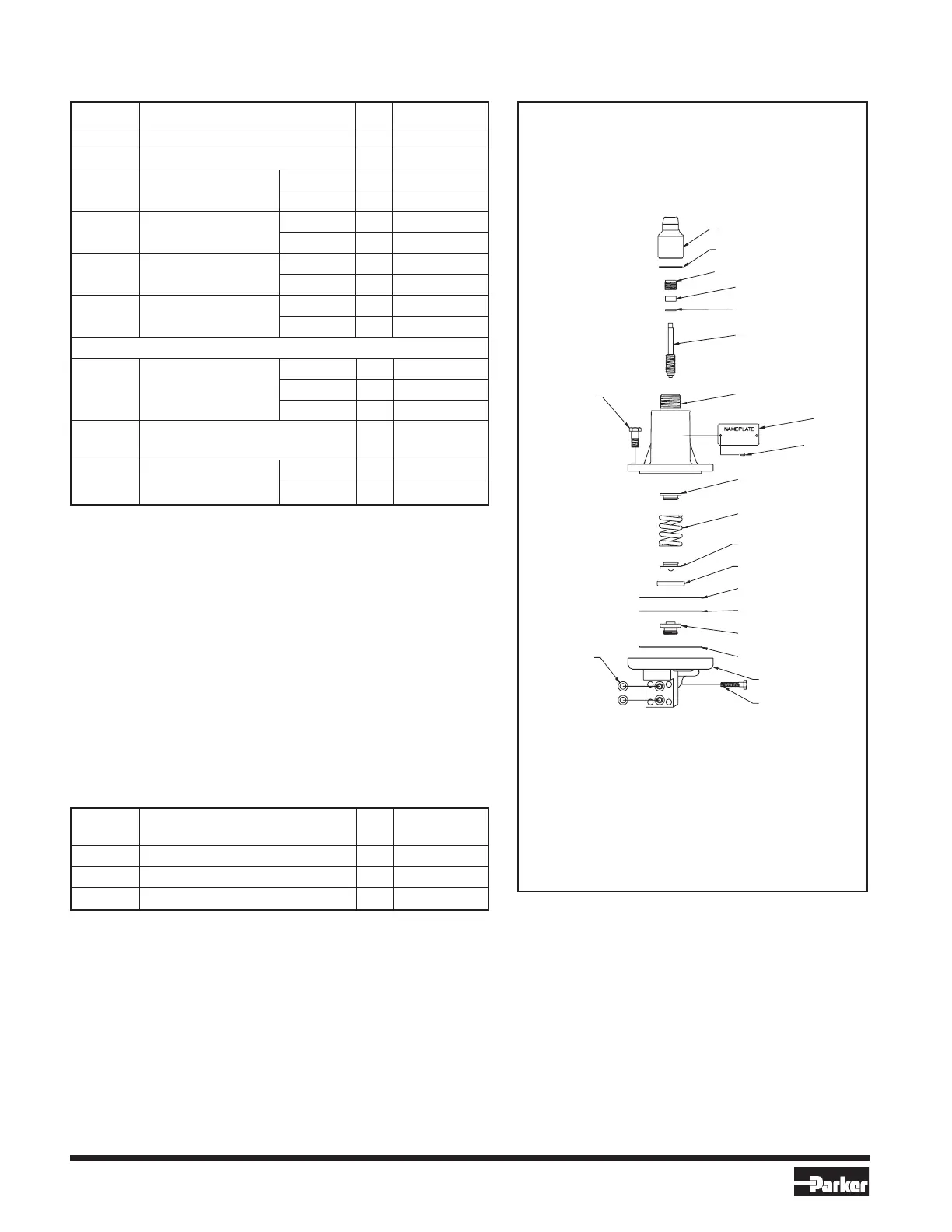

A2D2, A2D MODULAR
PRESSURE PILOT
A2D2 Port Sizes 20-50mm (3/4" - 2")
A2D Port Sizes 65-100mm (2½" - 4")
1
2
3
4
5
6
11
8
9
10
12
13
14
15
16
17
18
19
48
49
50
