Compax3 device description
28 192-120102 N7 - February 2004

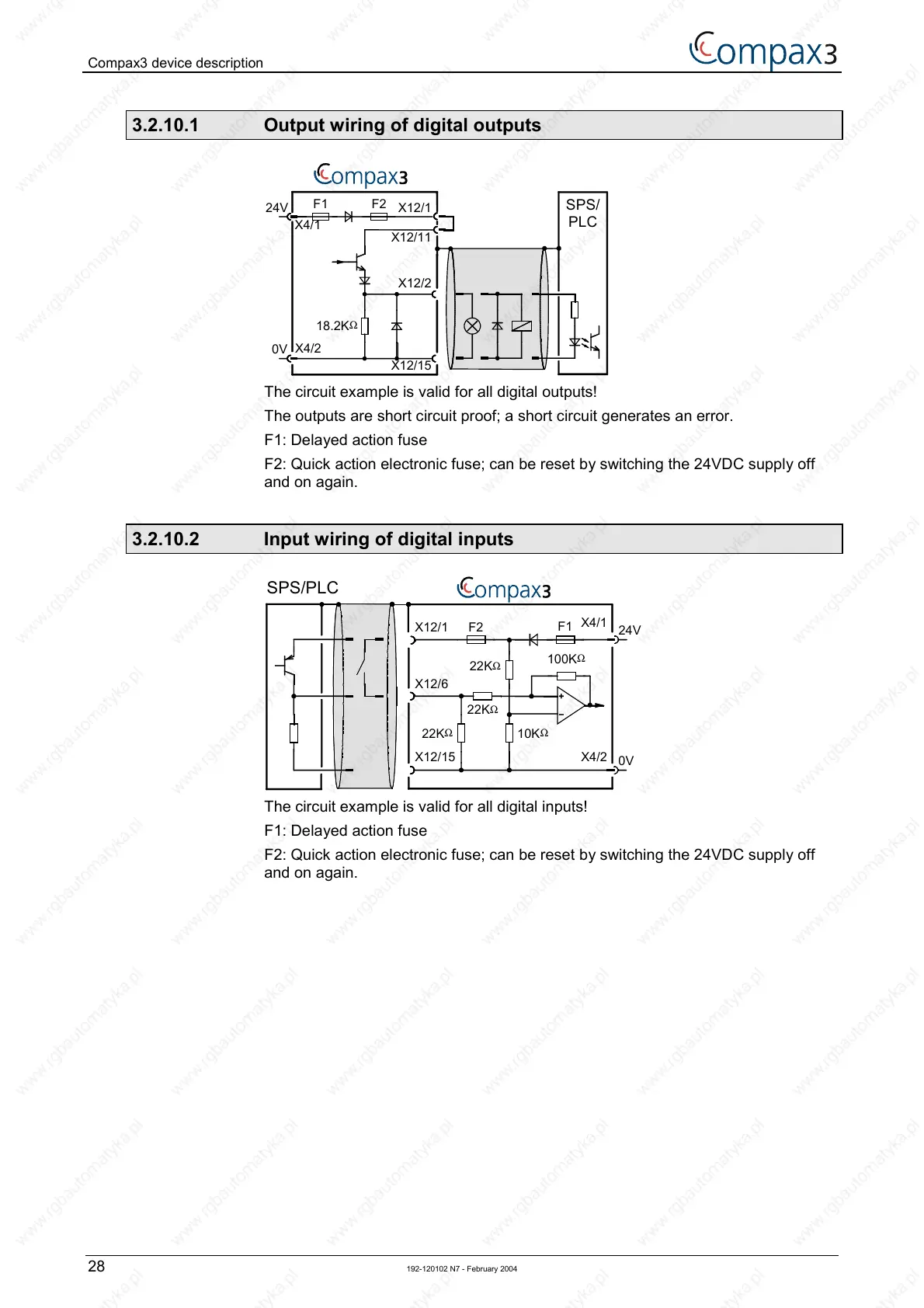

3.2.10.1 Output wiring of digital outputs
24V
0V
X12/2
18.2K
X12/15
X12/1
X12/11
SPS/
PLC
X4/1
X4/2
F2
F1
The circuit example is valid for all digital outputs!
The outputs are short circuit proof; a short circuit generates an error.
F1: Delayed action fuse
F2: Quick action electronic fuse; can be reset by switching the 24VDC supply off
and on again.
3.2.10.2 Input wiring of digital inputs
24V
0V
100K
X12/1
X12/6
X12/15
10K
22K
22K
22K
SPS/PLC
X4/1
X4/2
F2
F1
The circuit example is valid for all digital inputs!
F1: Delayed action fuse
F2: Quick action electronic fuse; can be reset by switching the 24VDC supply off
and on again.
