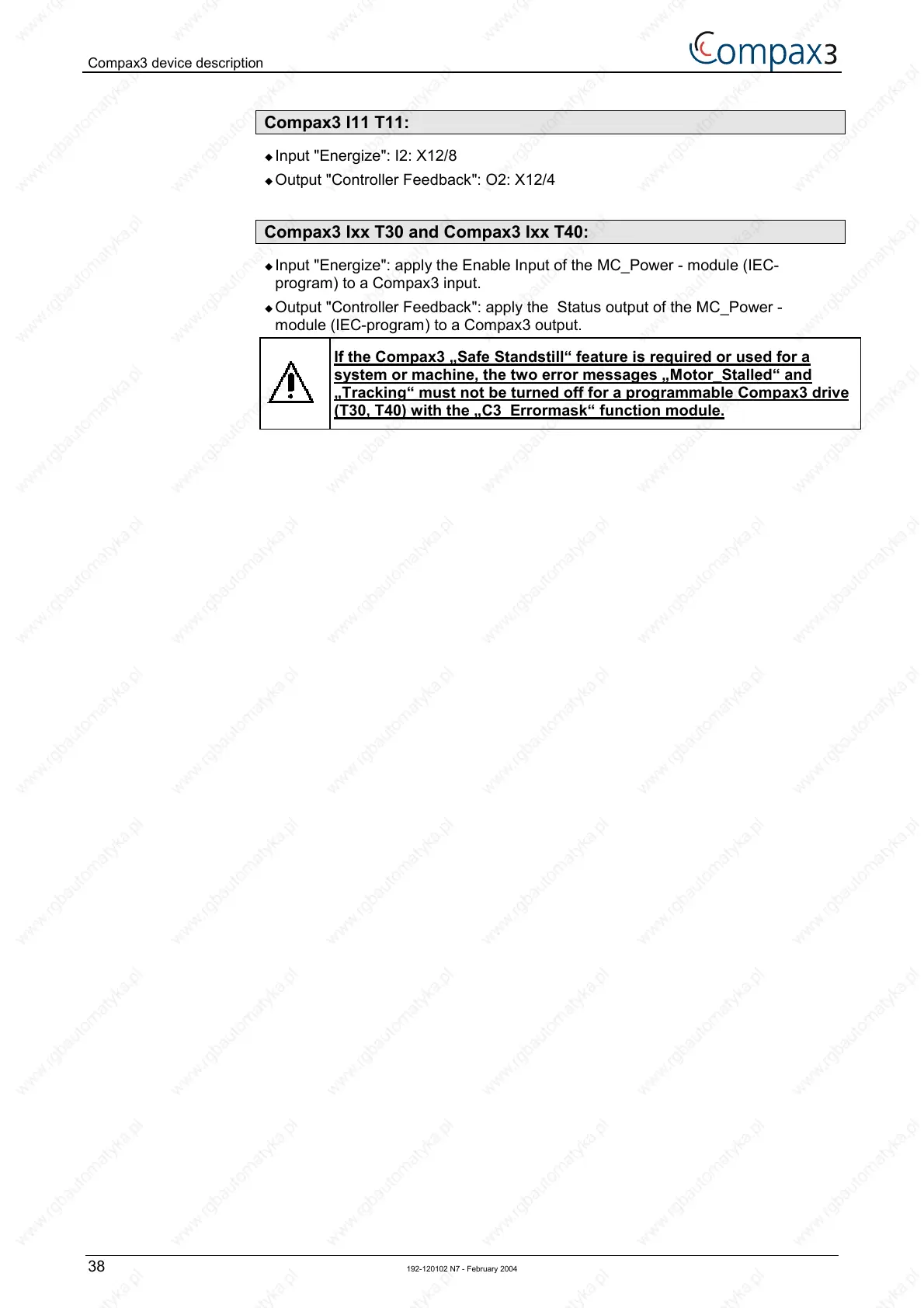

Compax3 device description
38 192-120102 N7 - February 2004
Compax3 I11 T11:
! Input "Energize": I2: X12/8
! Output "Controller Feedback": O2: X12/4
Compax3 Ixx T30 and Compax3 Ixx T40:
! Input "Energize": apply the Enable Input of the MC_Power - module (IEC-
program) to a Compax3 input.
! Output "Controller Feedback": apply the Status output of the MC_Power -
module (IEC-program) to a Compax3 output.
If the Compax3 „Safe Standstill“ feature is required or used for a
system or machine, the two error messages „Motor_Stalled“ and
„Tracking“ must not be turned off for a programmable Compax3 drive
(T30, T40) with the „C3_Errormask“ function module.

Parker Compax3 S150 V4 Specifications

General

Output Current	150 A
Control Type	Digital
Series	Compax3
Model	S150 V4
Enclosure Rating	IP20
Communication Interfaces	CANopen, RS-232, RS-485
Feedback Options	Resolver
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
Relative Humidity	5 to 95% non-condensing
Operating Temperature	0 to +45 °C (32 to 113 °F)
