Parker ETH - Lubrication Intervals and Amounts

Parker EME
Maintenance
192-550004N2 ETH ATEX November 2013 19

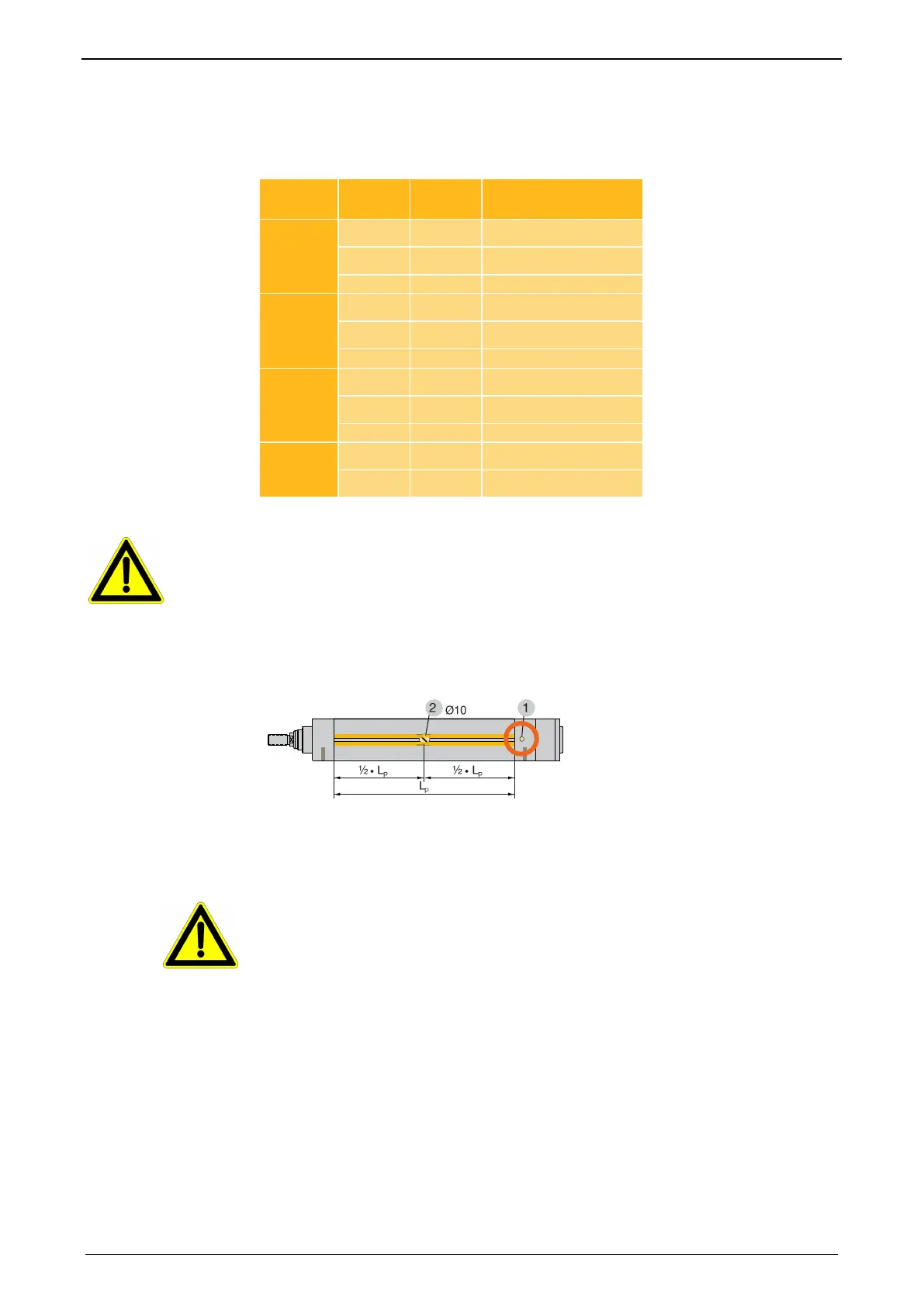

2.2 Lubricating intervals and amount of lubricant for ATEX
ETH electro cylinders
Screw
Interval
Amount of lubricant
ETH032
M05
80 km
1.3 cm
3
M10
160 km
1.6 cm
3
M16
250 km
2.1 cm
3
ETH050
M05
80 km
1.6 cm
3
M10
160 km
1.9 cm
3
M20
320 km
2.7 cm
3
ETH080
M05
80 km
3.1 cm
3
M10
160 km
4.4 cm
3
M32
510 km
7.8 cm
3
ETH100
M10
80 km
14 cm
3
M20
160 km
17 cm
3
Lubricant
Do only use "Klüber NBU15" lubricating grease for standard
cylinders!
For applications in food related areas, "Klübersynth UH1 64-62" grease is used (customized version).
2.2.1. Greasing via central lubrication port (standard)
1:
Central lubrication (standard)
2:
Central lubrication (Option)
 Make sure that all external stops are removed.
 Retreat thrust rod completely so that it touches the rear stop.
 Pass internal buffer by 0.5 mm.
ATTENTION!
Ensure by means of control, that the internal buffer is not passed by more than
0.5 mm!
 This is the lubricating position.
 Use a suitable pipe for the funnel type lubricating nipple, Type D1a4 DIN3405:
Beaked nozzle.
 Place the pipe orthogonally onto the lubricating nipple and press.
 Use the defined amount of lubricant.
 The amount of lubricant applied can be defined by the number of pump strokes.
Pump the stated amount of grease onto a balance, while counting the pump
strokes.
