Assembly
Service Manual
HTG Series Integrated Hydrostatic Transmission
HY13-1528-001-M1/US—HTG Series Service Manual
Reassembly
Step
InstructionIllustration

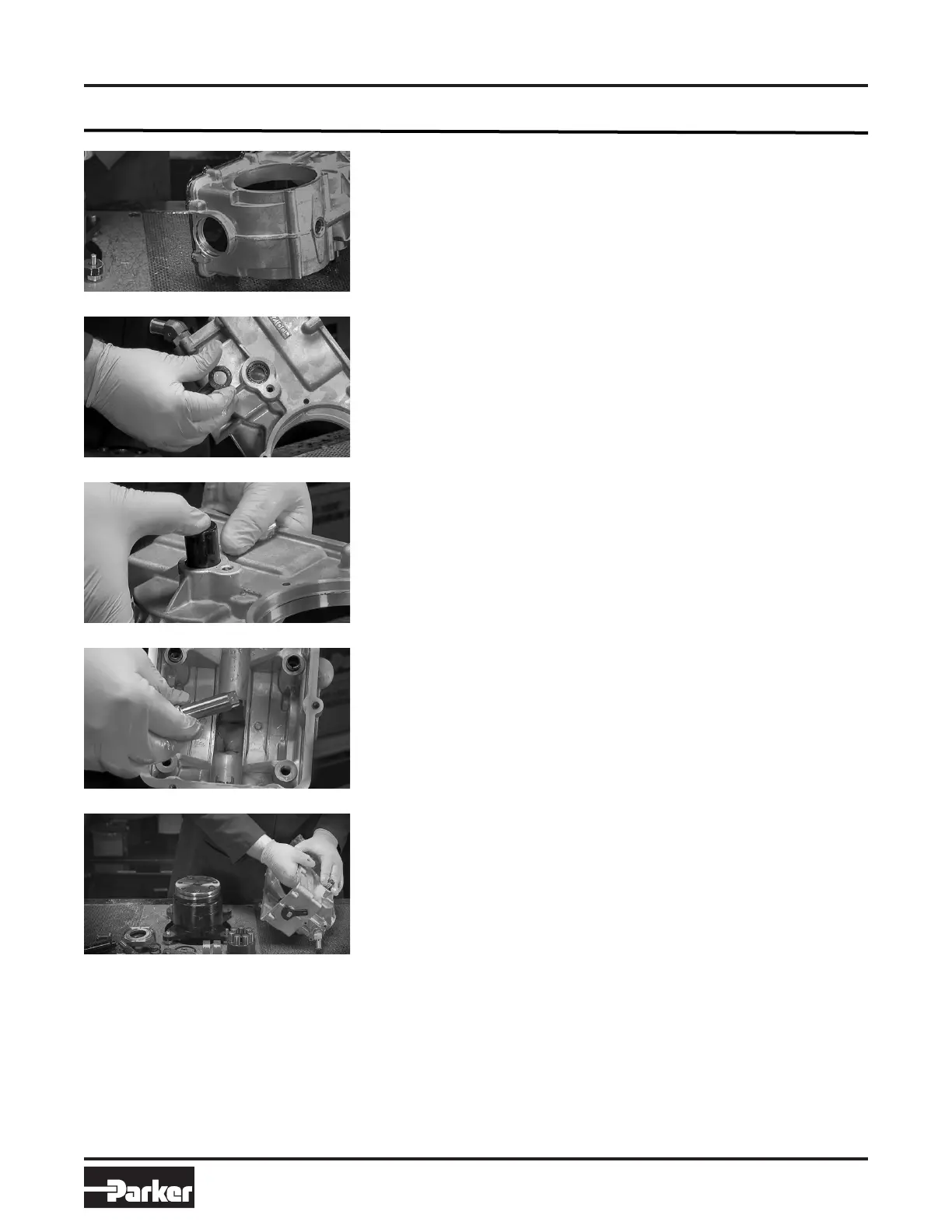

Begin Reassembly of HTG
Motor
Start with reassembly of the
pump section.
Starting with the top housing, clean all parts
before reassembly.
Install trunnion arm seal.
Seat trunnion arm seal.
Install trunnion arm.
With a 5/8” socket, gently pressonsocket
until seal is seated in housing.
Using nger pressure, push seal into place.
1. Lightly oil trunnion arm with HT-1000™
oil.
2. Insert from the inside of the pump hous-
ing.
3. Push the trunnion ush to inner top
housing.
Go to Next Step
