Disassembly & Inspection
Service Manual
HTG Series Integrated Hydrostatic Transmission
HY13-1528-001-M1/US—HTG Series Service Manual
Disassembly and Inspection
Step
InstructionIllustration

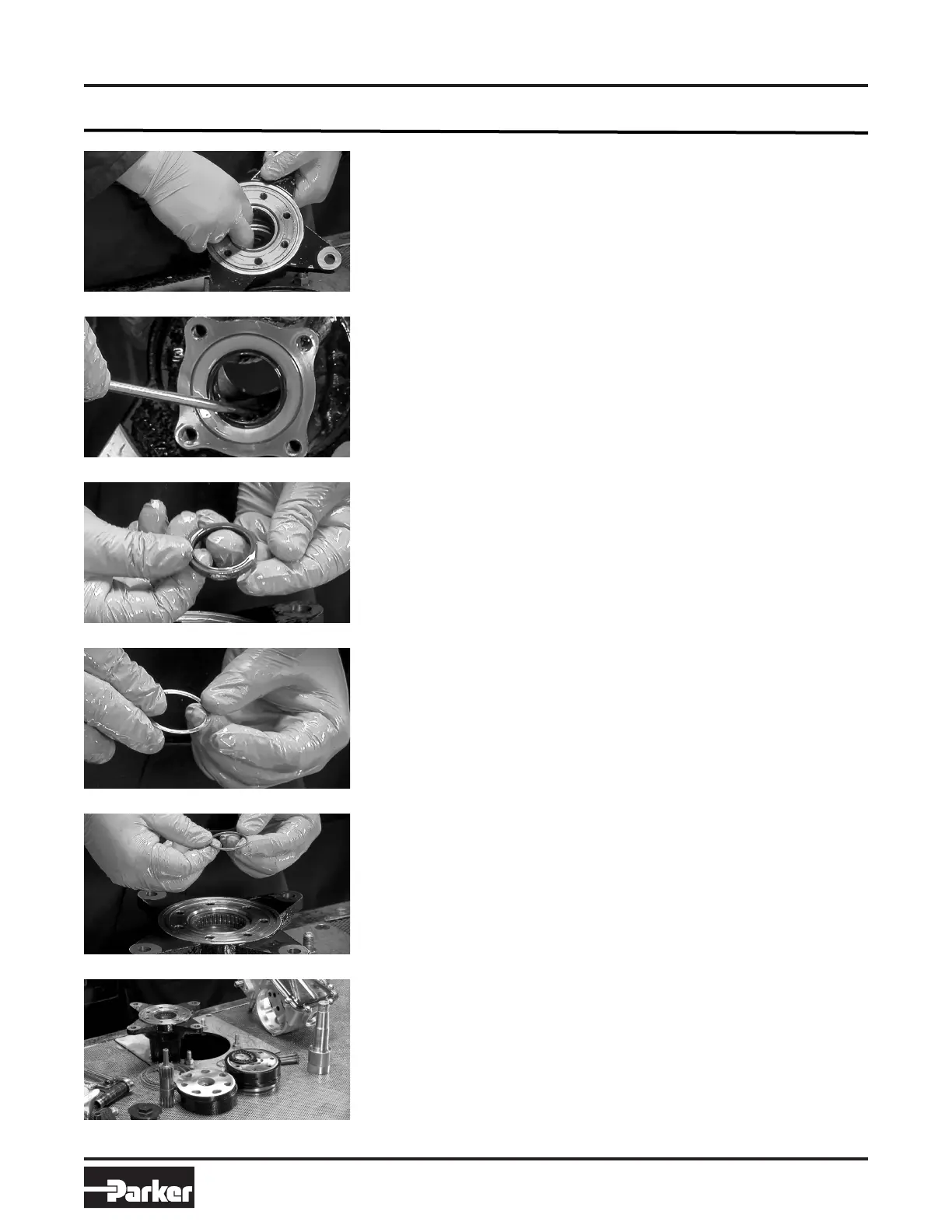

Removethe shaft seal
3. Use a screwdriver to pry shaft seal loose
from housing groove on the front side of
the motor.
Be careful not to scratch or damage the
seal groove or motor parts.
1. Hold the motor on its side.
2. Using ngers, move thrust package on
its side, vertical to the motor.
4. From the back side of the motor, remove
the shaft seal.
5. Remove the backup washer.
6. Remove the backup ring.
HTG Disassembly Complete
