Parker Parflex User Manual

Parker Hannifin Corporation
Parflex Division
Ravenna, Ohio
Bulletin No. 4660-PGP2T
8
Parflex
®
Flexible Gas Piping System
Design and Installation Guide
Section 2.0 System Components

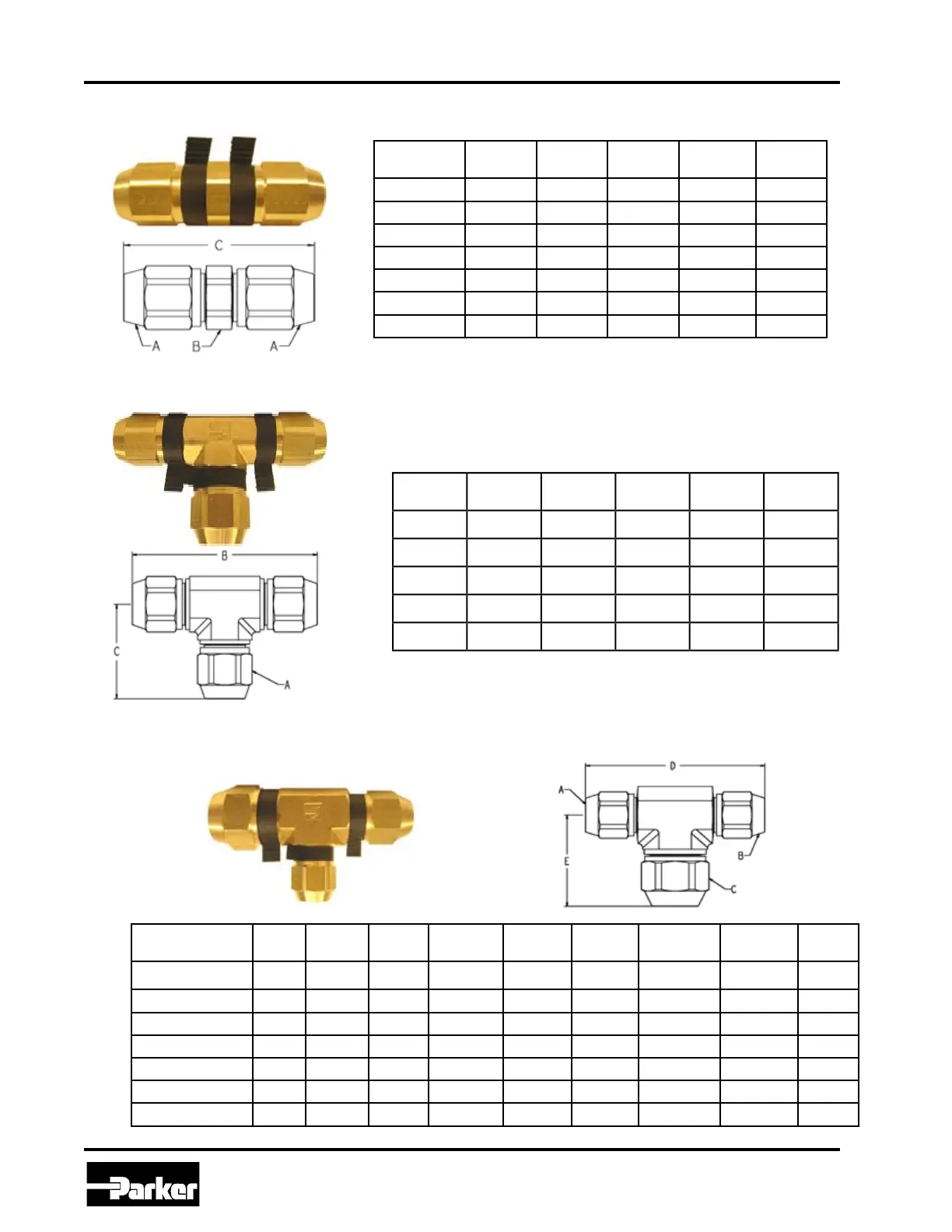

Tee Fitting — Tube to Tube Tee Fitting
Part No. Tube Size Nut Hex Assembled
Length
Tee Drop
Length
Weight
A B C (lbs.)
2TFM-6B 3/8" 7/8" 3.87" 1.94" .63
2TFM-8B 1/2" 1-1/8" 4.21" 2.11" 1.00
2TFM-12B 3/4" 1-7/16" 4.87" 2.44" 1.64
2TFM-16B 1" 1-3/4" 4.81" 2.41" 2.30
Straight Coupling — Tube to Tube Fitting
Part No. Tube Size Nut Hex Body Hex Assembled
Length
Weight
-- A B C (lbs.)
2UFM-6B 3/8" 7/8" 7/8" 2.61" .27
2UFM-8B 1/2" 1-1/8" 1-1/8" 2.83" .55
2UFM-12B 3/4" 1-7/16 1-3/8" 3.19" .68
2UFM-16B 1" 1-3/4" 1-5/8" 3.23" .88
2UFM-20B 1-1/4" 2-1/4" 2-1/8" 3.86" 2.80
2UFM-32B 2" 3-1/4" 3" 5.00" 5.50
Part No. Tube
Size
Tube
Size
Tube
Size
Nut Hex Nut Hex Nut Hex Assembled
Length
Tee Drop
Length
Weight
A B C A B C D E (lbs.)
2TFM-12-8-8B 1/2" 1/2" 3/4" 1-1/8" 1-1/8" 1-7/16 4.21" 2.44" 1.47
2TFM-16-8-8B 1/2" 1/2" 1" 1-1/8" 1-1/8" 1-3/4" 4.41" 2.41" 1.55
2TFM-12-12-8B 3/4" 3/4" 1/2" 1-7/16 1-7/16 1-1/8" 4.87" 2.56" 1.60
2TFM-16-12-8B 1" 3/4" 1/2" 1-3/4" 1-7/16 1-1/8" 4.66" 2.21" 2.06
2TFM-16-12-12B 1" 3/4" 3/4" 1-3/4" 1-7/16 1-7/16 4.66" 2.26" 2.18
2TFM-16-16-8B 1" 1" 1/2" 1-3/4" 1-3/4" 1-1/8" 4.81" 2.21" 2.10
Transition Brass Tee — Tube to Tube Transition Tee Fitting
