Catalog HY13-PMD500-SM/US
PGP/PGM 500 Series
Gear Pumps & Motors Service Manual

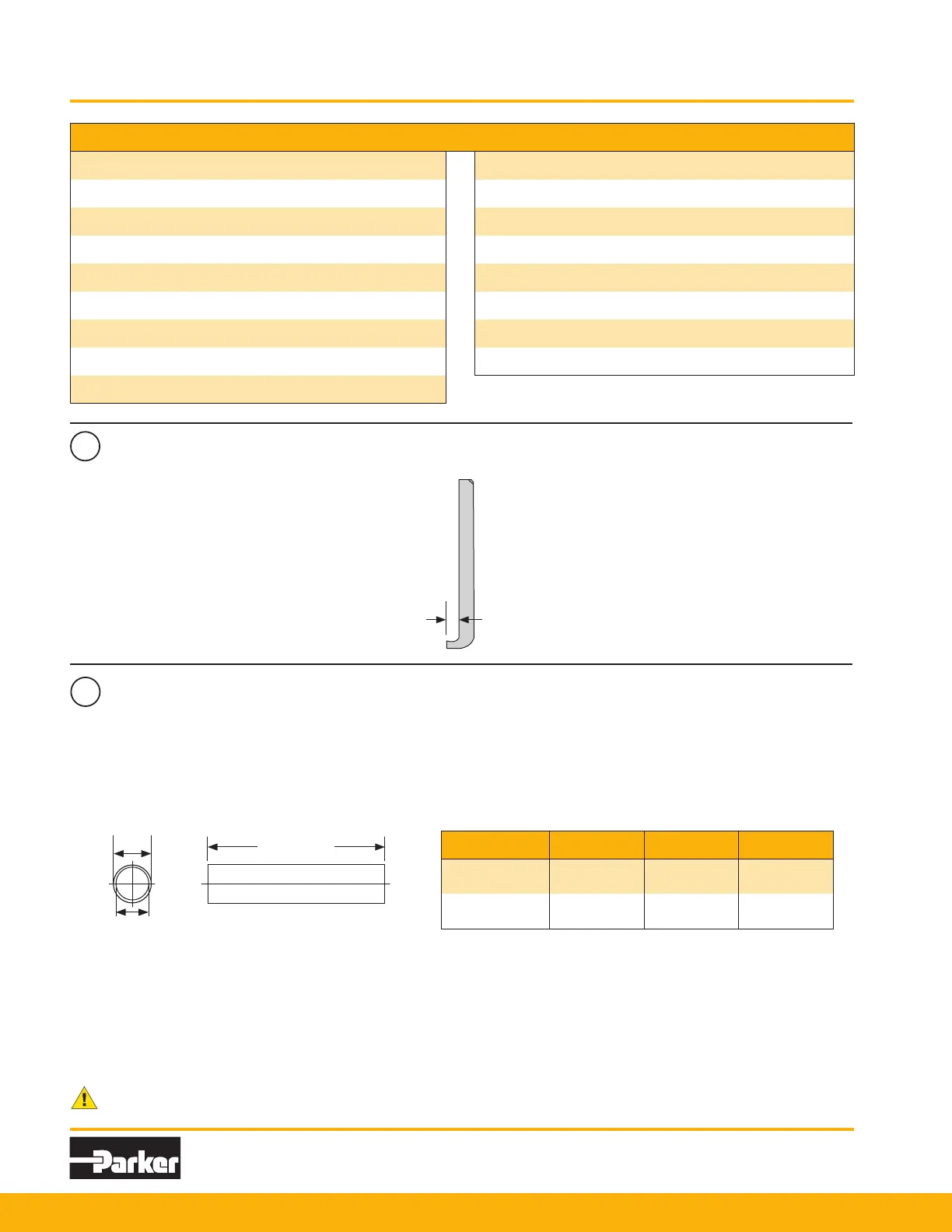

Tool List
Arbor press Snap ring pliers
Awl Prick punch
Clean, lintless cloths Scale (1/32" or 1/64" graduations)
Deburring tool (an old le with cutting teeth ground off) Small screw driver
Machinist’s hammer Torque wrench
Soft hammer Vise with 6" minimum opening
Medium grit carborundurn stone Bar for lip seal installation
Seal removal tool (See A)
Special mylar sleeve (See B)
Oil and Grease
Special Mylar Sleeve
The special mylar sleeve is used to insert the drive shaft through the lip seal without damage. The drawing and chart
give details for making this special tool.
NOTE: Please see tool list for lip seal bar installation.
Pump/Motor A B C
PGP/PGM 505
2.71"-3.190" 0.631"-0.634" 0.634"- 0.635"
PGP/PGM 511
2.940"-3.000" 0.690"-0.694" 0.698"-0.702"
B
Seal Removal Tool
Easily made from an old screw driver. Heat the tip and bend as shown. Grind the tip to t the notch behind the shaft
seal.
A
1/4"
General Information
A Length
B
I.D.
C
O.D.
