Catalog HY13-PMD500-SM/US
PGP/PGM 500 Series
Gear Pumps & Motors Service Manual
Assembly Instructions

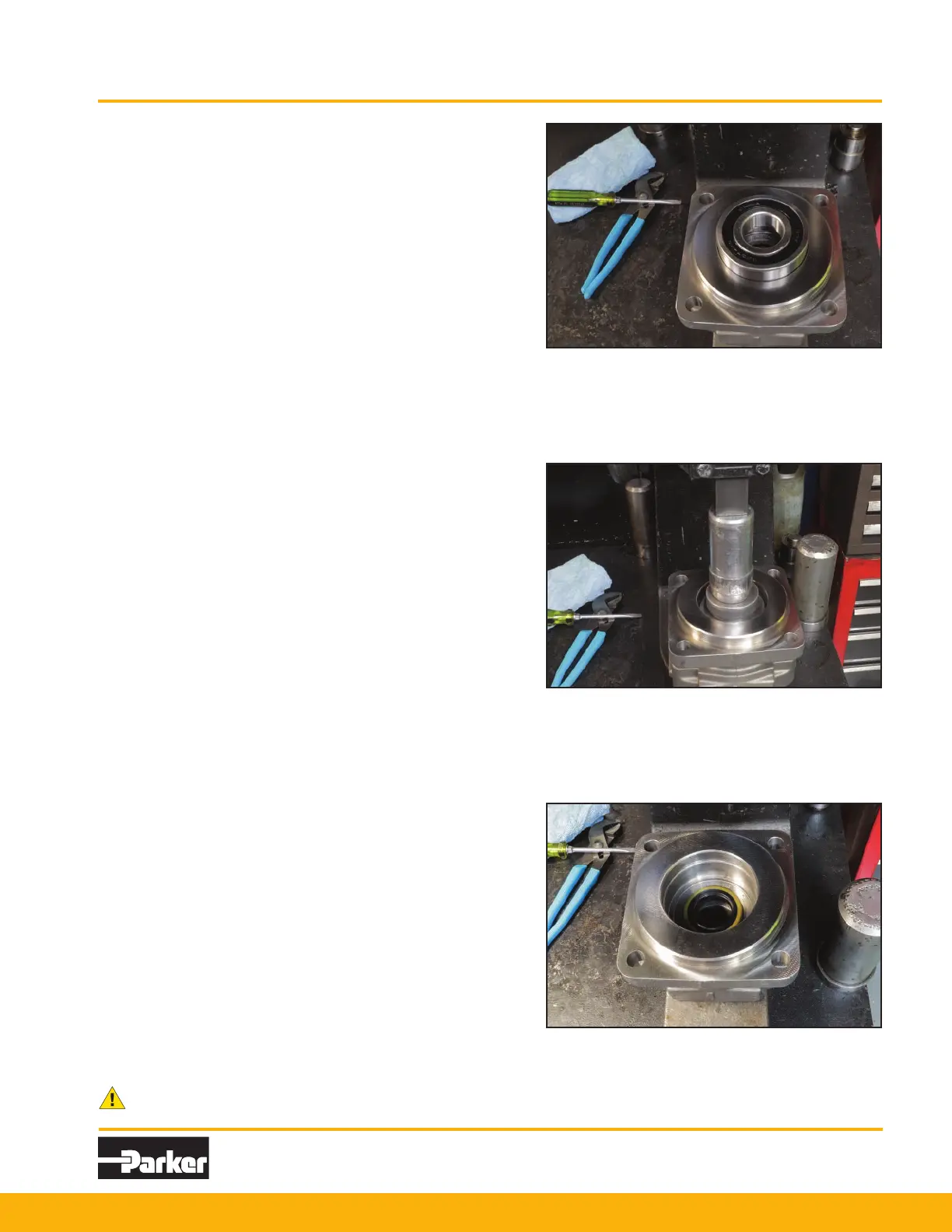

5) Replace bearing (Fig. 5). Place new bearing over lip
seal for installation.
6) Press new bearing over lip seal
(Fig. 6 & 7)
.
Using arbor press, seat new bearing ush with lip
seal.
Figure 5
Figure 6
Figure 7
To Next Page
