Catalog HY13-PMD500-SM/US
PGP/PGM 500 Series
Gear Pumps & Motors Service Manual
General Information
Pump/Motor SEC Description A B C D E F G H
PGP/PGM 505
A1, A2 Integral Shaft 0.946" 3.500" 0.630" 0.275" 0.748" 0.040" 30° 0.060"
PGP/PGM 505
L5
Continental
Shaft
1.024" 3.500" 0.630" 0.275" 0.748" 0.040" 30° 0.060"
Pump/Motor SEC Description A B C D E F
PGP/PGM 511
H2 Integral Shaft 0.786" 1.368" 0.295" 0.974" 0.500" 3.250"
PGP/PGM 511
H3 Integral Shaft 0.786" 1.368" 0.295" 0.516" 0.500" 4.000"
Pump/Motor SEC Description A B C D E F G
PGP/PGM 511
L2 Continental Shaft 1.800" 1.400" 1.750" 2.000" 3.200" 8.250" 0.750"
PGP/PGM 511
L3 Continental Shaft 1.800" 1.400" 2.500" 2.750" 3.200" 8.250" 0.750"
B
F
D
H
G
Polish this end
EC
A
F
B
A
C
D E
A
B
G
C
F
E
D

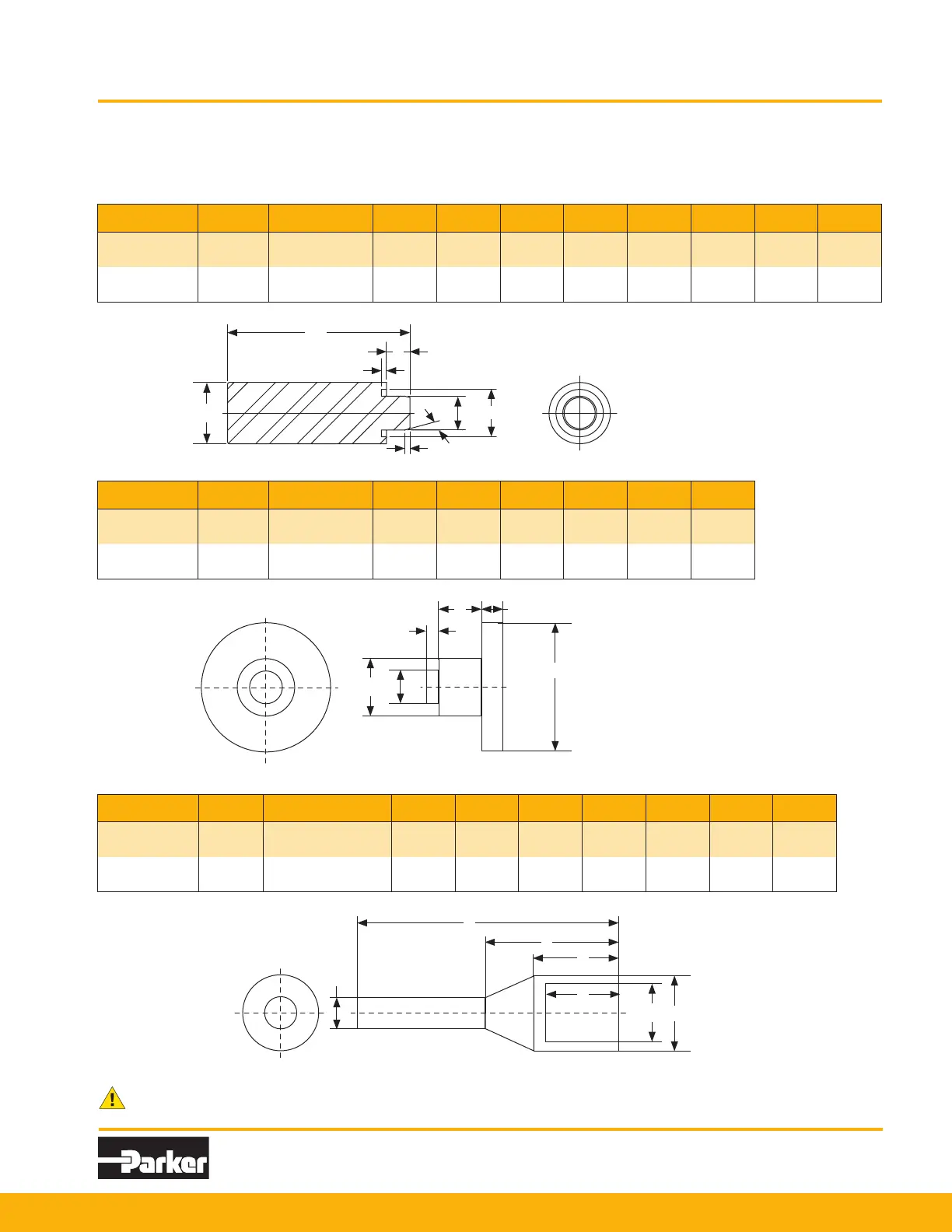

Seal Installation Tools
Constructed from mild steel
To Next Page
