Catalog HY13-PMD500-SM/US
PGP/PGM 500 Series
Gear Pumps & Motors Service Manual
Assembly Instructions
1) Before start, clean all machined surfaces and make
sure are free of debris.
2) Prep new lip seal for replacement (Fig. 1).
3)
Grease new lip seal (Fig. 2). Coat the outer edge
of the lip seal and its recess with non-hardening
sealant or equivalent before replacing.
4) Replace lip seal (Fig. 3 & 4).
With the metal side of
the lip seal up, press it into the mounting ange side
of the shaft end cover with an arbor press and bar
(see Tool List on page 3). Be careful not to damage
the lip of the seal.
Press in until ush with the recess. Wipe off excess
sealant.
Start Assembly

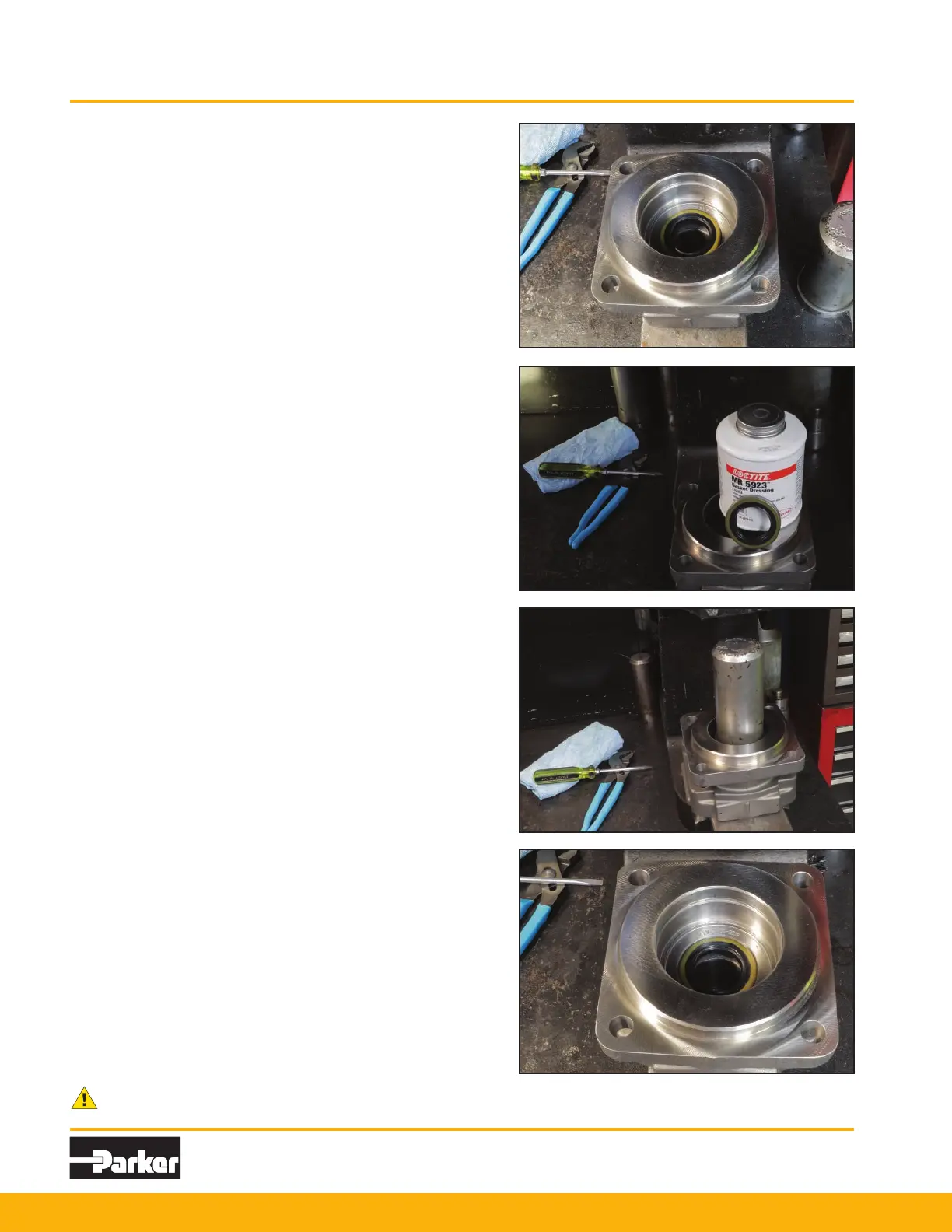

Figure 1
Figure 2
Figure 3
Figure 4
To Next Page
