PSE 120-350
Touch to reset the alarm. Remember that the alarm reset can be
done only if the nominal operating conditions have been restored.

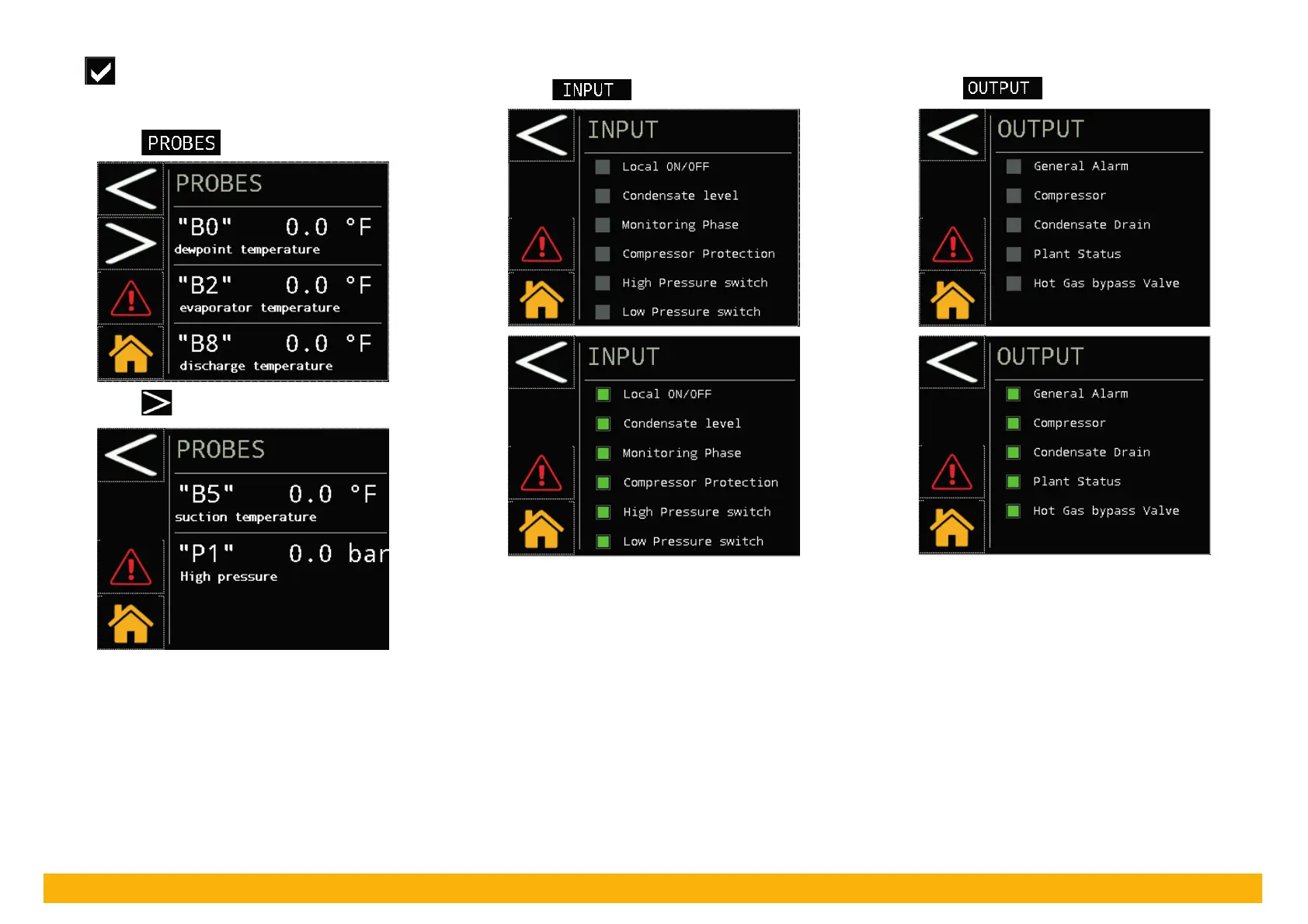

6.3.3 Probe menu
Touch the button to enter on menu
Touch the button to go ahead
real-time probe values are displayed:
B0 : dew point temperature
B2 : evaporator temperature
B8 : discharge compressor temperature
B5 : suction compressor temperature
P1 : High pressure (condenser)
6.3.4 Digital input menu
Touch the button to enter on menu
Local ON/OF: green if the remote start contact is closed, otherwise it
is gray.
Condensate level: green if there is condensation to drain, otherwise it
is gray.
Monitoring phase: green if the phase sequence is correct, otherwise it
is gray:
Compressor protection: green if the compressor protection is in the
normal operating position, otherwise it is gray.
High Pressure switch: green if the pressure switch protection is in the
normal operating position, otherwise it is gray.
Low Pressure switch: green if the pressure switch protection is in the
normal operating position, otherwise it is gray.
6.3.5 Digital output menu
Touch the button to enter on menu
General alarm:green if the general alarm contact is closed, otherwise
it is gray.
Compressor: green if the compressor start contact is closed, otherwise
it is gray.
Condensate drain: green if the condensate drain contact is closed, oth-
erwise it is gray.
Plan Status: green if the dryer on contact is closed, otherwise it is gray.
Hot gas bypass valve: green if the bypass valve contact is closed (valve
open), otherwise it is gray.
