6772 Calorimetric Thermometer Instruction Manual
5-21
View System Info:
Press this key to display a screen with current operating system information / statistics such as:
• Processes and their associated PIDs
• Memory
• Mass Storage
• Network
Press the Print key to print this information.
View Instrument Log:
Press this key to display a screen with contents of the /tmp/instlog file. It contains a
sequential log of the instrument’s processing. Press the Print key to print this log.

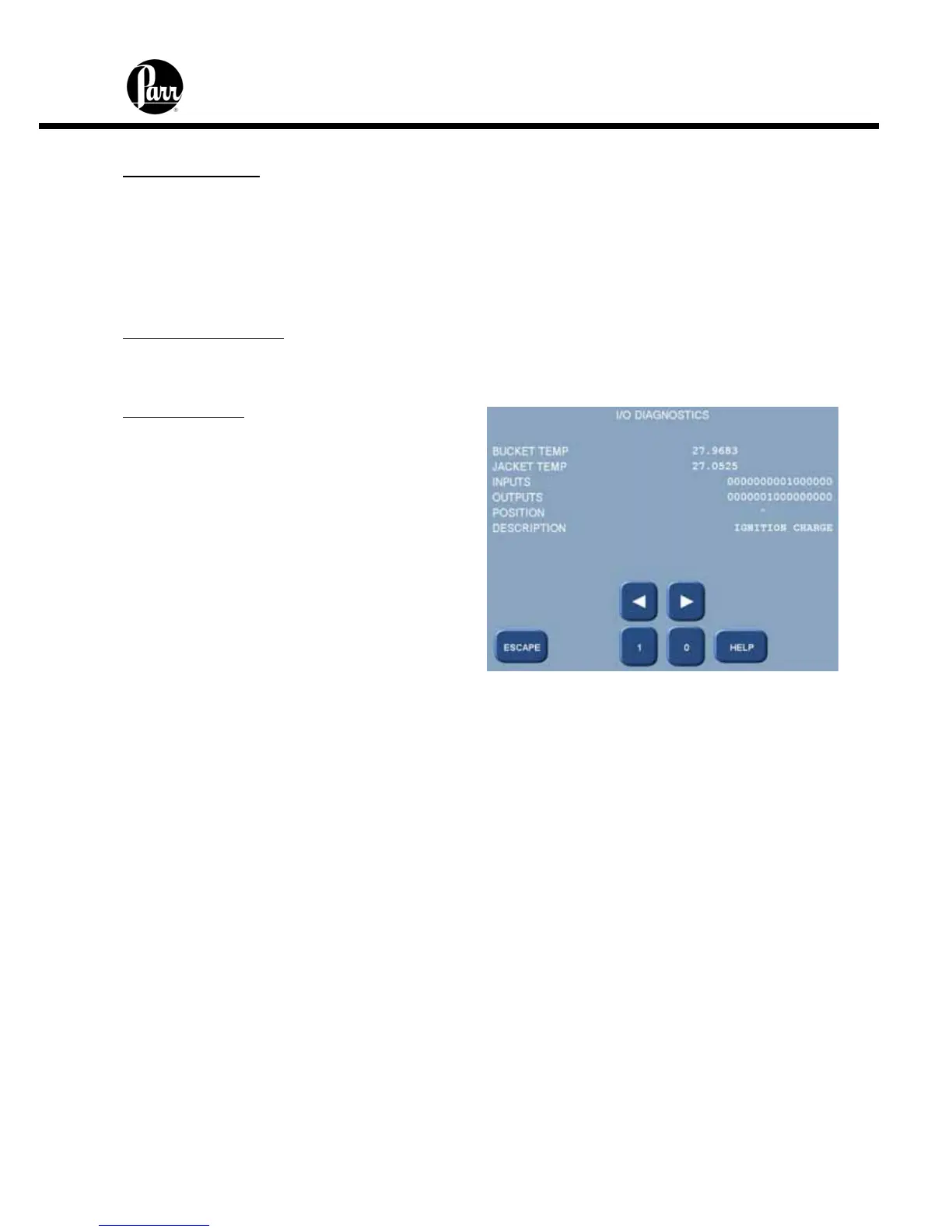

I/O Diagnostics:
Press this key to display its I/O Diagnostics
sub-menu, which allows the user to
manipulate digital outputs for troubleshooting.
(Not all functions are available with the 6772).
The I/O Diagnostics screen is used to display
the digital outputs at a basic level for
troubleshooting. Both the bucket and jacket
temperatures are also displayed on this
screen. Any output can be selected using the
left and right arrow keys. The selected output
is turned ON (1) or OFF (0) using the 1 and 0
keys. Prior to entering the Diagnostics Menu,
the controller stores the present state of the
outputs. This state is restored when you exit this screen. Digital outputs cannot be manipulated
while a test is in progress.
