Parrot ANAFI Assembly/Disassembly Manual

ANAFI assembly and disassembly processes 19

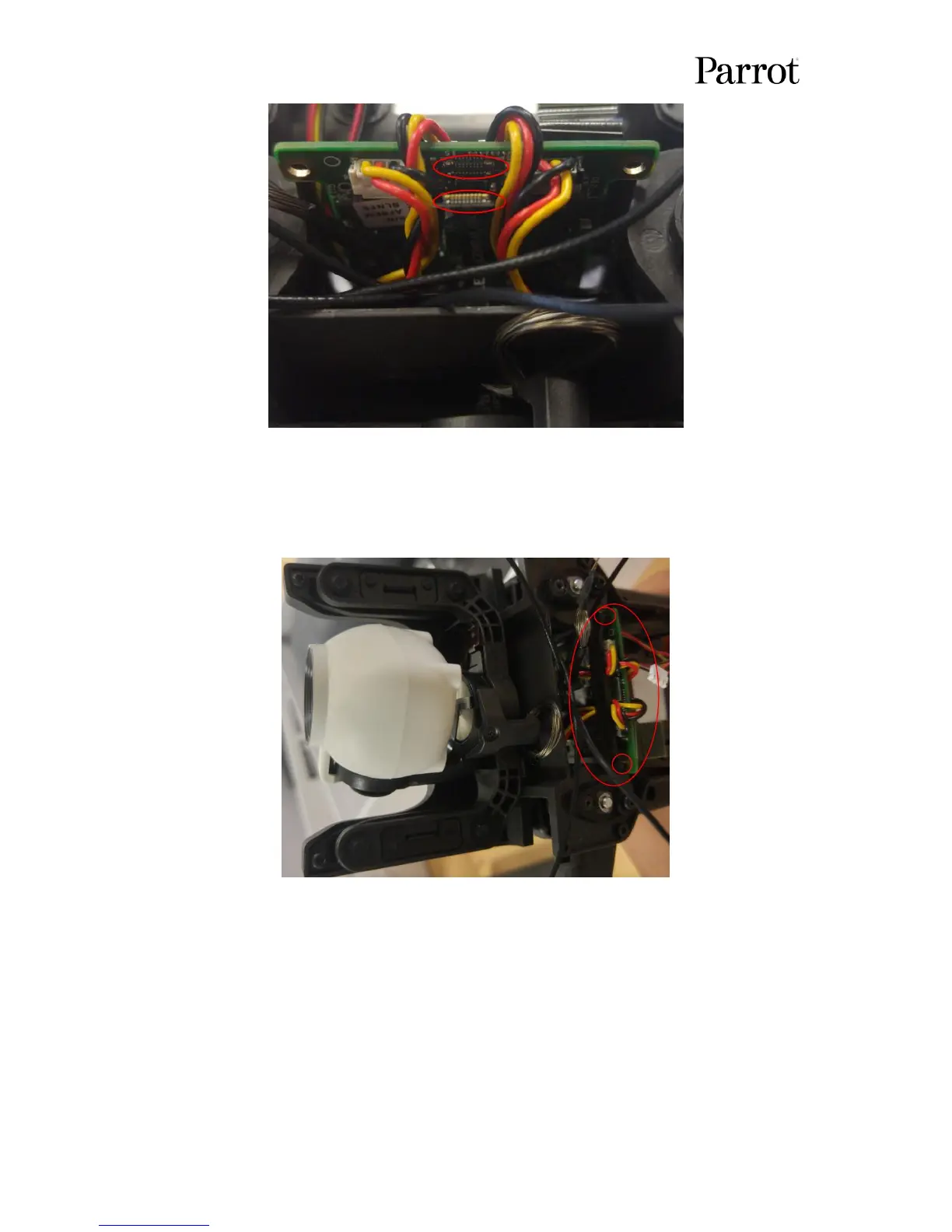

- Hold the drone with the gimbal oriented upward and position the first part of the motor
holder (the one with the holes). Then, position the other part of the support by clipping it
(the part including the antenna holders). The part with three slots must be on the right side
of the drone.
- Position the GPS card back and screw it; check that the antenna wire is not stuck. Position
the GPS cover back and screw it.
- To place the motherboard back correctly, start by plugging back the GPS antenna.

Parrot ANAFI Specifications

General

Type	Quadcopter
Product color	Black
Housing material	Carbon
Maximum speed	55 m/s
Frequency band	2.4, 5 GHz
Number of rotors	4 rotors
Maximum weight capacity	- kg
Maximum operating distance	4000 m
Built-in processor	-
Memory card slot(s)	Yes
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	64 GB
Megapixel	21 MP
Sensor type	CMOS
Video resolutions	3840 x 2160 pixels
Maximum frame rate	60 fps
Optical sensor size	1/2.4 \
Camera shutter speed	1 - 1/10000 s
Image formats supported	DNG, JPEG
Video formats supported	MP4
Field of view (FOV) angle	84 °
Bitrate at maximum video resolution	100 Mbit/s
Charging time	105 min
Operating time	25 min
Battery voltage	7.6 V
Battery capacity	2700 mAh
Operating temperature (T-T)	-10 - 40 °C

Weight and Dimensions

Weight	320 g
