Parrot ANAFI Assembly/Disassembly Manual

ANAFI assembly and disassembly processes 18

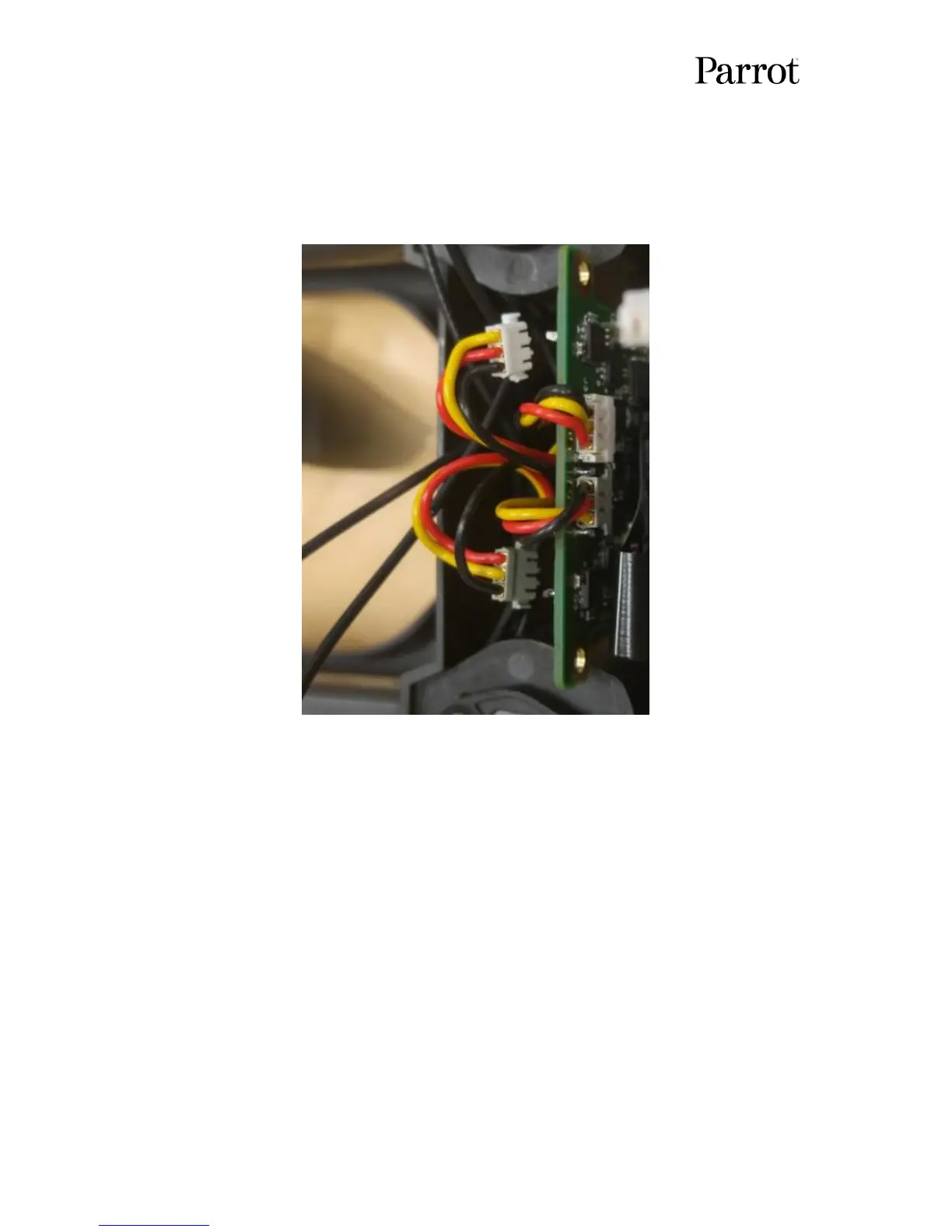

Motor wiring
- Front motor connectors are plugged on the rear side of the motor card; rear motor
connectors must be plugged on the front side of the card. Apply a torsion on the wires to
plug the rear motors on the card.
- Push wires gently toward the inside of the drone.
- Position the gimbal and slide wires through the rubber support (coaxial wire slides through
the large hole and flex cable through the small one). Pull the coaxial wire gently to keep
enough length to plug it.
- Screw the two screws on the front side of the gimbal before plugging the flex wire.

Parrot ANAFI Specifications

General

Type	Quadcopter
Product color	Black
Housing material	Carbon
Maximum speed	55 m/s
Frequency band	2.4, 5 GHz
Number of rotors	4 rotors
Maximum weight capacity	- kg
Maximum operating distance	4000 m
Built-in processor	-
Memory card slot(s)	Yes
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	64 GB
Megapixel	21 MP
Sensor type	CMOS
Video resolutions	3840 x 2160 pixels
Maximum frame rate	60 fps
Optical sensor size	1/2.4 \
Camera shutter speed	1 - 1/10000 s
Image formats supported	DNG, JPEG
Video formats supported	MP4
Field of view (FOV) angle	84 °
Bitrate at maximum video resolution	100 Mbit/s
Charging time	105 min
Operating time	25 min
Battery voltage	7.6 V
Battery capacity	2700 mAh
Operating temperature (T-T)	-10 - 40 °C

Weight and Dimensions

Weight	320 g
