1. Main components and General information

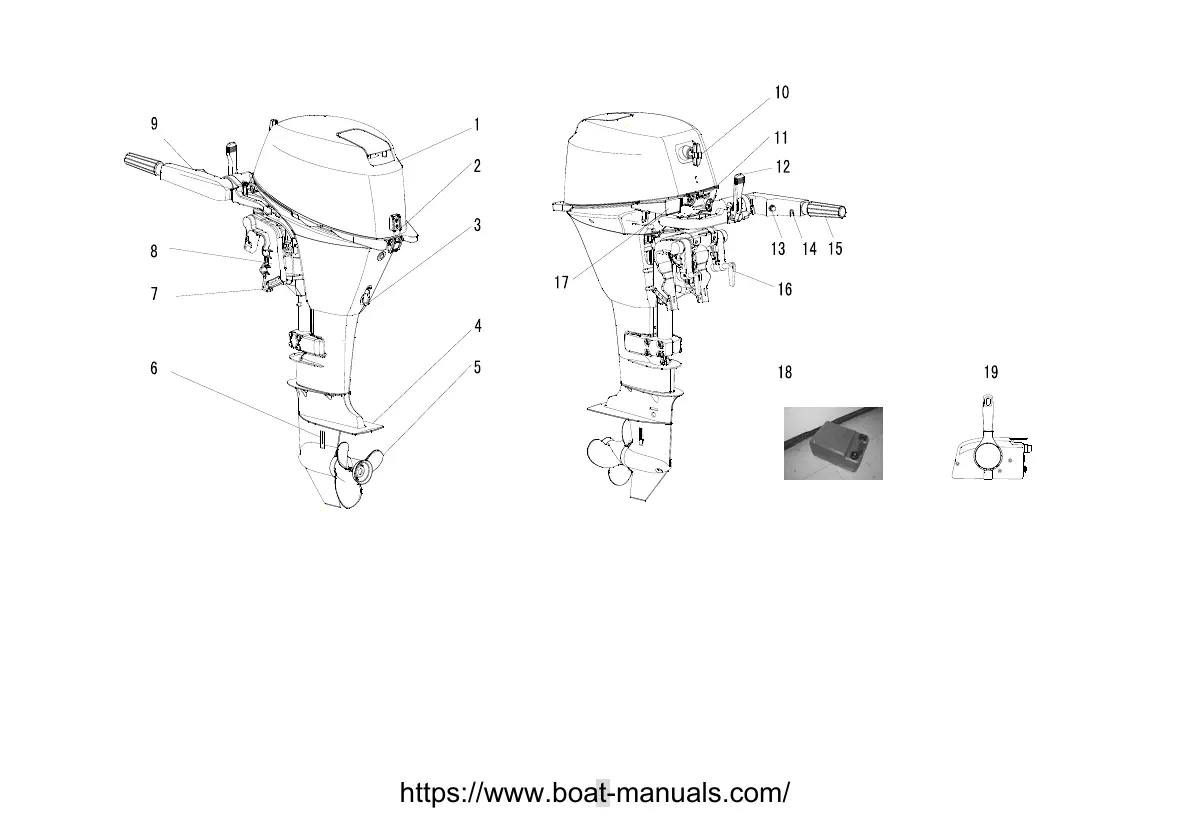

1.1 Main components
1.Top cowling 8.Clamp bracket 15.Throttle grip
2.Top cowling lock handle 9.Tiller handle 16.Clam bolt
3.Drain screw 10.Starters handle 17.Fuel joint
4.Anti-cavitation plate 11.Warning indicator 18.Fuel tank
5.Propeller 12.Gear shift lever 19.Remote control box
6.Cooling water inlet 13.Engine stop button
7.Tilt & trim rod 14.Throttle frication adjuster
