Parsun F5BM - Explosive Drawing

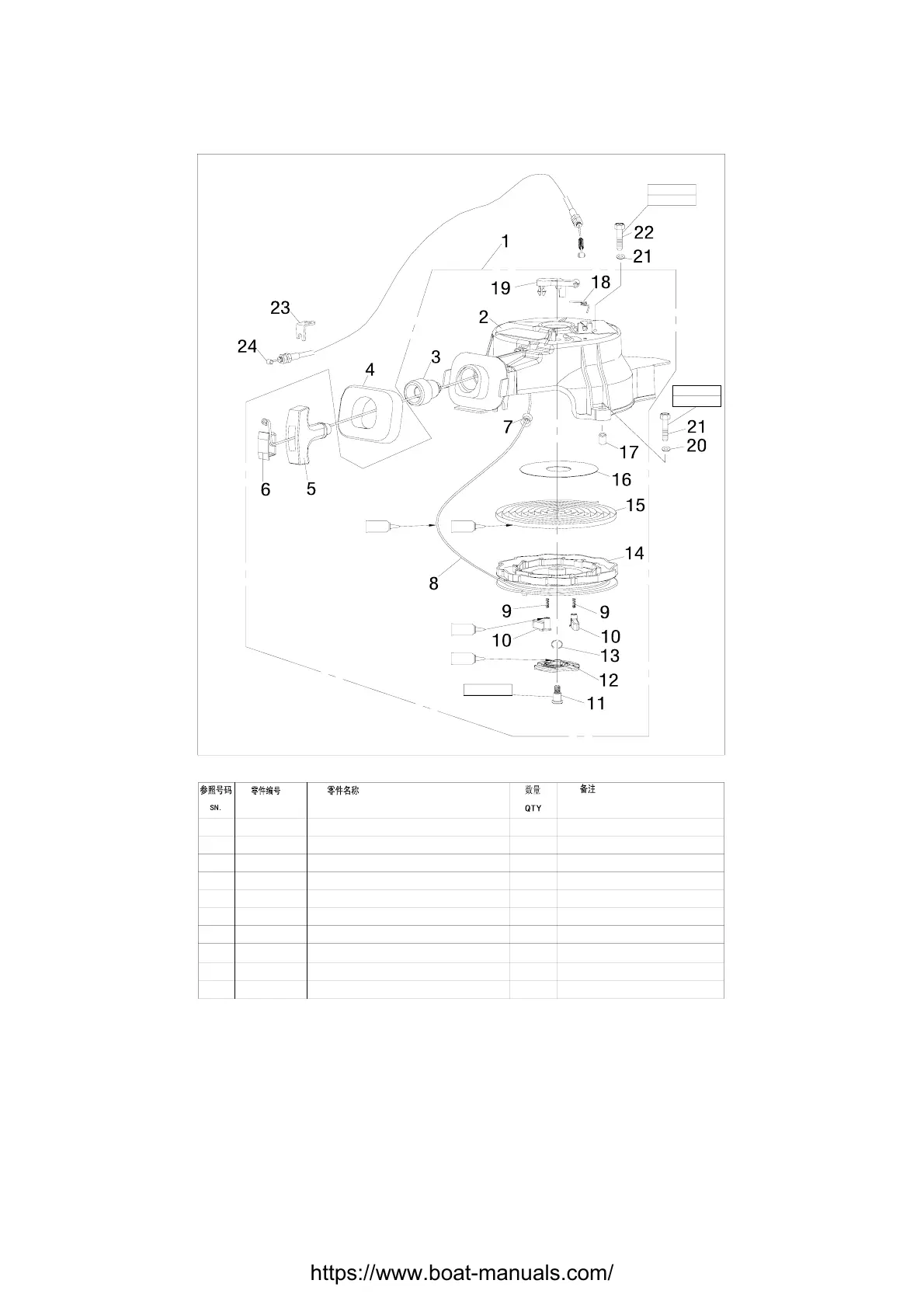

EXPLOSIVE DRAWING
2
2
1
1
1
1
1
1
1
1
起动绳导向器
卡瓣
卡瓣弹簧
起动绳导管
起动手柄盖
起动手柄
起动减震块
起动器外壳
起动器组件
10
9
8
7
6
5
4
3
2
1
起动绳
G
M6x20 mm
8Nm
M6x35 mm
8Nm
G
G
G
6.5Nm
F4-04130011
F4-04130102
F4-04130101
MEATUS,START ROPE
PAWL,DRIVE
SPRING,DRIVE
WIRE,STARTER
COVER
HANDLE,STARTER
SEAL,RUBBER
GUIDE,ROPE
CASE,STARTER
STARTER ASSY
F4-04130003
F4-04130004
F4-04130013
F4-04130018
F4-04130012
F4-04130001
F4-04130000
PART NO. DESCRIPTION REMARKS
