Parsun T5BM User Manual

1. Main components and General information
1.1 Main components
15
1
2
3
4
5
6
7
8
9
10
11
14
13
12
16
17
18

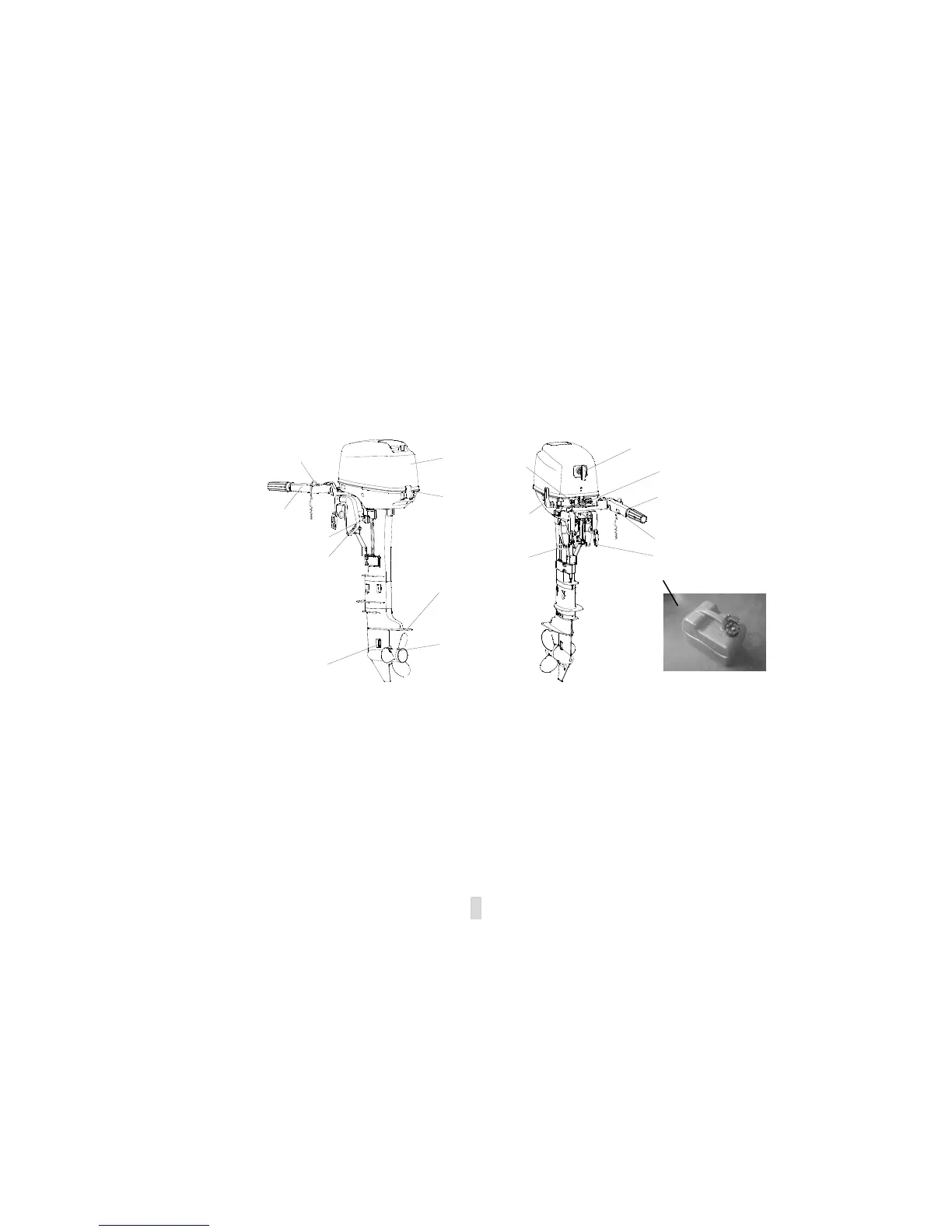

1. Top cowling 8. Tiller handle 14. Clamp screw
2. Top cowling lock levers 9. Engine stop button/Engine 15. Choke knob
3. Anti-cavitation plate stop lanyard switch 16. Gear shift lever
4. Propeller 10. Starter handle 17. Trim rod
5. Cooling water inlet 11. Fuel joint 18. Fuel tank
6. Clamp bracket 12. Throttle grip
7. Steering friction screw
13. Throttle friction adjuster
Note:
* The fuel tank is equipped for
the proper model.
1
