5
I/O connectors

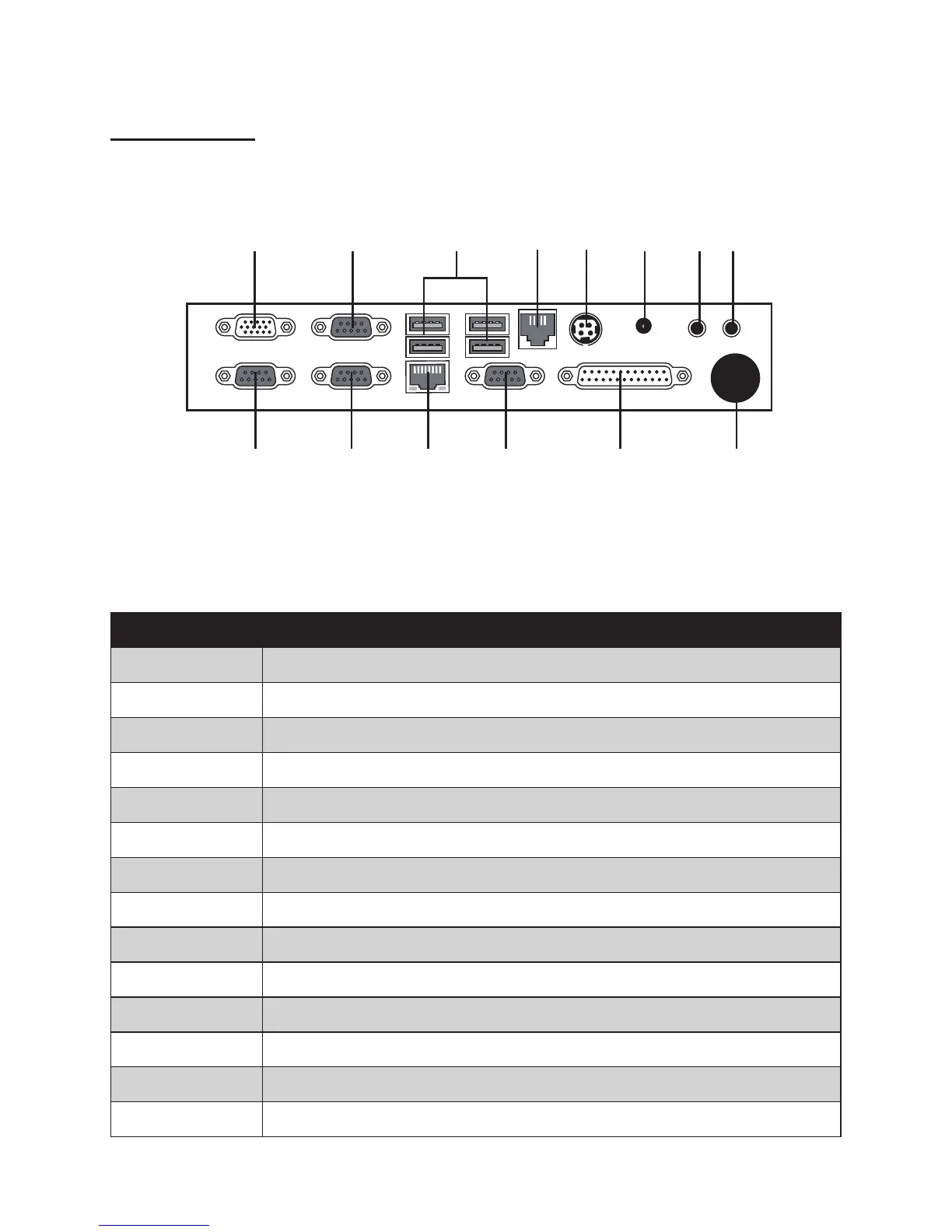

Figure 1.4 SP-1000-C I/O connectors
6321 4 5 7 8
9 10 11 12 13 14
Connector Description
1 VGA port
2 COM 2 port
3 USB ports
4 RJ11 cash drawer port
5 DC 12V input connector
6 DC 12V output connector (for PM-116)
7 Microphone jack
8 Audio output jack
9 COM 3 port
10 COM 1 port
11 LAN jack
12 COM 4 port
13 LPT port
14 SATA cable hole
