SIO Control Sub-Menu
COM 1/ 2/ 3/ 4/ 5/ 6 Conguration:
COM:
These items are used to enable/ disable the COM port 1/ 2/ 3/ 4/ 5/ 6.
ADDR:
These items are used to assign the I/O address for the COM port 1/ 2/ 3/ 4/ 5/ 6.
IRQ:
These items are used to assign the IRQ for the COM port 1/ 2/ 3/ 4/ 5/ 6.
LPT Conguration:
COM:
This item is used to enable/ disable the LPT port.
ADDR:
This item is used to assign the I/O address for the LPT port.

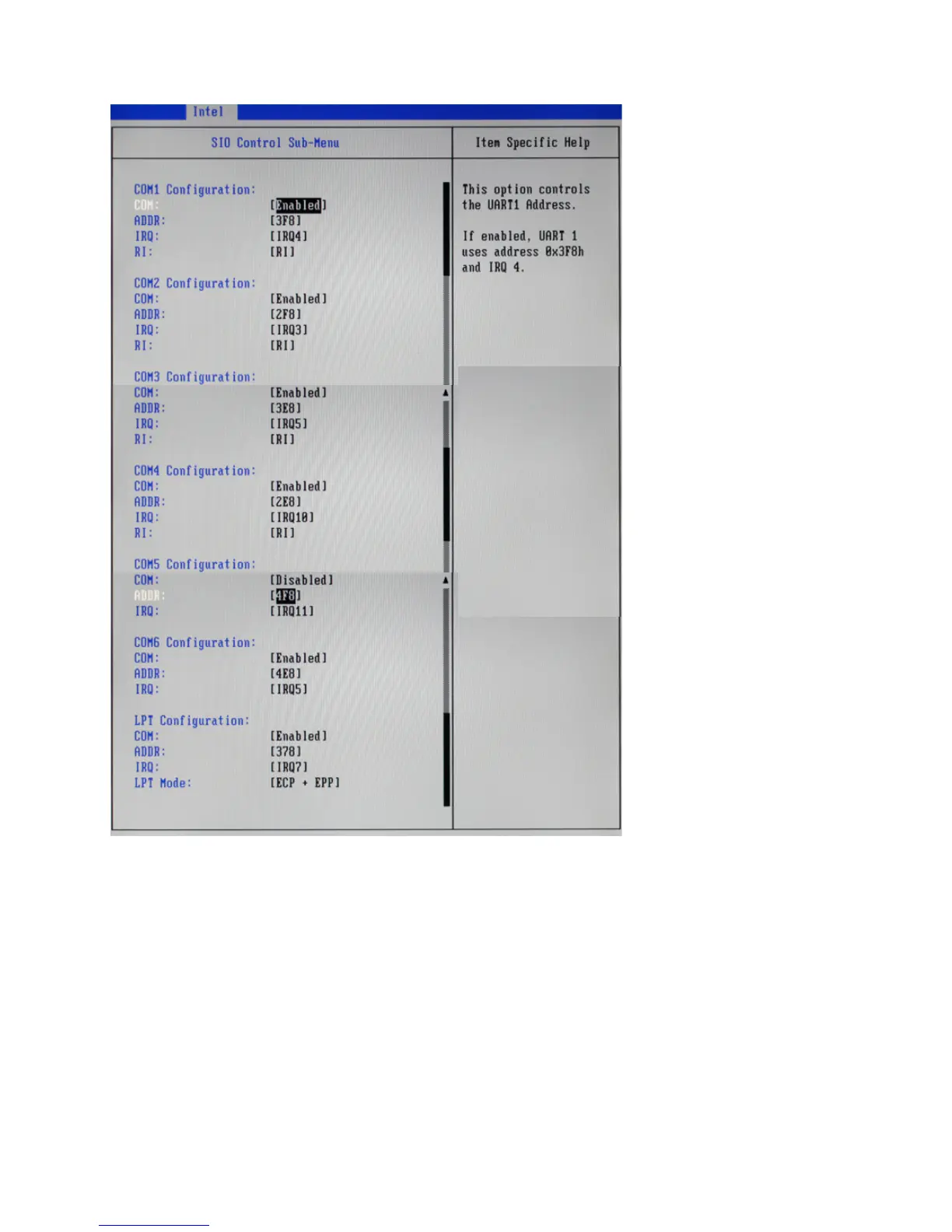

Figure 2.9 SIO Control
sub-menu
