Wireless Smart Gate Assign SmartGate- Smart Gate Only
12
013-16123A
4. Smart Gate Only - Smart Pulley (Linear)
1. Click or touch “Smart Pulley (Linear)” to select it and then click or touch “OK” to accept the choice and close
the dialog.

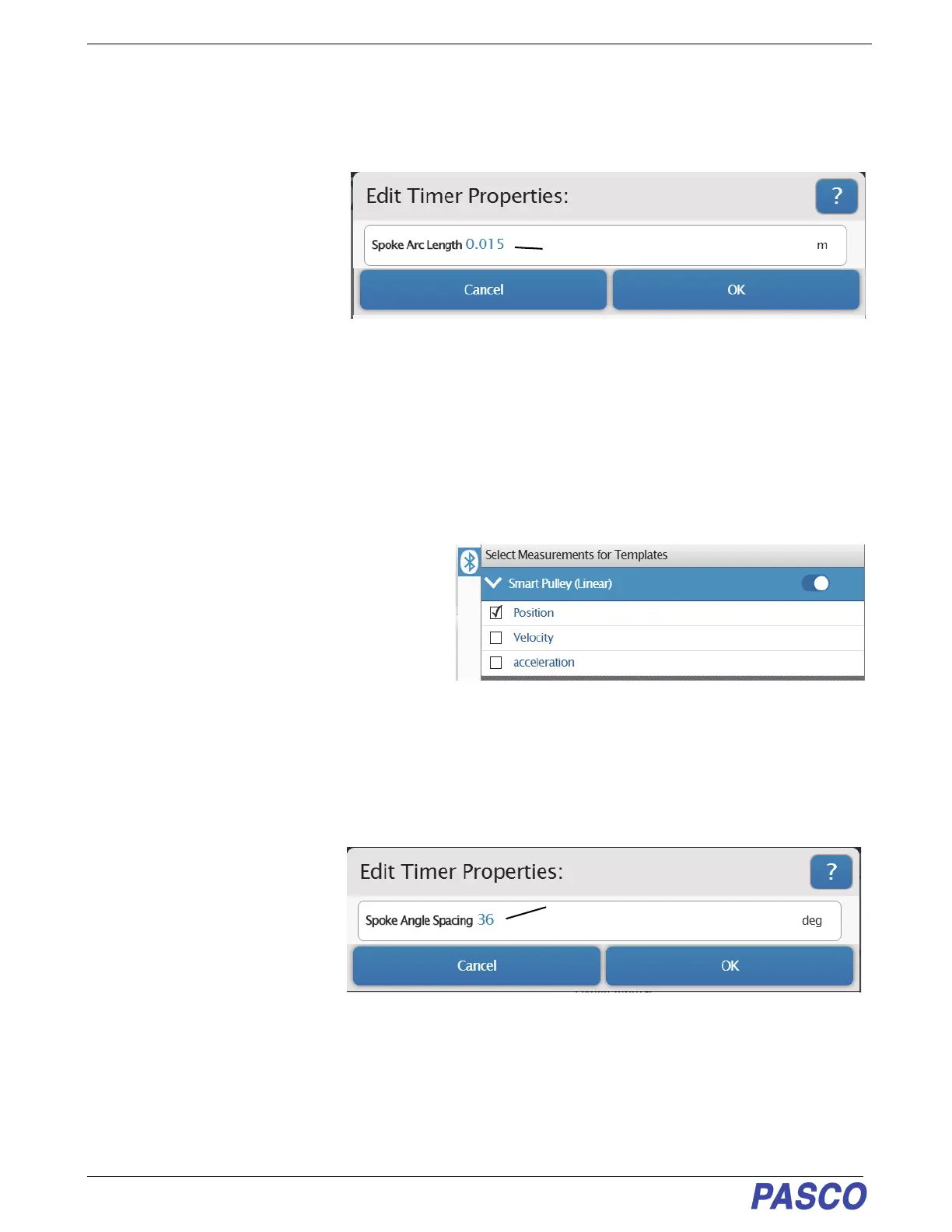

• The Edit Timer Properties” panel
is revealed.
• If the Spoke Arc Length for the
Super Pulley needs to be
changed, highlight the default
value in the “Edit Timer
Properties:” panel and enter the
actual value.
•Note, the Super Pulley’s Outside Circumference is 16 cm or 0.16 m. The Super Pulley has ten spokes, so the
Spoke Arc Length is one-tenth of the circumference, or 0.016 m. However, the Super Pulley’s Groove
Circumference is 15 cm, or 0.015 m for the Spoke Arc Length. If the Super Pulley measures a linear distance
by rolling on the outer edge of the pulley, use 0.016 m as the Spoke Arc Length. However, if the Super Pulley
measures a linear distance traveled by a string or thread in its groove, use 0.015 m as the Spoke Arc Length.
2. Click or touch “OK” to accept the change and close the dialog.
• The “Select Measurements for Templates” panel is revealed.
• The panel shows “Position”, “Velocity”. and
“Acceleration” with “Position” as the default
choice. This measurement gives the amount of
distance moved based on the “Spoke Arc
Length” of the Super Pulley. The “Velocity”
measurement gives the speed and direction of
the Super Pulley based on the time between
Detector Port 1 and Detector Port 2. Direction is
based on which Detector Port is interrupted first. The “Acceleration” measurement is based on the “Change in
Velocity” per unit of time.
5. Smart Gate Only - Smart Pulley (Rotational)
1. Click or touch “Smart Pulley (Rotational)” and then click or touch “OK” to accept the choice and close the dia-
log. The Edit Timer Properties” panel is revealed.
• If the Spoke Angle Spacing on
the Super Pulley needs to be
changed, highlight the default
value in the “Edit Timer
Properties:” panel and enter the
actual value.
• Note, the Super Pulley’s Spoke
Angle Spacing is 36 degrees.
2. However, If a different pulley is used, highlight the default value and enter the value for the pulley’s Spoke
Angle Spacing.
3. Click or touch “OK” to accept the change and close the dialog.
• The “Select Measurements for Templates” panel is revealed.
Default Spoke Arc Length -
Change if necessary.
Default Spoke Spacing-
Change if necessary.
