PS-3225 Hardware Set-Up
3
013-16123A
Data Collection Software
Measurements from the sensor are recorded and displayed using PASCO software such as SPARKvue or PASCO
Capstone. SPARKvue allows the sensor to work with a computer or a mobile device such as a tablet, datalogger,
or smart-phone when the sensor is connected. PASCO Capstone will work on a PC or Mac.
See the PASCO web site at www.pasco.com/software for help in selecting the right PASCO software and to check
for the latest versions.
ON/OFF and Sleep Information
To turn the sensor on, press and hold the Power Button until the Battery LED shines red for a moment, and then
release the Power Button. The Bluetooth LED will blink to indicate that the sensor is ready to be “paired” with a
device using the PASCO software.The sensor puts itself to sleep after one hour of inactivity if connected, and after
several minutes if not connected. To turn the sensor off, press and hold the Power Button for a moment until the
Battery LED shines red. Release the Power Button and the Bluetooth LED stops blinking.

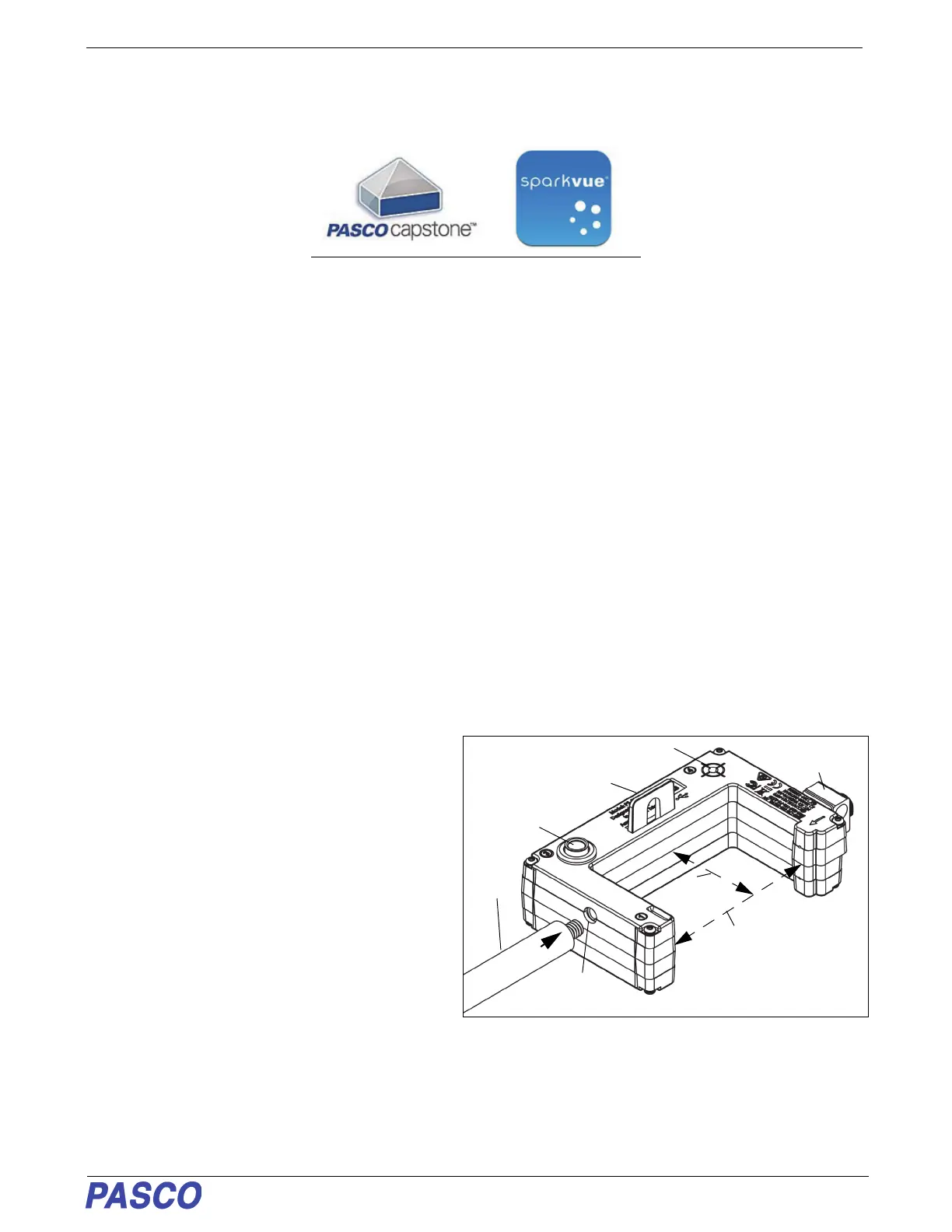

Hardware Set-Up
Mounting the Wireless Smart Gate to a Pulley Mounting Rod
A Pulley Mounting Rod (SA-9343) fits the 1/4-20 threaded
hole that is on the side of the Wireless Smart Gate opposite
to the swivel rod clamp.
The swivel rod clamp and thumbscrew allows the Wireless
Smart Gate to be mounted on a 0.63 cm (1/4 in.) diameter
rod (such as the ME-9805 Photogate Stand).
The open space for the Wireless Smart Gate is 7.2 cm
(width) by 4.0 cm (depth). Remember, the Laser Detector
Port (Port 4) allows the measurement of the motion of
larger objects when used with a laser.
PASCO Capstone SPARKvue
• Mac OS X • Mac OS X
• Windows • Windows
• iOS
• Android
• Chromebook
1/4-20
threaded hole
Mounting
Rod
Tab for
Super Pulley
Depth =
4.0 cm
Width =
7.2 cm
Swivel Rod
Clamp
Port 4, Laser
Detector Port
Port 3, Auxiliary
Port
