Paselec N5236 - Circuit Diagram and Wire Sequence

- 25 -
Unit setting interface

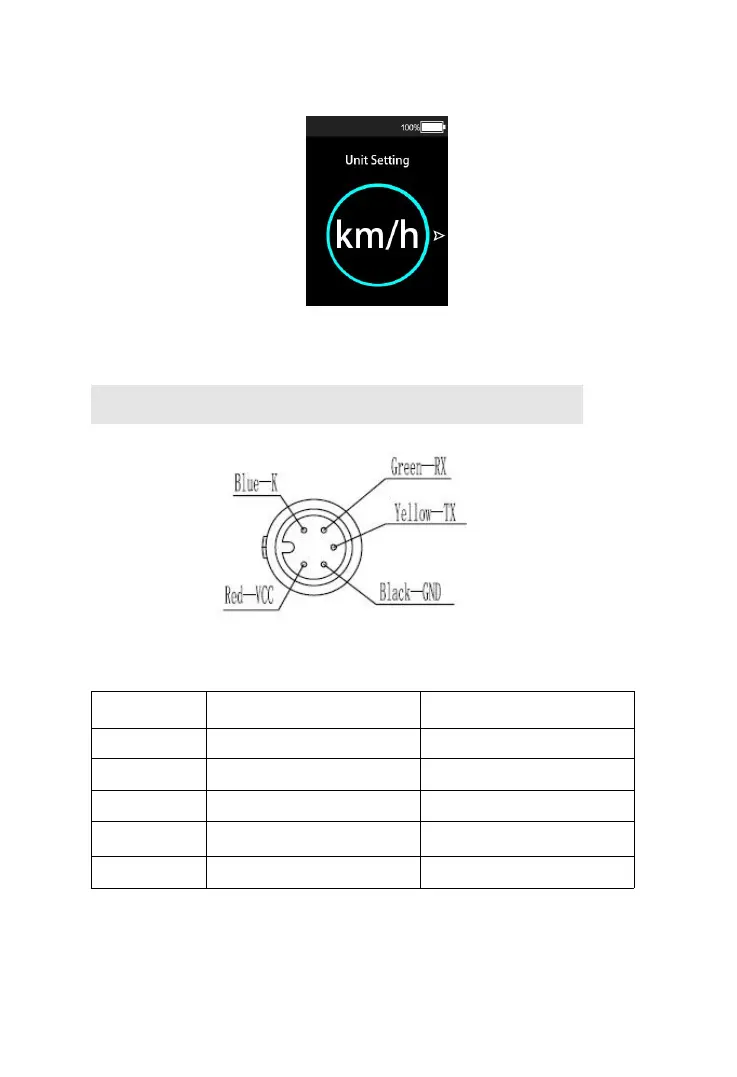

8. Circuit Diagram and wire sequence
Connecting end with controller
Standard connector wire sequence table (Ananda)
Standard Wire
sequence
Color of standard Wire
Function
1
Red (VCC)
Display power wire
2
Blue(K)
Power control wire of controller
3
Black(GND)
Instrument Ground wire
4
Green(RX)
Data receiving wire of display
5
Yellow(TX)
Data transmission wire of display
