3
Handle-Magazine Removal
Step 4

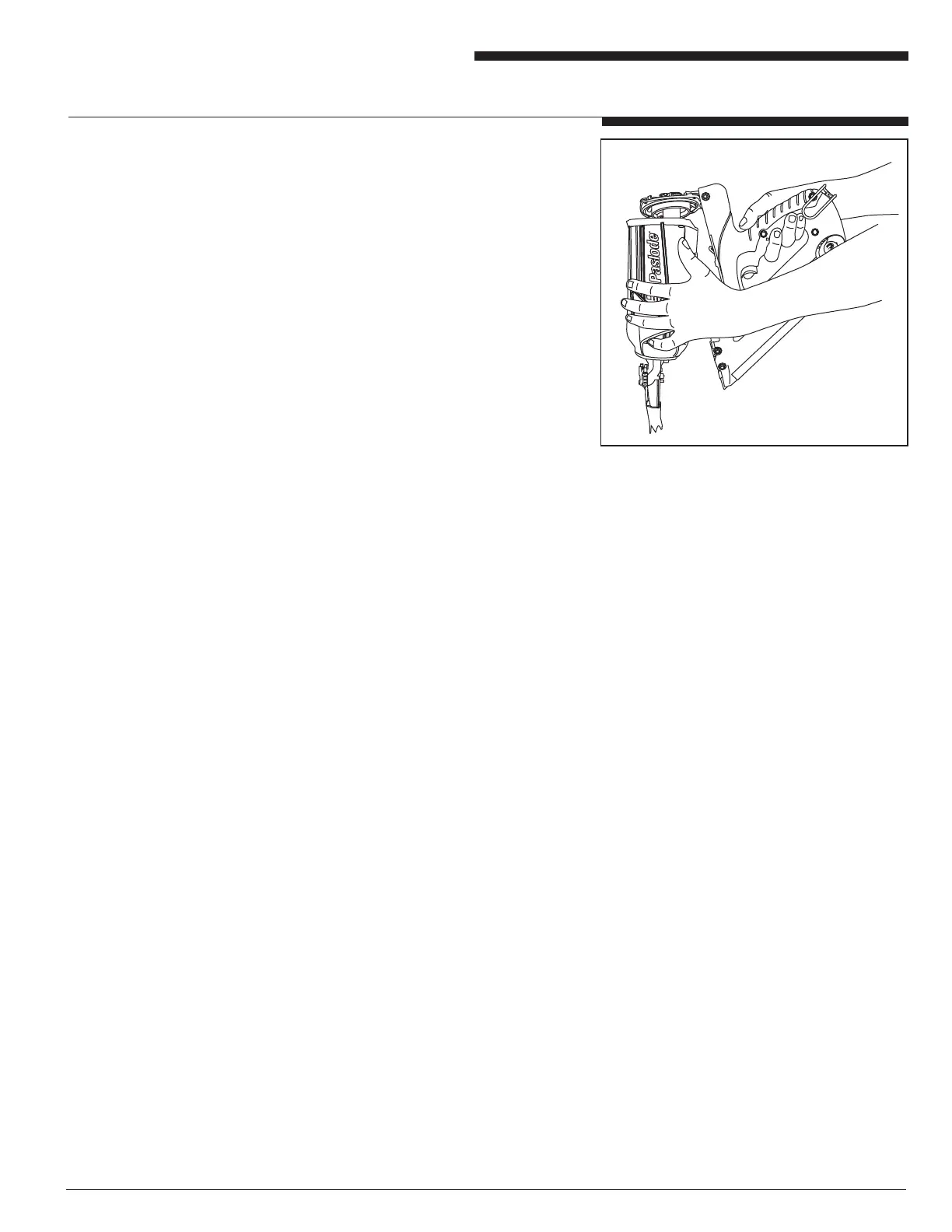

Carefully tilt the Handle-Magazine Assembly away
from the Motor Assembly and gently pull the two
assemblies apart. CAUTION: Use care to ensure that
the fan does not scratch the combustion chamber.
Also be careful when setting the Handle-Magazine
Assembly down so that you do not damage the fan
blades or bend the fan motor shaft.
You have now separated the tool into two major as-
semblies, allowing access to the areas that require
periodic cleaning and lubrication.
