Paso T3015DMA - Zone 1 and Music on Hold Functions; Zone 1 and MOH Output Configuration; MOH Amplifier Operations and Issues

PROFESSIONAL AUDIO & SOUND
®
TM
DIGITAL MUSIC SERIES
DIGITAL MUSIC AMPLIFIERS
INSTALLATION AND WIRING
PAGE 18
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE T3015/3030DMA
MUSIC ON HOLD - ZONE 1 AND ZONE 2 FUNCTIONS
MOH OUTPUT
1
2 3
3015B MOH Rear
NC NOC+-
000
RELAY
VOX
24V DC
100 mA
1 WATT
ZONE 2
ZONE 1
1 VOLT
8
OHM
8
OHM
600
OHM
(MIX BUSS)
EQ LINK
PREAMP
OUT
POWER
IN
L
I
N
P
U
T
1
TEL Prog
CD Off
Off Off
MIC MIC
I
N
P
U
T
2
I
N
P
U
T
3
I
N
P
U
T
1
I
N
P
U
T
2
I
N
P
U
T
2
Z
O
N
E
1
Z
O
N
E
2
E
Q
L
I
N
K
Off
Vox
On
Mute
On
Vox
On
Aux
INPUT
3
INPUT
2
On
INPUT 2
INPUT 1
RVC
MIC/PROG MIC/TEL
REM
BALANCED VOLUMEBALANCEDMUTE
MUTE REMOTE
VOL
HOTGCOM COMGHOT
ATTENUATOR
INPUT 2
PROG
RR
L
INPUT 3 INPUT 2
PROGRAM
UNBALANCED
AUX/CD
ZONE 2
LEVEL
ZONE 1
LEVEL
70V25V80
CLASS 2 WIRING ACCEPTABLE
PORT ACCEPTS
STANDARD
MODULE
CAUTION: REMOVE
POWER CORD FROM AC
OUTLET PRIOR TO
INSTALLING MODULE
LINE FUSE 1.6 A 250V
UNSWITCHED 117V 500W MAX.
DIGITAL MUSIC AMPLIFIER
T3015DMA
Power Output 15 W RMS
Supply Voltage 117V 60 Hz
Power Consumption 76 VA
LISTED
COMMERCIAL
AUDIO
EQUIPMENT
30TJ
CUS
®
L
U
®
1 - ZONE 1 = 600 Ohm MOH Output
2 - ZONE 1 = 8 Ohm Output
3 - ZONE 2 = 8 Ohm Output
4
5
4 - ZONE 1 = Input 2 or 3
Source Selector
5 - ZONE 2 = Input 2 or 3
Source Selector
5
6
5 - ZONE 1 Output
Level Control
6 - ZONE 2 Output
Level Control

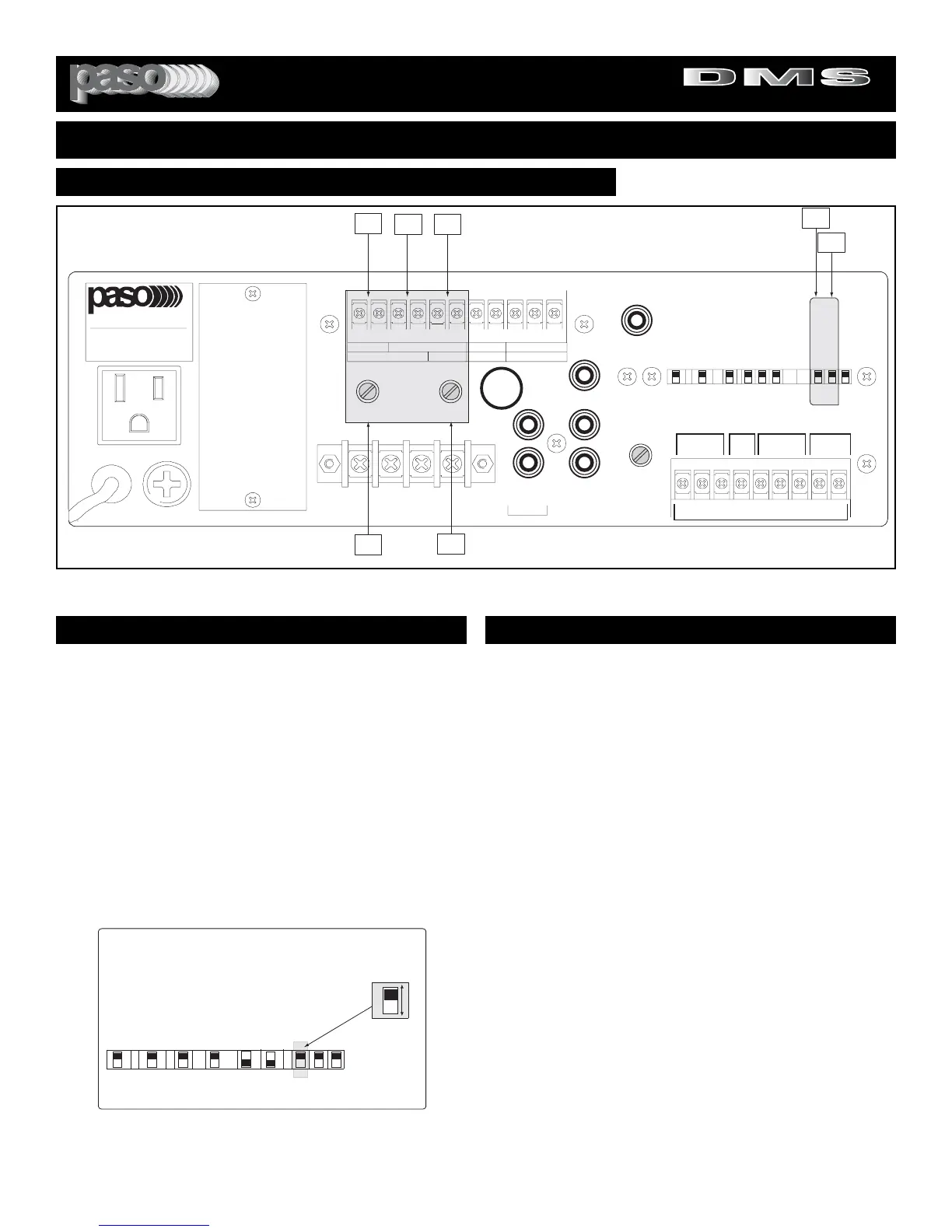

Fig. 18 - Rear Panel View - ZONE 1 - ZONE 2 -Outputs - Source Selectors and Controls
ZONE 1 MOH AND 8 OHM OUTPUTS MOH AMPLIFIER FUNCTIONS
MOH AMPLIFIER
a) The MOH Amplifier can only receive programs from
INPUT 2 or INPUT 3.
b) Selection of the input source is by rear panel ZONE 1
Switch.
c) The two independent 600 Ohm and 8 Ohm Outputs
may be used simultaneously.
d) The MOH 600 ohm Output is Transformer Balanced.
e) The Rear Panel ZONE 1 Level Control operates both
the 600 Ohm and 8 Ohm Outputs simultaneously.
MOH AND ZONE 1-2 OPERATION ISSUES
1) Paging from the Microphone Input or the Telephone Input
(INPUT 1) does not effect the MOH/ZONE 1-2 Amplifier.
2) Position of the INPUT 2 and the INPUT 3 Level Control
does not affect the MOH/ZONE 1-2 Amplifier Output Level.
3) Position of the INPUT 2 ATTENUATOR does not affect
the MOH/ZONE 1-2 Amplifier Output Level.
4) Muting of the INPUT 2 or the INPUT 3 Channels during
Paging (from Microphone or Telephone) does not effect the
Output of the MOH/ZONE 1-2 Amplifier.
5) Signal Source from INPUT 2 is sent to the MOH/ZONE
1-2 Amplifier only if the INPUT 2 Switch is set on PROG.
ZONE 1 OUTPUTS - 600 Ohm MOH AND 8 Ohm
The Integrated Amplifier is equipped with an independent 1 Watt
Amplifier that can be utilized as a MUSIC ON HOLD AMPLIFIER
and as a SECOND ZONE AMPLIFIER.The MOH Output provides
a 600 ohm, 1 Volt Transformer Balanced Output. Simultaneously a
Second Zone 8 ohm, 1 Watt Output may be utilized to drive up to
4 Speakers.
MOH AND 8 Ohm AMPLIFIER INPUT SOURCE SELECTION
The program source for the Input of the 600 ohm MOH Output and
the 8 ohm Output can be selected from either INPUT 2 or INPUT
3 source. Set the Independent ZONE 1 SOURCE SWITCH to the
desired INPUT (2 or 3).
OUTPUT LEVEL CONTROL
Adjust the ZONE 1 Output Level Control to the desired level.
Switch Settings
I
N
P
U
T
1
TEL Prog
CD Off
Off Off
MIC MIC
I
N
P
U
T
2
I
N
P
U
T
3
I
N
P
U
T
1
I
N
P
U
T
2
I
N
P
U
T
2
Z
O
N
E
1
Z
O
N
E
2
E
Q
L
I
N
K
Off
Vox
On
Mute
On
Vox
On
Aux
INPUT
3
INPUT
2
On
Switchset 07
ZONE 1 Source
Selector
Fig. 18B - ZONE 1 Source Selector Switch
