LR6
Only apply voltage to Power Supply Wires.
Fuse
1A
100 - 240 VAC
※ Used when buzzer unit is attached.

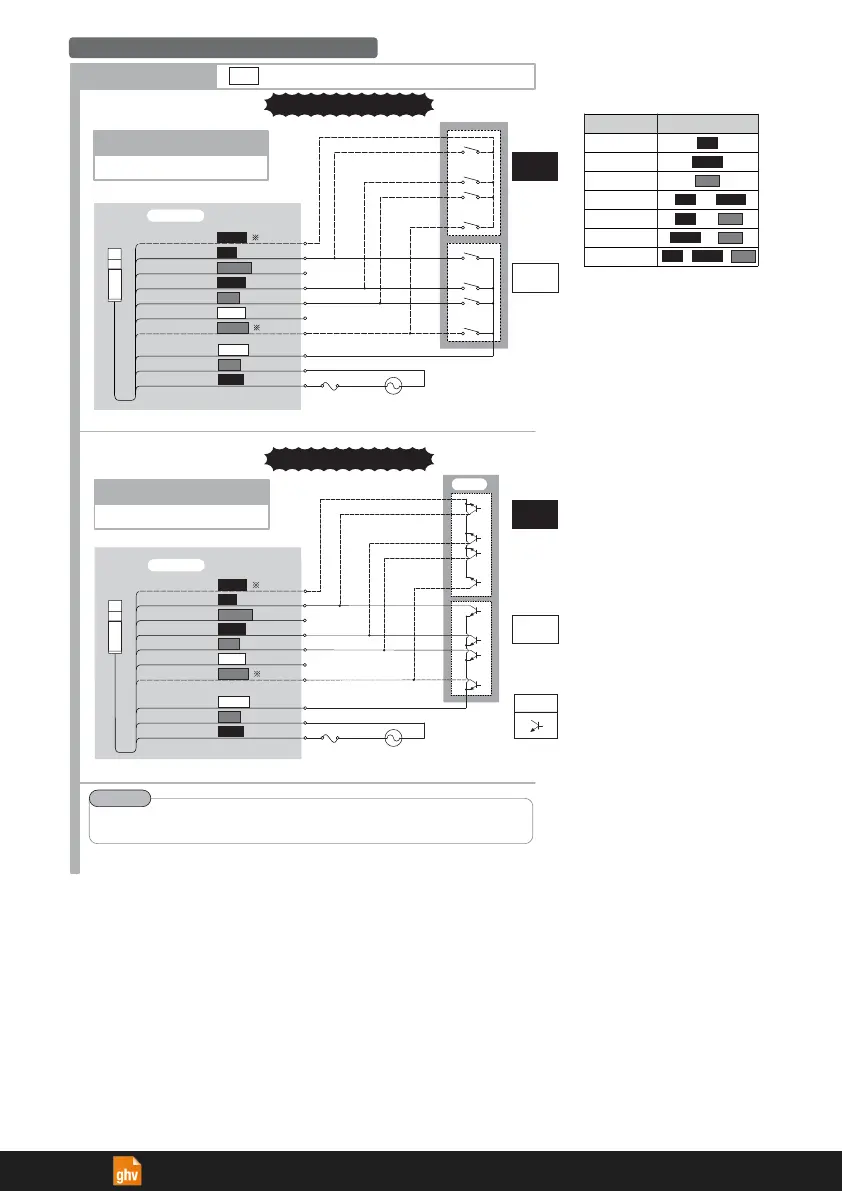

External Contact Classification
Voltage Contact Relay
LED
Red
LED
Amber
LED
Green
LED
Blue
LED
White
Power Supply Wire
Red
Orange
Green
Blue
White
Yellow
Flashing
Common Line
Brown
Buzzer
Power Supply Wire
Purple
Gray
Lighting
Common Line
Black
External
Contact
Flashing/
Buzzer
External
Contact
Lighting/
Buzzer
PLC
LR6
Fuse
1A
100 - 240 VAC
PLC (NPN Transistor)
External Contact Classification
LED
Red
LED
Amber
LED
Green
LED
Blue
LED
White
Power Supply Wire
Red
Orange
Green
Blue
White
Yellow
Flashing
Common Line
Brown
Buzzer
Power Supply Wire
Purple
Gray
Lighting
Common Line
Black
E
C
B
Schematic
Output
Unit B
Output
Unit A
Flashing/
Buzzer
Lighting/
Buzzer
※ Used when buzzer unit is attached.
Only apply voltage to Power Supply Wires.
（
Not used
）
（
Not used
）
（
Not used
）
（
Not used
）
100
-
240 V AC
M2
Product Specifications
Lighting / Flashing / Buzzer (LR6-E-MZ)
LR6-E-MZ Luminous Color
Red
Green
Blue
Blue
Blue
Blue
Red
Red
Green
Green
Green
+
+
+
++
Red
Cyan
LED Color Wiring Color
Green
Yellow
Blue
Purple
Red
White
Point
・When flashing the LR6-E-MZ simultaneously with the LR6-E-R(Z)/Y(Z)/G(Z)/B(Z)/C,
the flashing cycle of the LR6-E-MZ may shift from the other LED units.
