Patlite LR4 - Unit Detachment Method

To Next Page

To Previous Page

PatliteWebsite

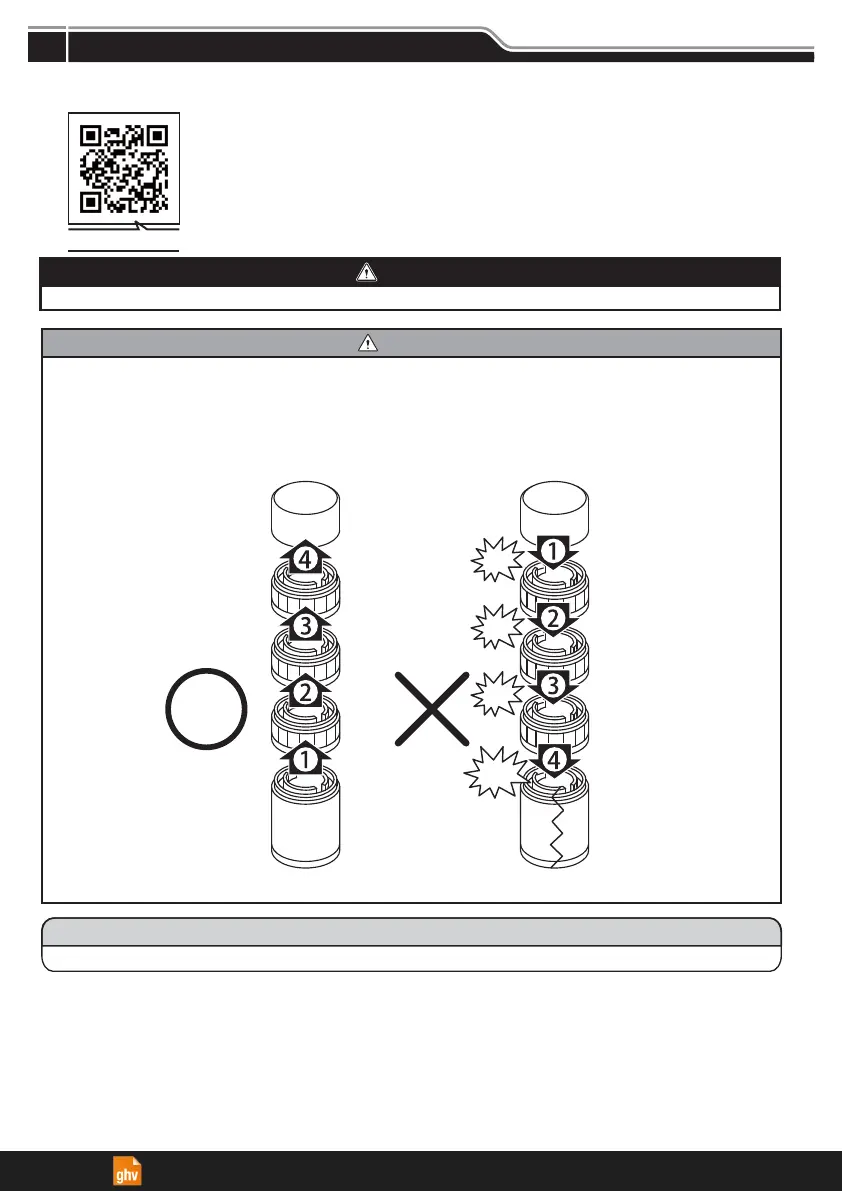

Refer to the following diagrams when detaching the buzzer unit, recombining the LED Unit, etc.

Also, scan the QR Code to see the “How To” video.

Warning

● Be sure the power is disconnected before working on this product.

Caution

● Do not apply excessive strength with each unit or body. Failure to comply may damage the unit.

● Do not touch the connector area or the inside of the body and LED unit. Failure to comply may damage

the unit.

● Be sure to lock each unit securely when attaching. Failure to comply may damage the unit.

● Detach the unit in the following manner. Any other method may result in damaging the product.

Attachment : Attach one unit at a time to the body.

Removal : Firmly hold the bottom section while removing the upper section.

Notice

● The maximum number of attachment units per product are five LED units, plus one buzzer unit.

Unit Detachment Method
