LED Unit
Body
<Locked>
<Unlocked>
■Positioning Mark
<Unlocked>
■
Positioning Mark
<Locked>

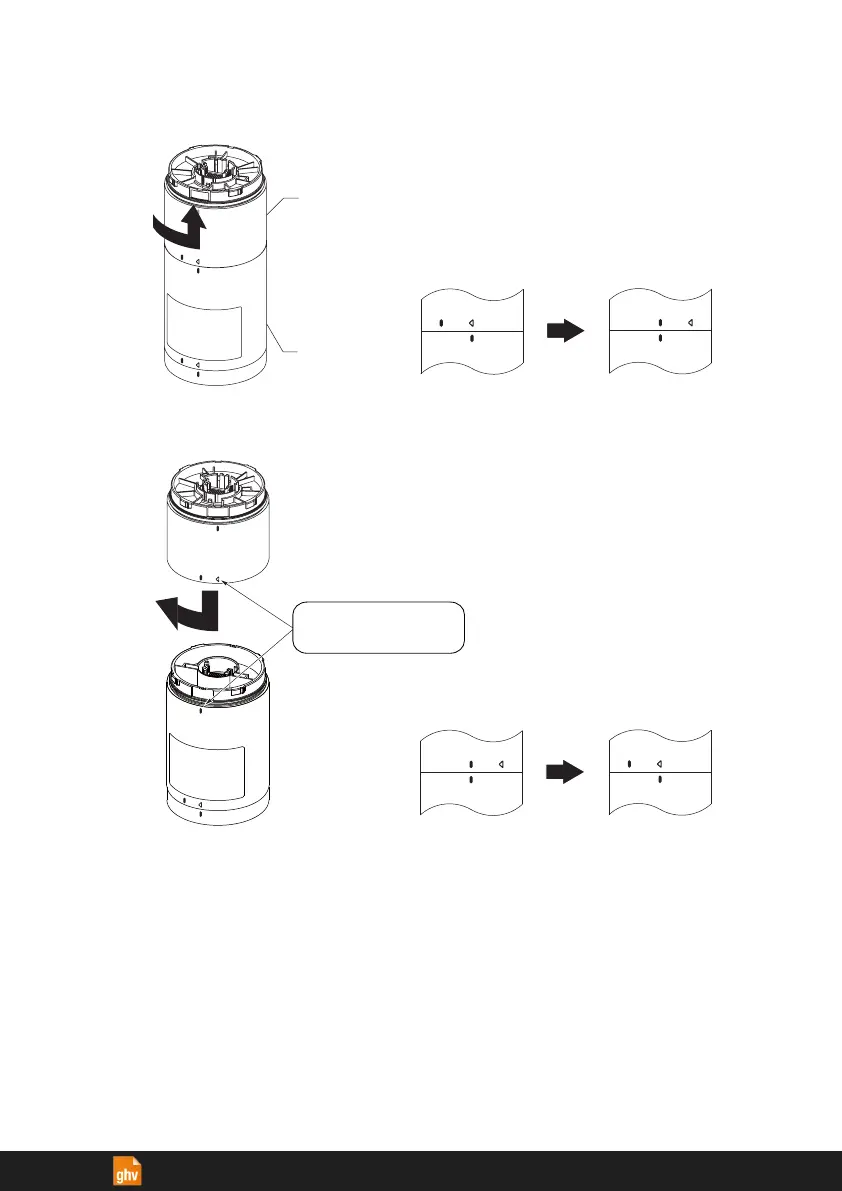

■Removal
While holding the body, turn the LED unit counterclockwise, until
it unlocks, then pull it upwards to remove.
< LED Unit to Body >
■Attachment
Align the Positioning Mark after insertion, then turn the unit
clockwise to lock it.
Align the Positioning Mark
after inserting.
