LED Unit
LED Unit
Buzzer Unit
Body
<Unlocked>
■
Positioning Mark
<Locked>
<Locked>
<Unlocked>
■
Positioning Mark

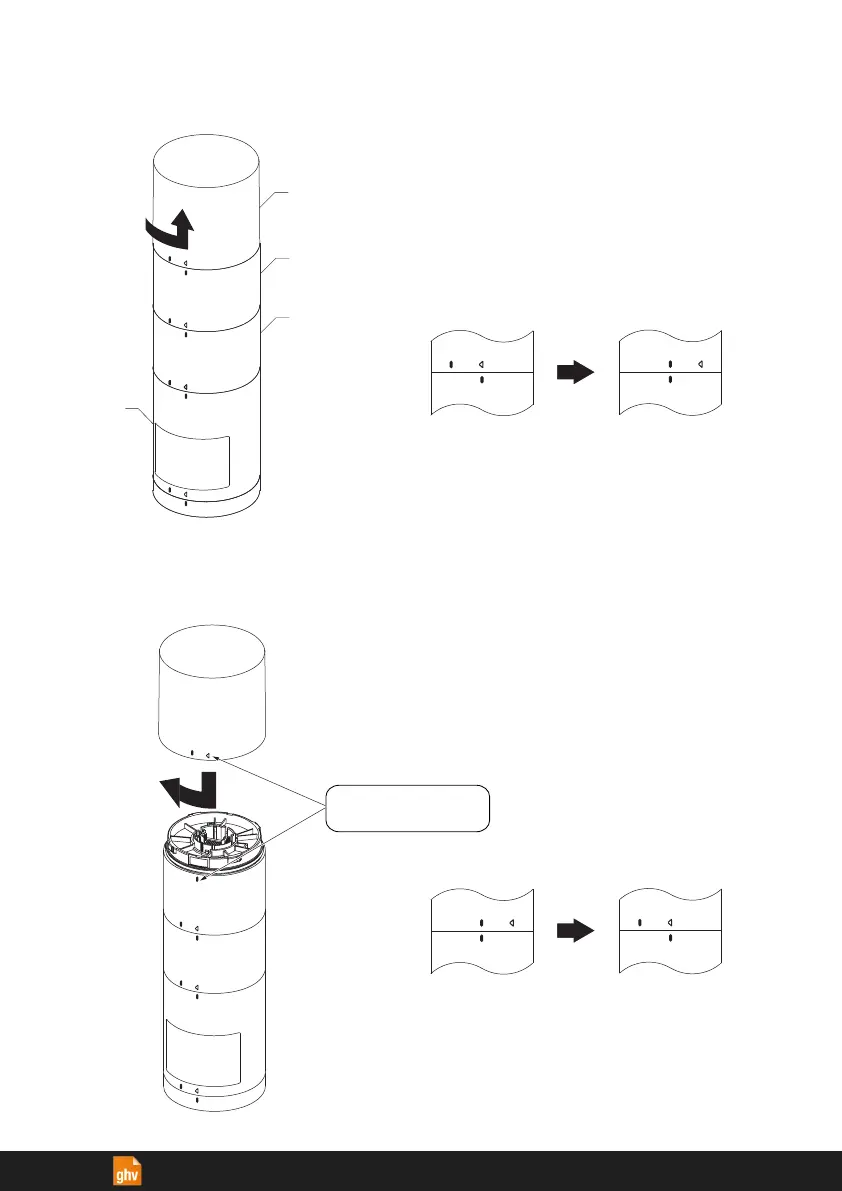

■Removal
While holding LED unit, turn the buzzer unit counterclockwise, until it
unlocks, then pull it upwards to remove it.
< Buzzer Unit to LED Unit >
■Attachment
Align the Positioning Mark after insertion, then turn the unit
clockwise to lock it.
Align the Positioning Mark
after inserting.
