49
Body
Direct Mount Bracket
Body
Direct Mount Bracket

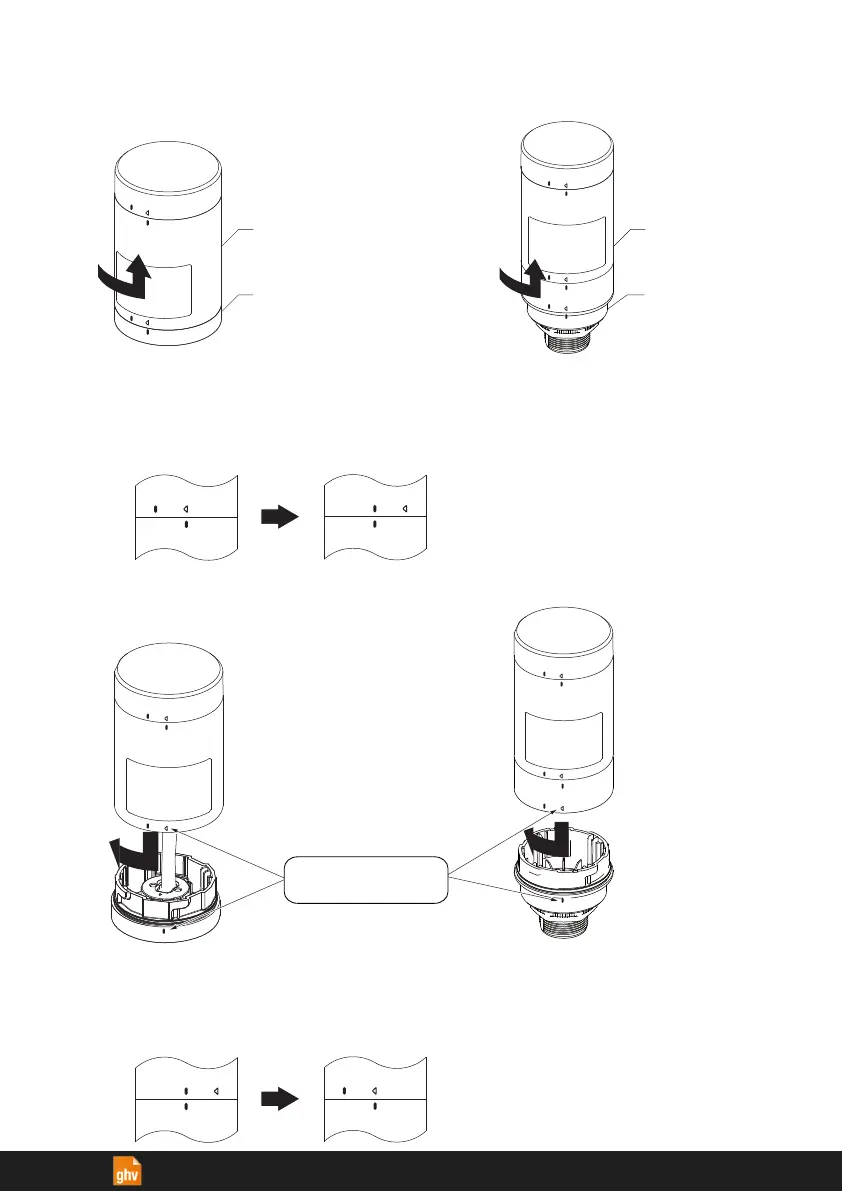

■Removal
<Body Unit>
While holding the direct mount bracket, turn the body
counterclockwise until it unlocks, then pull it upwards to remove.
■Attachment
Align the Positioning Mark after insertion, then turn the unit
clockwise to lock it.
<Unlocked>
■
Positioning Mark
<Locked>
<Locked>
<Unlocked>
■
Positioning Mark
Align the Positioning Mark
after inserting.
Example:LR7-WTNW Example:LR6-WCNW
Example:LR7-WTNW Example:LR6-WCNW
