62
Pole
Pole Waterproof Ring
Circular Bracket
Binding Head Tapping Screw
3×12
2 pcs.
0.8 N
m
Recommended Torque

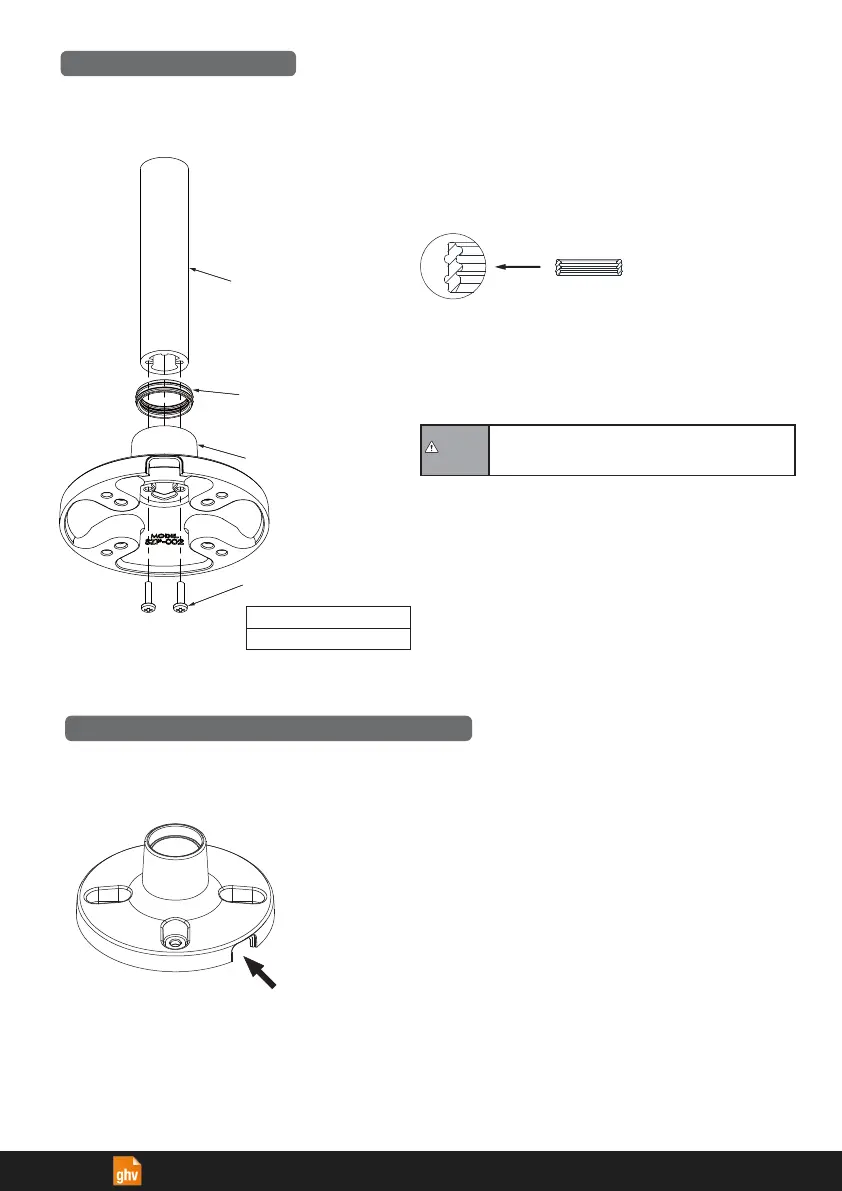

Pole Installation
1. Install the Pole Waterproof Ring in the Circular Bracket.
Check that the 2 ribs are on the outside.
2. Insert Pole into the Circular Bracket. See the figure on the left for
details on the direction of insertion.
3. Tighten the Binding Head Tapping Screws (2 pcs.) from
underneath the Circular Bracket.
This part has perforations to make it possible to run a cable out from the side.
Refer to the diagram below and run the cable where the arrow indicates the outlet.
Running a cable out from the side-hole
Installation using materials other than the specified
accessories is not covered under warranty.
Notice
