64
Pole
Pole Waterproof
Ring
Circular Bracket
Binding Head Tapping Screw
3×12
2 pcs.
Waterproof Packing
(Place it into Circular Bracket)
0.8 N
m
Recommended Torque

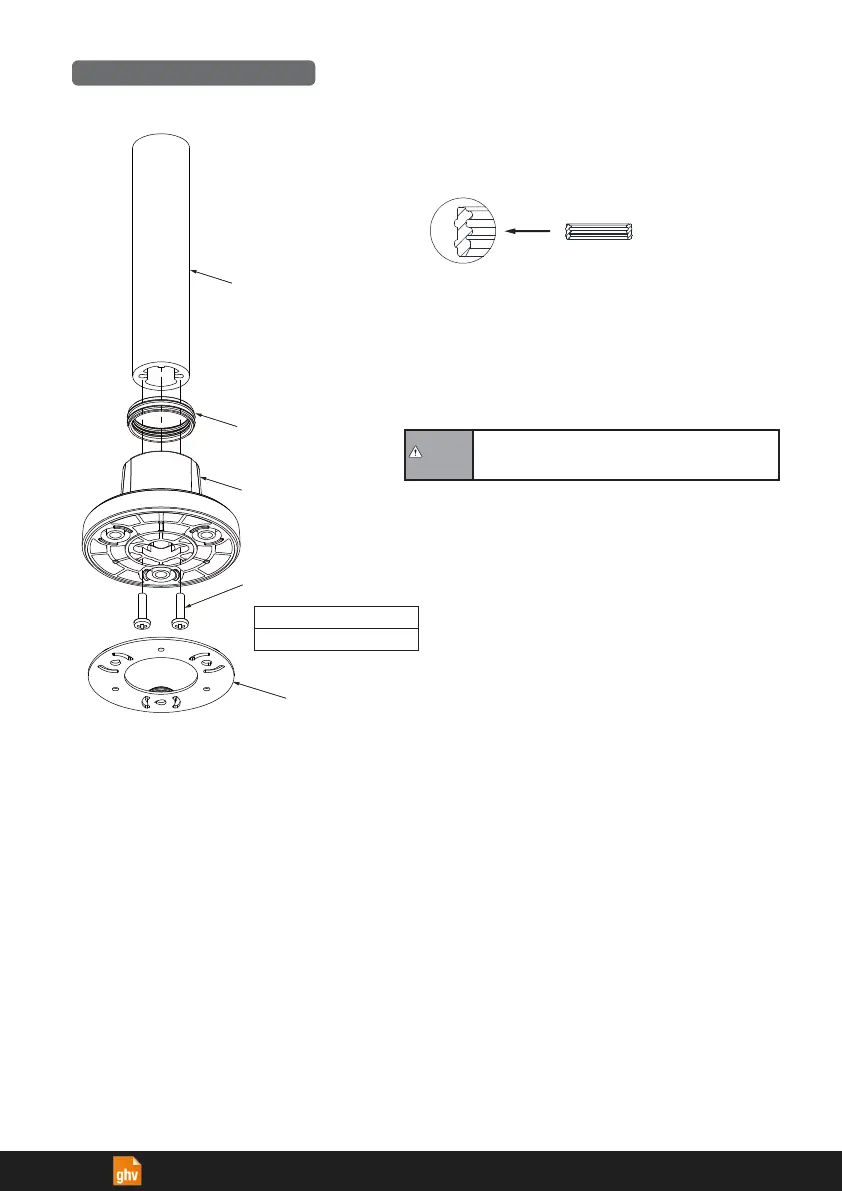

Pole Installation
1. Install the Pole Waterproof Ring in the Circular Bracket.
Check that the 2 ribs are on the outside.
2. Insert Pole into the Circular Bracket. See the figure on the left for
details on the direction of insertion.
3. Tighten the Binding Head Tapping Screws (2 pcs.) from
underneath the Circular Bracket.
4. Put the Waterproof Packing on the bottom of Circular Bracket.
Installation using materials other than the specified
accessories is not covered under warranty.
Notice
