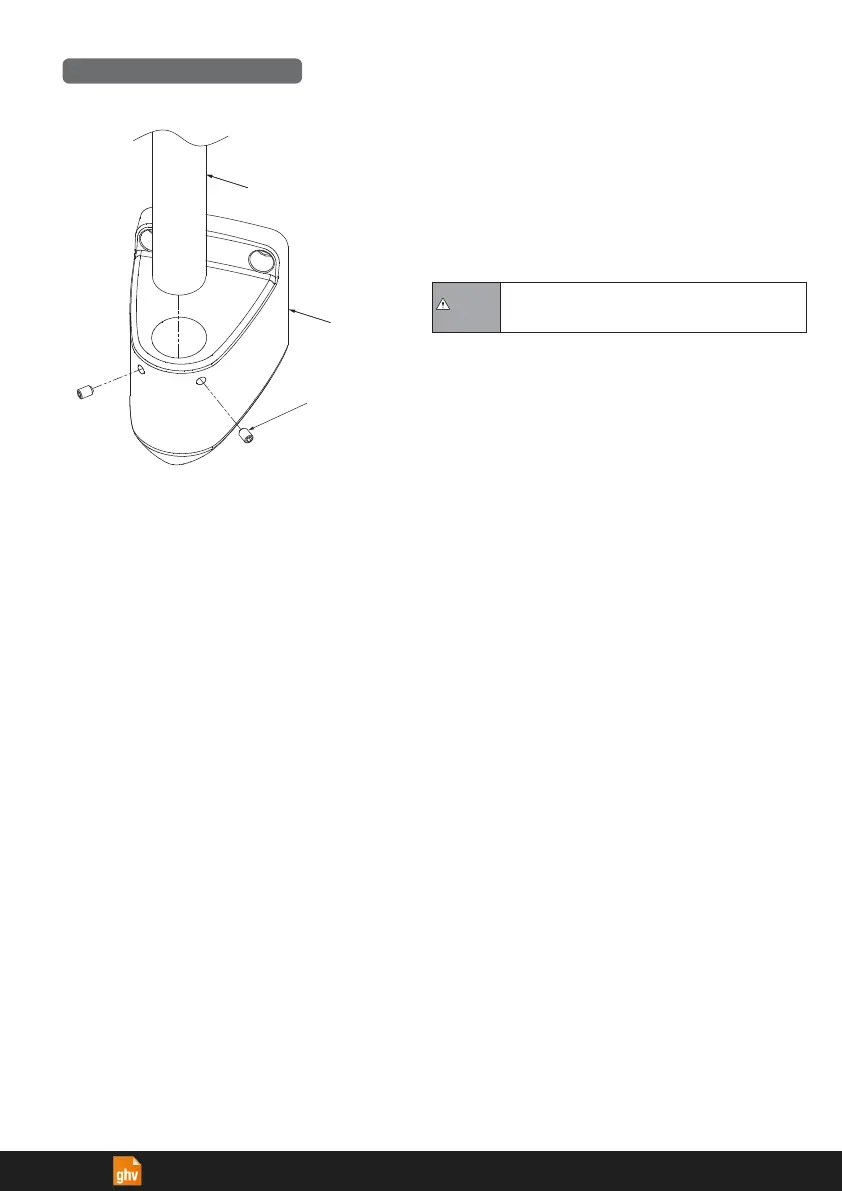

Pole
Hexagon Socket Set Screw
(2 pcs.)
Wallmount
Bracket
74
1. Insert Pole into the Wallmount Bracket. See the figure on the left
for details on the direction of insertion.
2. Secure the Pole with the Hexagon Socket Set Screws (2 pcs.)
on the Wallmount Bracket.
Installation using materials other than the specified
accessories is not covered under warranty.
