Patlite LR4 - Page 73

73
Mounting Hole
(φ6×3places)
Wire Distribution
Hole (φ15)
(Unit: mm)
 Mounting Dimensional Drawing■
SZK-001U
46
80
(25)
Recommended Torque
M5
Screw/Nut
1.4 N m
96.5
62
9
72
55
90°
2-M4
Pole
∅21.7
(35)
SZK-001U
Accessories:
Hexagon Socket Set Screw (2 pcs.)
Wallmount Bracket
Compatible Pole
Specifications
Material
Mounting Location
Model
SZK-001U
Remarks
Mass (Tolerance ±10%)
Indoor Only
ADC12
0.19kg
Protection Rating
IP20 (with product attached)

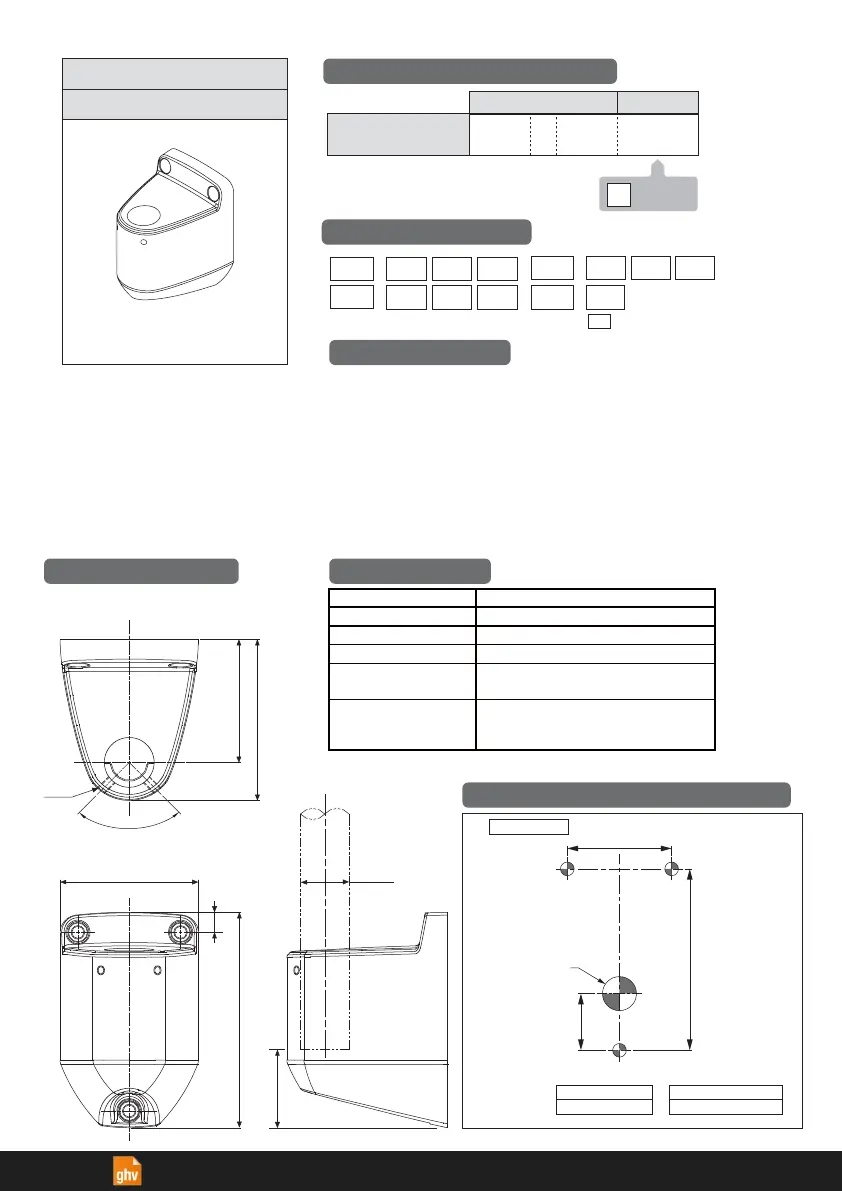

Mounting Dimensional Drawing
Outer Dimensions
※No Accessories
There are no contents of controlled
substances exceeding the threshold
for the RoHS Directive.
（Unit
:
mm
）
-
PJ
LR4
-
PJLR5
,
,
QJ
-
PJ
LR6
QJ
Compatible Models
KT
-
LR7 KT
※
1
※
1
001
Wallmount Bracket
U
SZK -
Model
U
Body Color
Silver
Model Number Configuration
(※1)Requiredpoleisnotincludedwith.
KT
POLE22-0100AN,POLE22-0300AN
POLE22-0500AN,POLE22-0800AN
POLE22-1000AN
POLE22-0100ANK,POLE22-0300ANK
POLE22-0800ANK
POLE22-0100AT,POLE22-0300AT
POLE22-0500AT,POLE22-0800AT
POLE22-1000AT
LJ
LJ
LJ
