Pole
Pole Waterproof
Ring
Binding Head Tapping Screw
3×20 2 pcs.
Recommended Torque
Folding Bracket
0.8 N
m

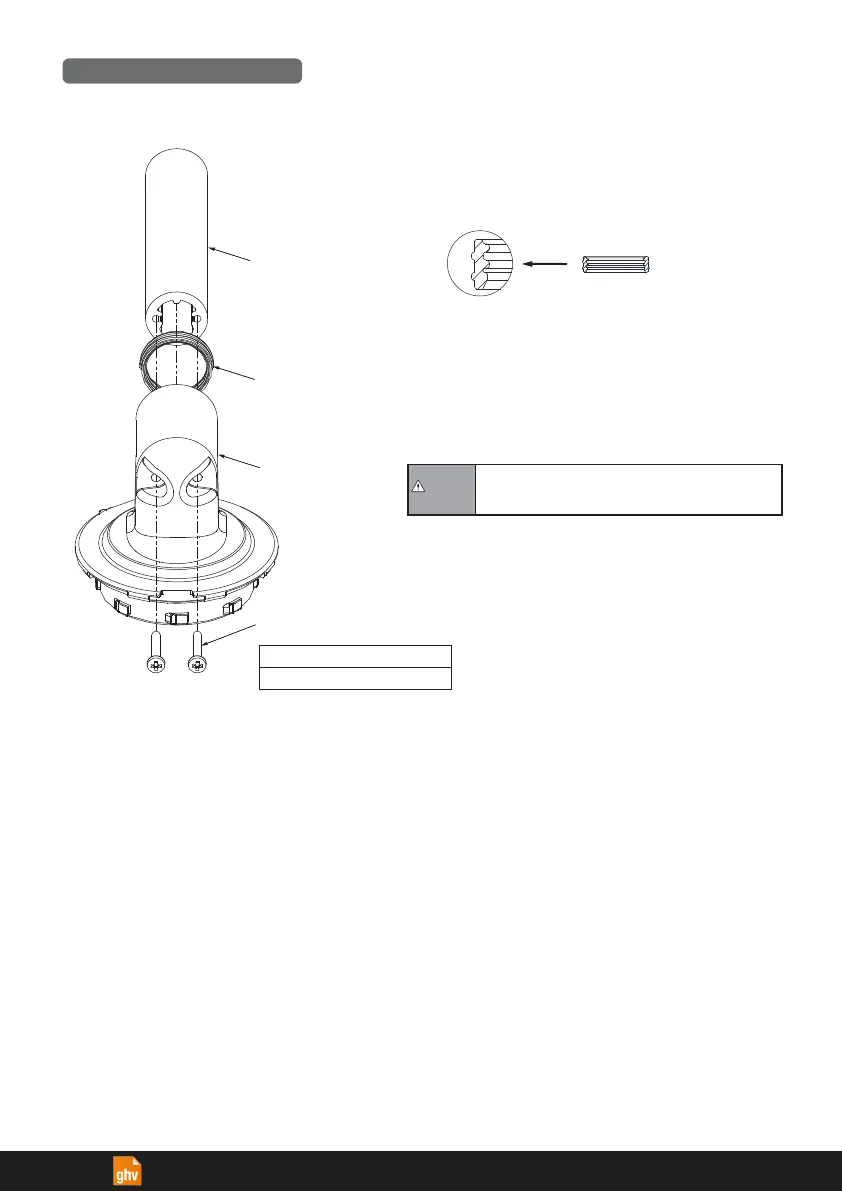

1. Install the Pole Waterproof Ring in the Folding Bracket.
Check that the 2 ribs are on the outside.
2. Insert Pole into the Folding Bracket. See the figure on the left for
details on the direction of insertion.
3. Tighten the Binding Head Tapping Screws (2 pcs.) from
underneath the Folding Bracket.
Installation using materials other than the specified
accessories is not covered under warranty.
Notice
Pole Installation
