SZW-960U
0.6 N
m
Recommended Torque
M4
Screw/Nut
φ40
120°
6
〜
17
φ60
20
8.5
M4
Product Mounting
Hole 3 places
Maximum Board Thickness : 4

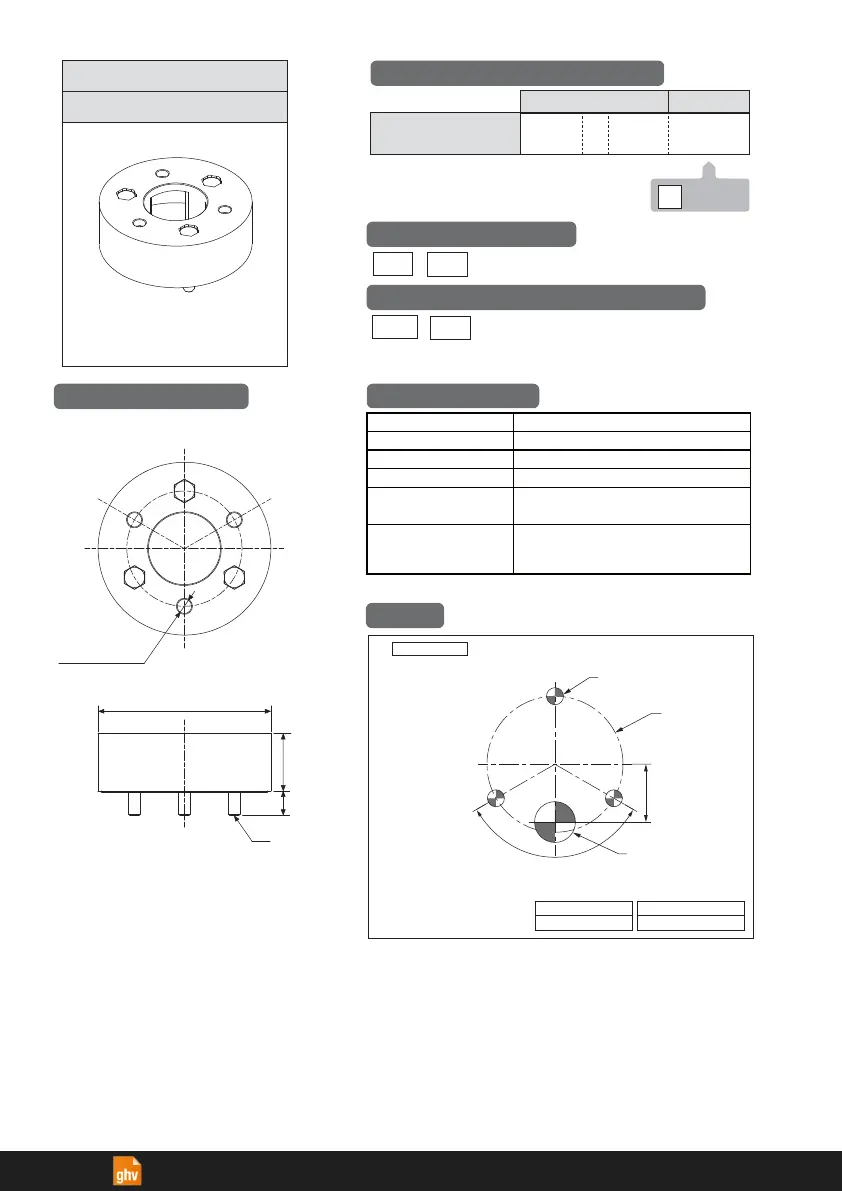

Mounting Dimensional Drawing
(Unit: mm)
Mounting Hole
(φ5×3 places)
Wire Distribution
Hole
（
φ
12
）
取付図
SZW-960U
Compatible Direct Mount Bracket
Accessories:
Hexagon Nut with Flange
(
3 pcs.)
Model Number Configuration
960 U
SZW -
U
Silver
Model
Body Color
Compatible Direct Mount Bracket
-
WJ
LR6
-
W
LME
MountingHoleCompatibleModel
Compatible Models
Specifications
Protection Rating
Mounting Location
Model
Material
SZW-960U
Remarks
Mass (Tolerance ±10%)
Indoor Only
IP65 (with product attached）
AL
0.09kg
※No Accessories
There are no contents of controlled
substances exceeding the threshold
for the RoHS Directive.
Outer Dimensions
（Unit
:
mm
）
