1. CONTENTS
Please make sure the following items are included with your IM15 unattended payment
terminal. If any items are missing, contact your dealer.
1. 1 x IM15 Unattended Payment Terminal
2. 4 x M4 nuts
3. 4 x M4 screws
4. 1 x IM15 Mounting Bracket

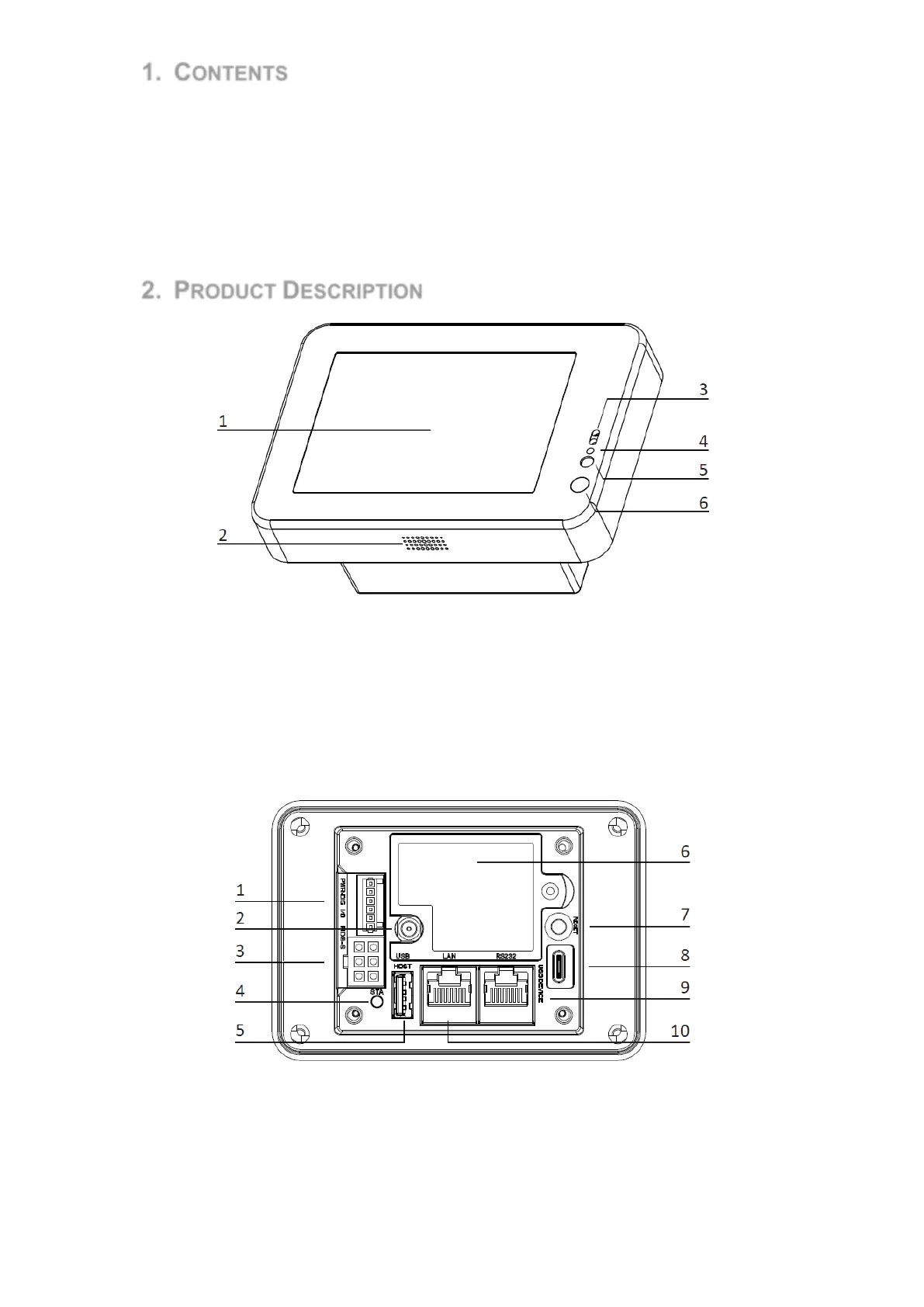

2. PRODUCT DESCRIPTION
Figure 1: front view
1. LCD touchscreen
2. speaker
3. proximity and light detector
4. LED status indicator
5. camera flash LED
6. camera lens
Figure 2: back view
1. Digital IO port
2. 4G antenna connector(Not include SIM card slot for configuration with only
BT/WIFI/NFC or with only NFC)
