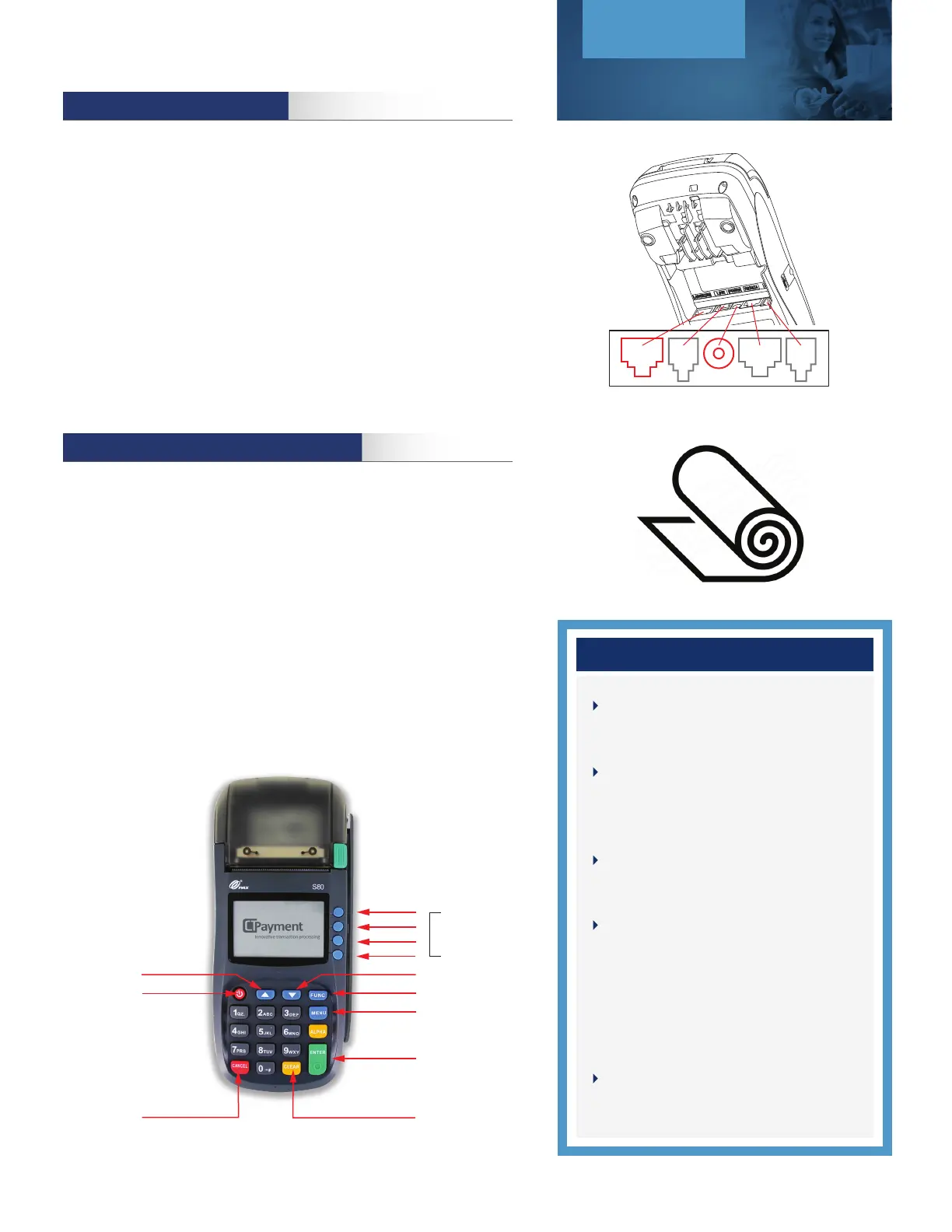

CONNECTING THE TERMINAL
Hold the PAX S80 face down on a table or work place.
Plug the power adapter connector into the S80 “Power” jack (middle).
Plug the PAX S80 power cord into the available electrical outlet or power bar.
Plug the required communication cord(s) into the proper sockets.
Plug the Ethernet cable into the “LAN” socket, and/or plug telephone
line cable into the “LINE” socket.
Switch the terminal on by pressing the Power button.
LOADING & CHANGING THE PAPER ROLL
Press the green paper cover release button and open the paper roll cover.
Place the paper roll in the compartment making sure the paper feeds from
the underside of roll, towards the paper tear bar.
Pull the end of the paper out of the compartment beyond the tear bar and
close paper roll cover.
Menu Layout
Power button is used to switch
terminal on/off.
The PAX S80 menu functions are
arranged in two menus:
Transaction and Administration.
Scroll buttons are used to scroll
through to display menu options.
To access letters on the numeric
keypad, press the key quickly until
the desired letter appears.
Press 0 (zero) twice for space,
Up button for [
•
] and Down
twice for [
•
]
Use yellow Corr button to go back
one step.
Keypad Layout
Set-Up Guide
PAX S80
1
LAN /
LINE
POWER
R5232A
PINPAD
2 Scroll button
4 Menu button
3 Fonction button
5 Enter button
6 Clear button
2 Scroll button
8 Power button
1
7 Cancel buy
F1 Soft button
F2 Soft button
F3 Soft button
F1 Soft button
To Next Page
