Payne PG9MXA - Page 52

52
A00279

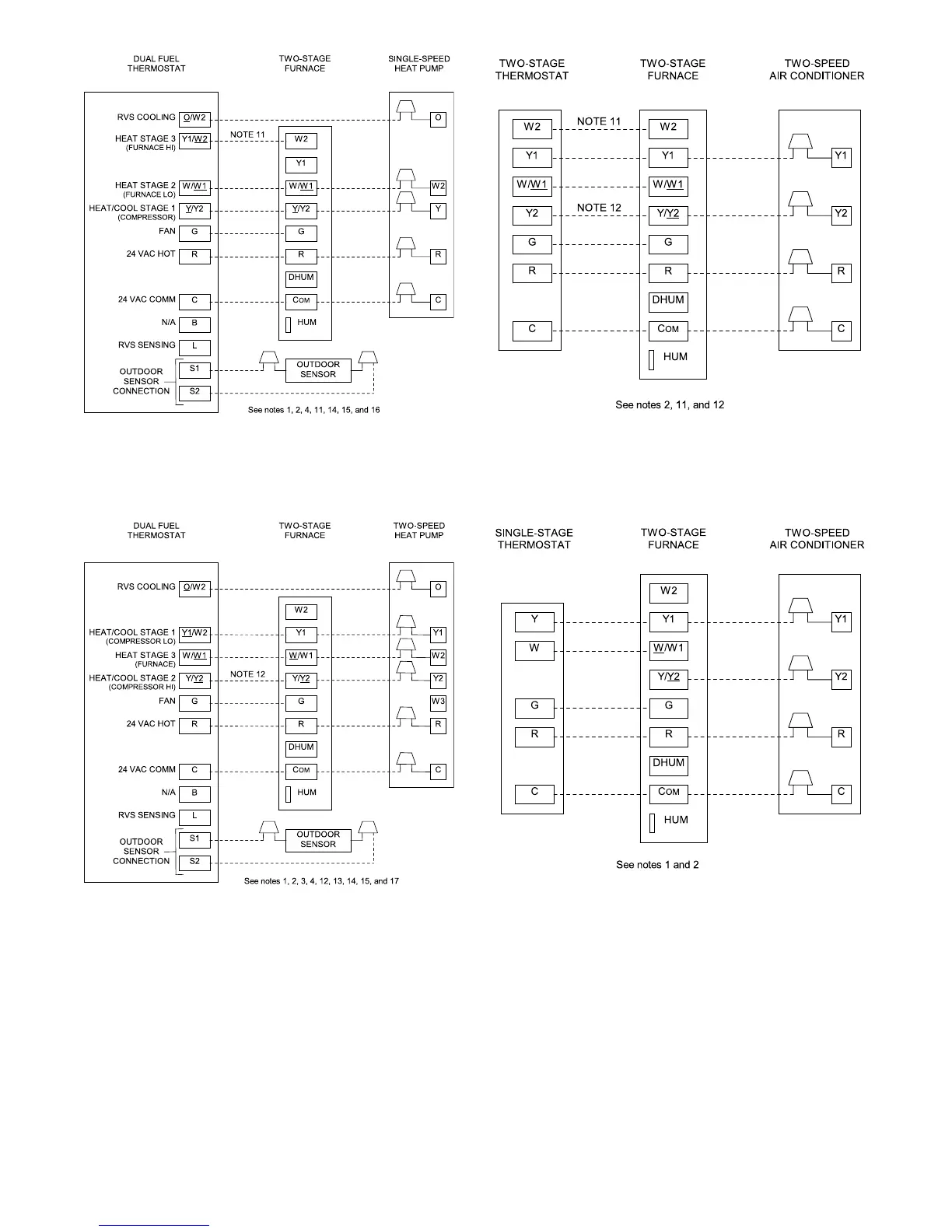

Fig. 54 -- Dual Fuel Thermostat with Two -- Stage Furnace and
Single--Speed Heat Pump
A00280
Fig. 55 -- Dual Fuel Thermostat With Two--Stage Furnace
and Two--Speed Heat Pump
A00281
Fig. 56 -- Two-Stage Thermostat With Two-Stage Furnace
and Two-Speed Air Conditioner
A00282
Fig. 57 -- Single-Stage Thermostat With Two-Stage Furnace
and Two-Speed Air Conditioner
