Install the Processor
Digital Audio Extension Bracket
This bracket has two RCA jacks for digital audio in and digital
audio out, and an auxiliary jack for a Stereo Line-in device.

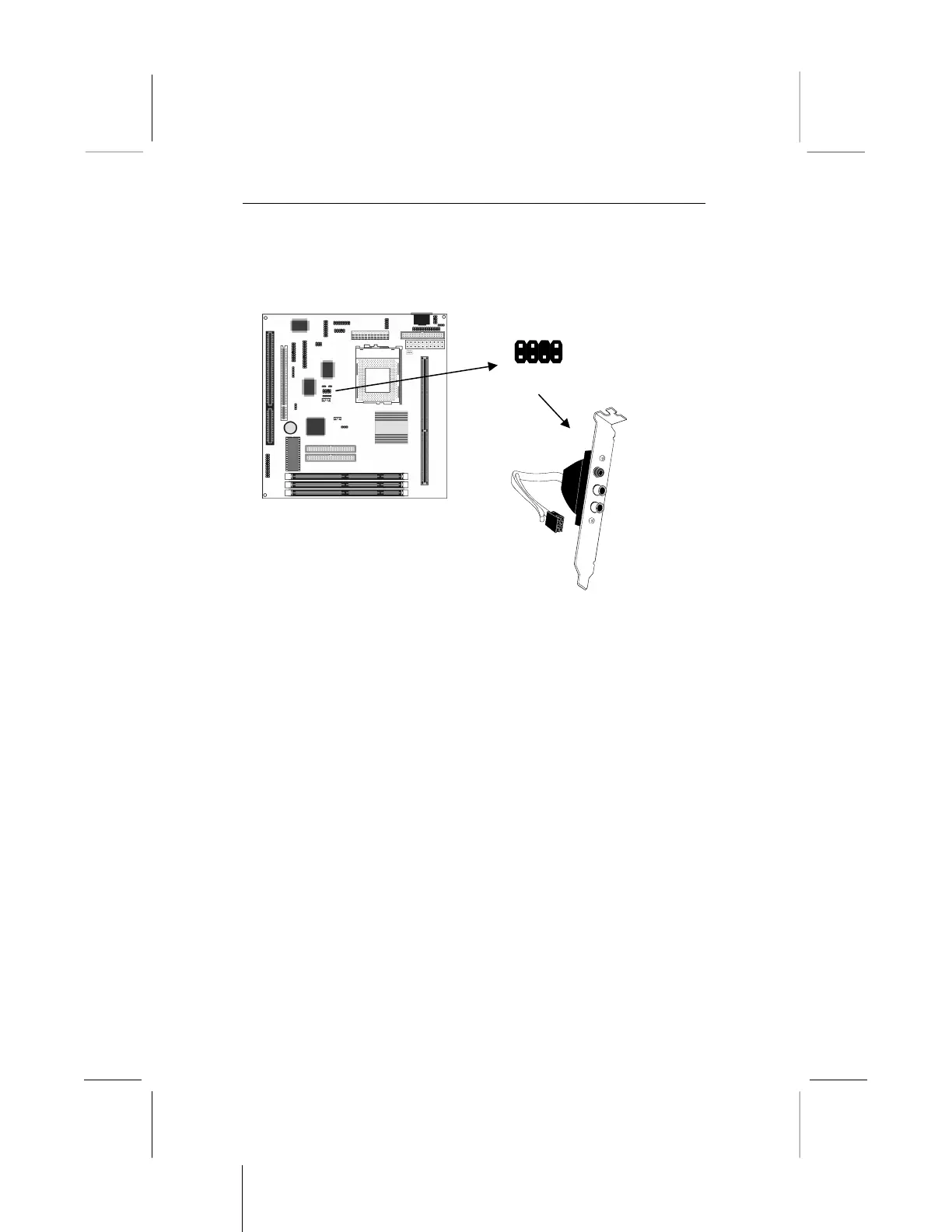

1. On the mainboard, locate the J4 SPDIF header for this bracket.
2. Plug the cable from the bracket into the J4 SPDIF header.
3. In the system chassis, remove a blanking plate from one of the
expansion slots and install the extension bracket in the slot.
Use the screw that held the blanking plate in place to secure
the extension bracket.
Note: If you install the Digital Audio Extension Bracket, you
cannot use the Internal SPDIF/In header (See Internal Sound
Connections later in this chapter).
