© PCE Instruments
4

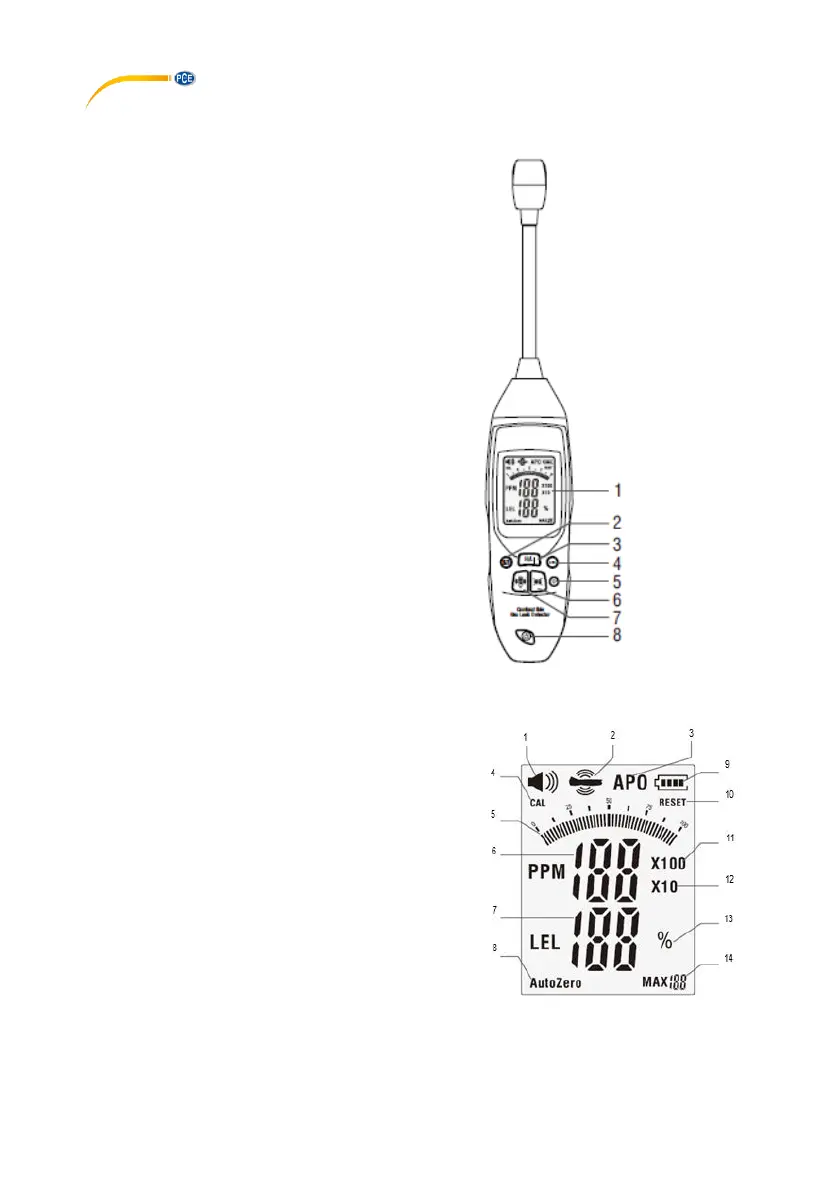

6 Device and display description
1 - LC display
2 Auto Zero
3 Sensitivity high / low
4 Auto Power Off
5 Display backlight
6 Audible alarm on / off
7 Vibration alarm on / off
8 - Meter on / off
1 Audible alarm
2 Vibration alarm
3 Automatic Power Off APO
4 Calibration
5 Bar graph
6 Concentration display
7 LEL display
8 Automatic zero
9 Battery level
10 Factory settings
11 Sensitivity high
12 Sensitivity low
13 LEL reading
14 Maximum reading

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the PCE Instruments PCE-GA 12 and is the answer not in the manual?

PCE Instruments PCE-GA 12 Specifications

General IconGeneral
Gases DetectedO2, CO, H2S, LEL
O2 Resolution0.1% Vol
CO Measuring Range0 ... 1000 ppm
CO Resolution1 ppm
H2S Measuring Range0 ... 100 ppm
H2S Resolution0.1 ppm
LEL Measuring Range0 ... 100 % LEL
LEL Resolution1% LEL
AlarmVisual, Audible, Vibration
Power Supply3.7 V / 1800 mAh lithium-ion battery
Dimensions135 x 67 x 35 mm / 5.3 x 2.6 x 1.4"
WeightApprox. 200 g
O2 Measuring Range0 ... 30 % vol
Operating Temperature-20 ... 50 °C
Operating Humidity15 ... 95 % RH, non-condensing
Humidity10 ... 95 % RH (non-condensing)
