INSTRUMENTATION
Boat manufacturers install many different types of
instrumentation on boats. Become familiar with the
instrumentation on your boat and be aware of abnormal
operating conditions. The following is a brief explanation
of typical instrumentation found on most boats:
1. Tachometer - indicates the engine RPM
(revolutions per minute)
2. Water Temperature Gauge - indicates the engine
coolant temperature
3. Oil Pressure Gauge - indicates the engine oil
pressure
4. Voltmeter - indicates the battery voltage and
charging system voltage
5. Hour Meter - indicates the engine operating time
6. Fuel Level Gauge - indicates the fuel tank level
7. Malfunction Indicator Lamp (MIL) or Check
Engine Lamp - indicates a problem with the
engine control system
OPERATING INSTRUCTIONS - 5
CHECK
ENGINE
TACH
0
10
20
30
60
50
40
E
FUEL
1/2
F
TEMP
200
170
100
80
40
0
OIL
VOLT
10
16
13

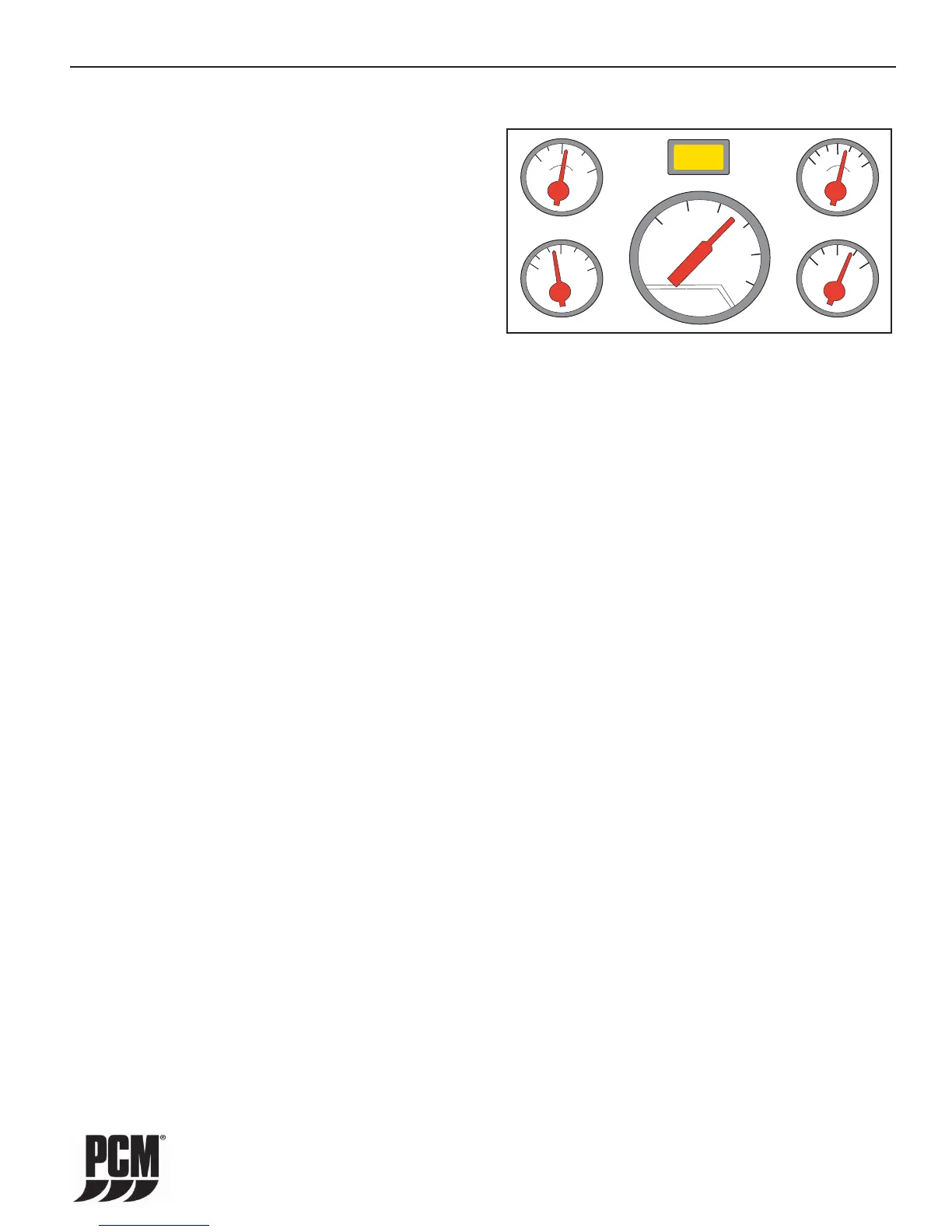

Figure 5-1 Typical Instrument Panel
