L510010-11

WATER FLOW DIAGRAMS - 15

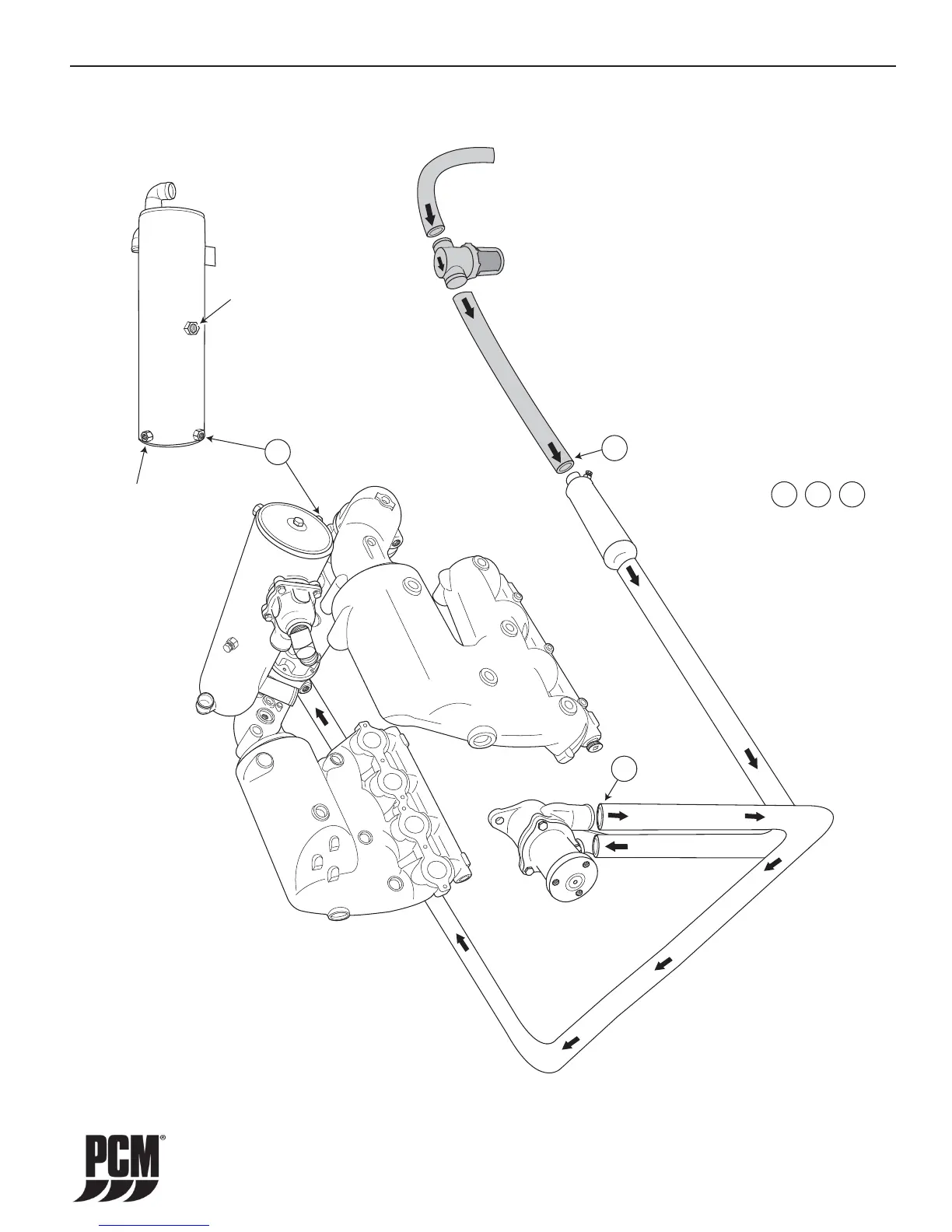

Figure 15-9 Direct Drive Full-Fresh ZR409 CES / ZR450 CES

Note: This diagram is for illustration purposes

only. The actual routing and/or shape of the

hoses may vary slightly depending on installation.

Raw Water

Drain/Zinc

Anode

Shaft Seal

Fitting

Fresh Water

Drain

Drain Locations

- Transmission Cooler - Remove Inlet Hose

- Raw Water Pump - Remove Outlet Hose

- Heat Exchanger - Remove Drain Plug/Zinc Anode

Heat Exchanger - Rear View
