L510010-11

WATER FLOW DIAGRAMS - 15

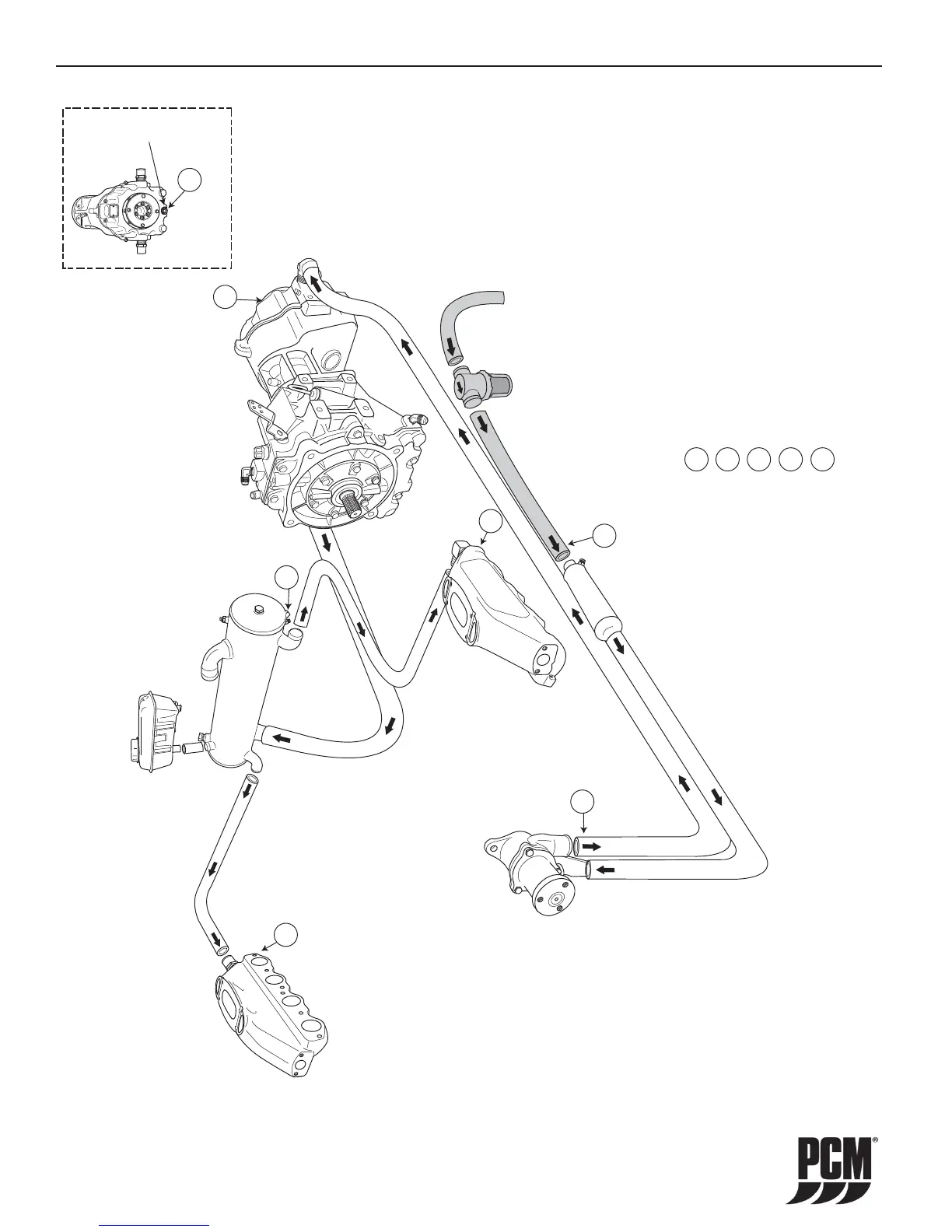

Figure 15-8 Vee Drive Fresh Water Cooling System ZR409 / ZR450

PLEASUREC

ENGI

NEG

POWERP

1.48

MADE

USA

Raw Water

Drain Plug

1/2”

Square

PCM V-Drive

Note: This diagram is for illustration purposes

only. The actual routing and/or shape of the

hoses may vary slightly depending on installation.

Drain Locations

- Transmission Oil Cooler - Remove Inlet Hose

- Raw Water Pump - Remove Outlet Hose

- Heat Exchanger - Remove Drain Plug/Zinc Anode

- Exhaust Manifolds - Remove Drain Plugs

- VDrive - Remove Drain Plug
