Stereo encoder board

15W CyberMaxFM+ units utilize our SE5000 DSP+ and SE3000 AN+ stereo encoders

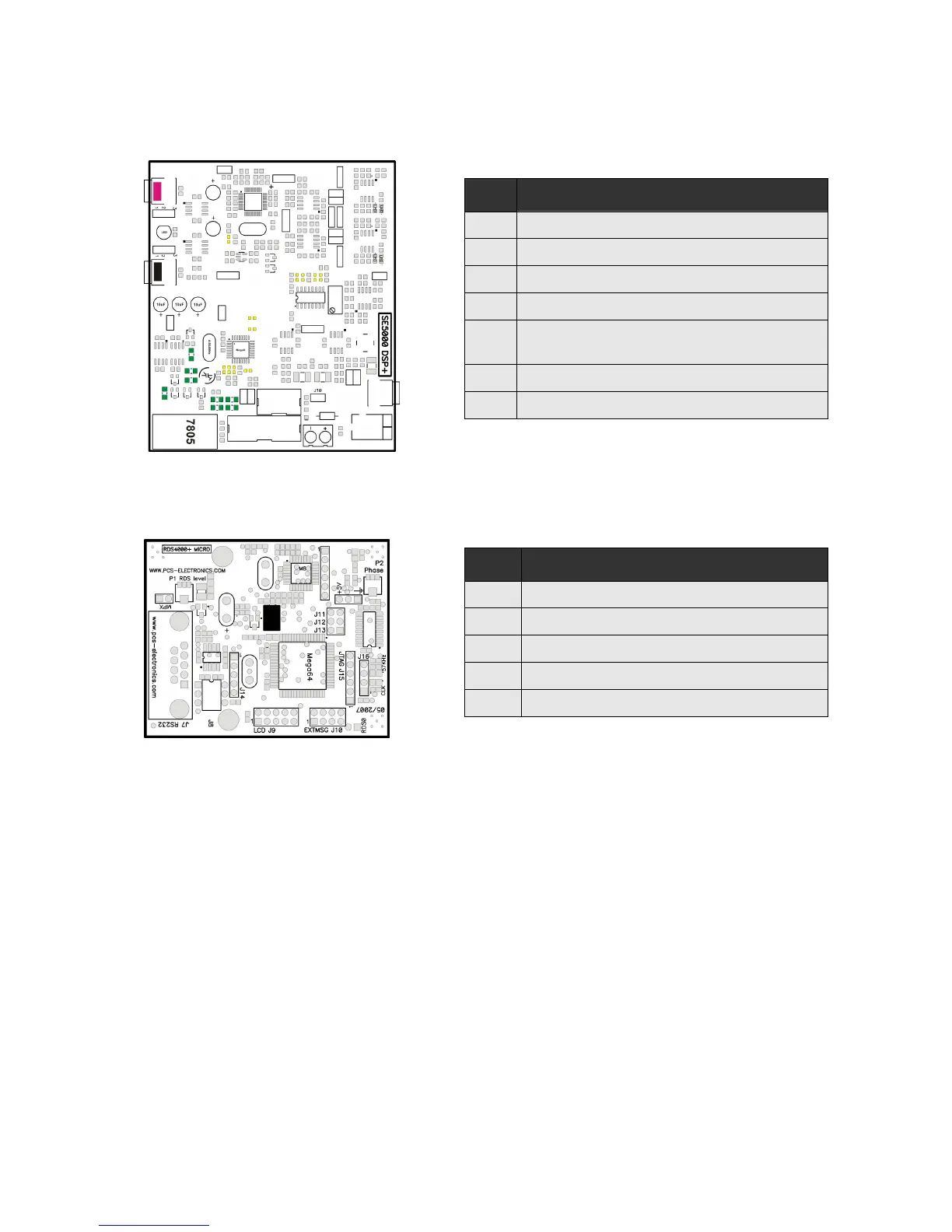

Fig. 5: SE5000 DSP+ stereo encoder board layout

RDS encoder board

15W CyberMaxFM+ units utilize our RDS MAX 4000+ and RDSMAX4000+ mini RDS encoders

Fig. 6: RDSMAX4000+ rds encoder board layout

Where can I find more info?

Separate extensive manuals for all of the built-in components are available on our website. We have a section in our forum

dedicated to all of the manuals and you can discuss each of the manuals with other forum members here:

http://www.pcs-electronics.com/phpBB2/viewforum.php?f=33

Ref Function

J1-2 Audio Inputs

J3-4 Pre-emphasis selection

J7 MPX out, going to FM exciter audio input

J10 Mode select, don’t install in this configuration

J11 Maxlink 6-pin cable going to MAX PRO 3000+

exciter

J12 Install to reduce pilot level slightly

J14 Stereo/mono selection, do not install jumper here

Ref Function

P1 RDS level

P2 RDS carrier phase relationship to stereo pilot

J11-13 Baud speed selection, leave at default

CLK RDS clock led, should blink at around 1Hz

57KHz

PLL lock led, should be off in stereo mode
